SMC Power/ Hybrid Connector

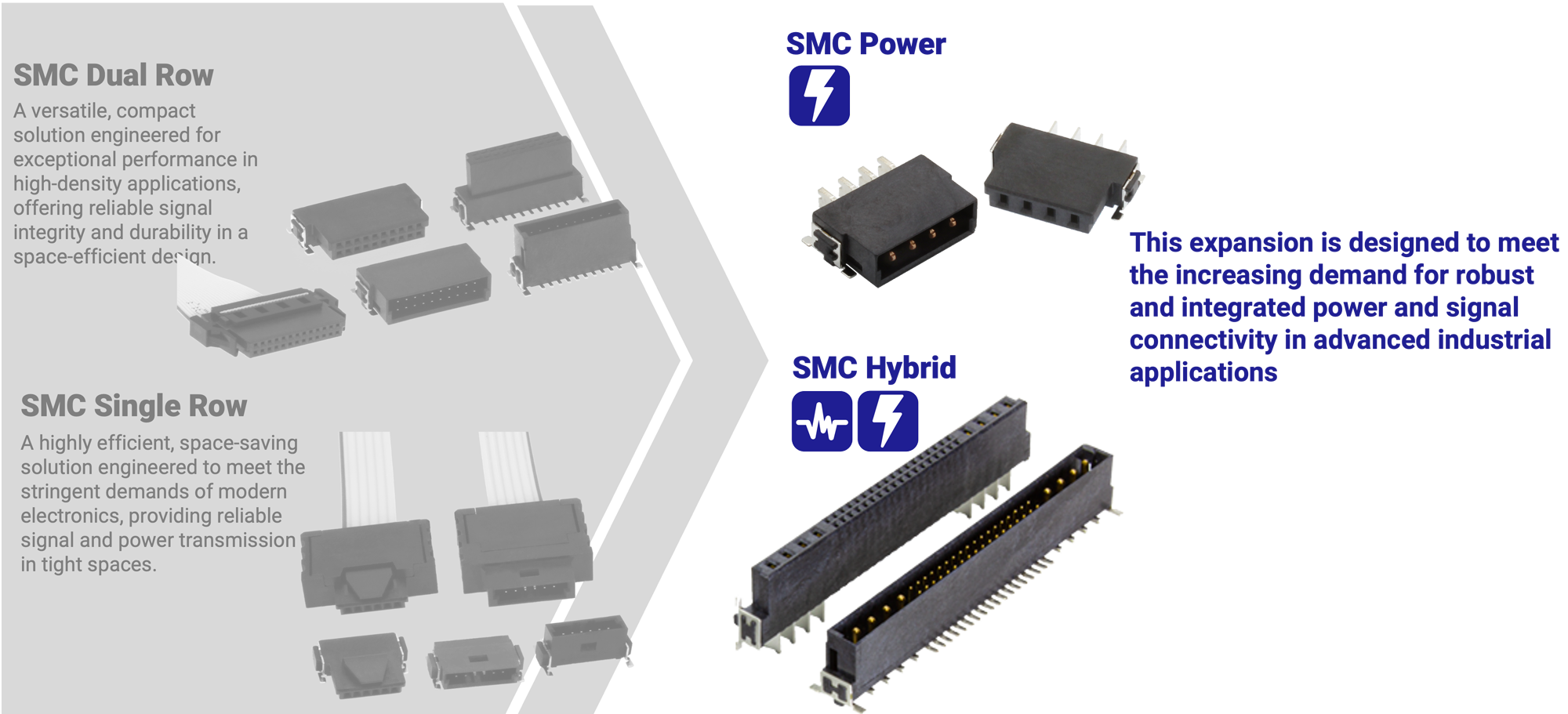

The SMC Power and SMC Hybrid connectors expand the SMC product family by building on the proven strengths of the existing 1.27 mm pitch SMC Dual and Single Row series—compact size, mechanical robustness, and signal reliability.

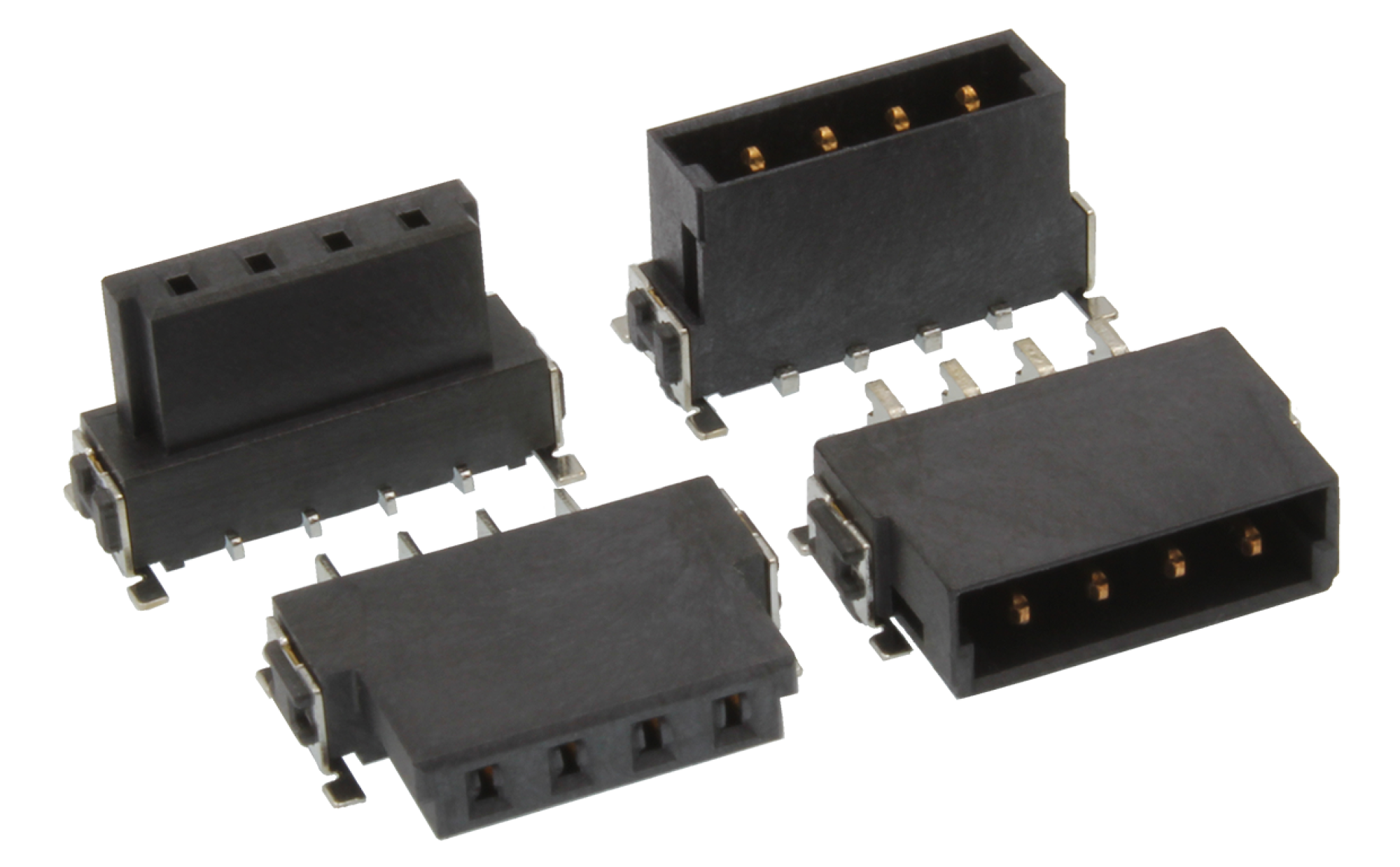

- The SMC Power variant, with a 2.54 mm pitch, supports up to 24 A per contact, offering a high-current solution ideal for power distribution in space-constrained environments.

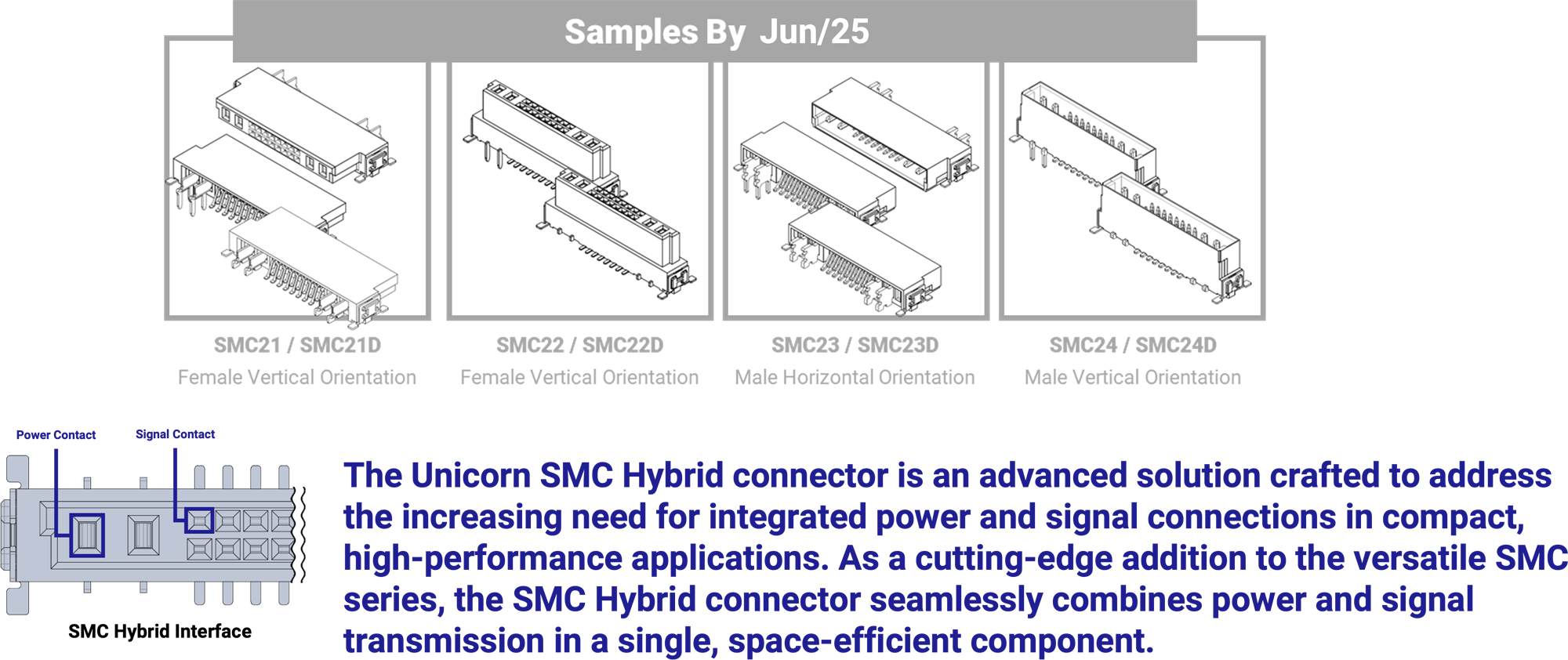

- The SMC Hybrid integrates 2.54 mm power contacts and 1.27 mm signal contacts within a single housing, enabling simultaneous transmission of power and signal while minimizing PCB footprint.
Together with the expanded SMC product family delivers a scalable and high-performance interconnect solution for a wide range of board-to-board and board-to-cable applications.

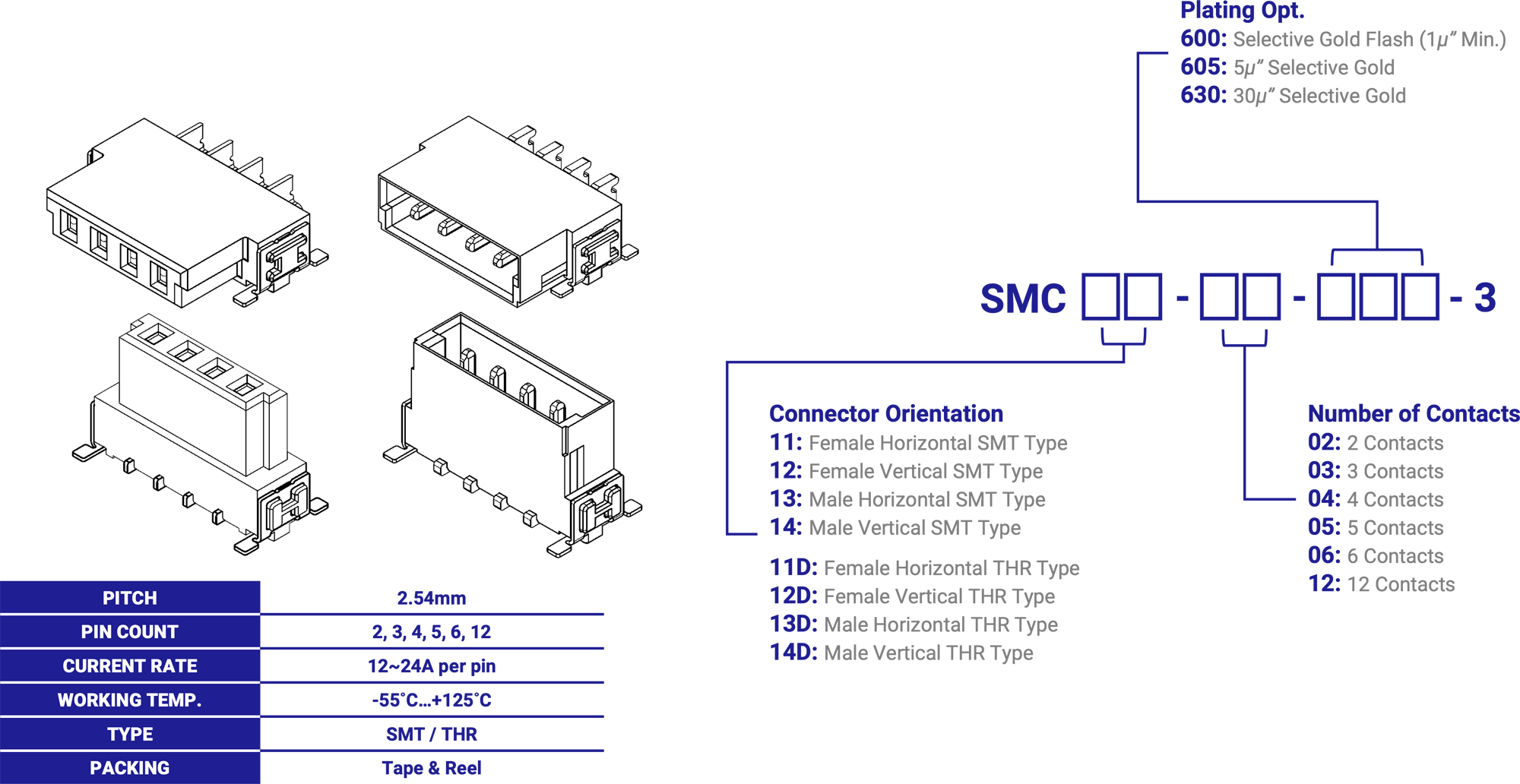

SMC Power

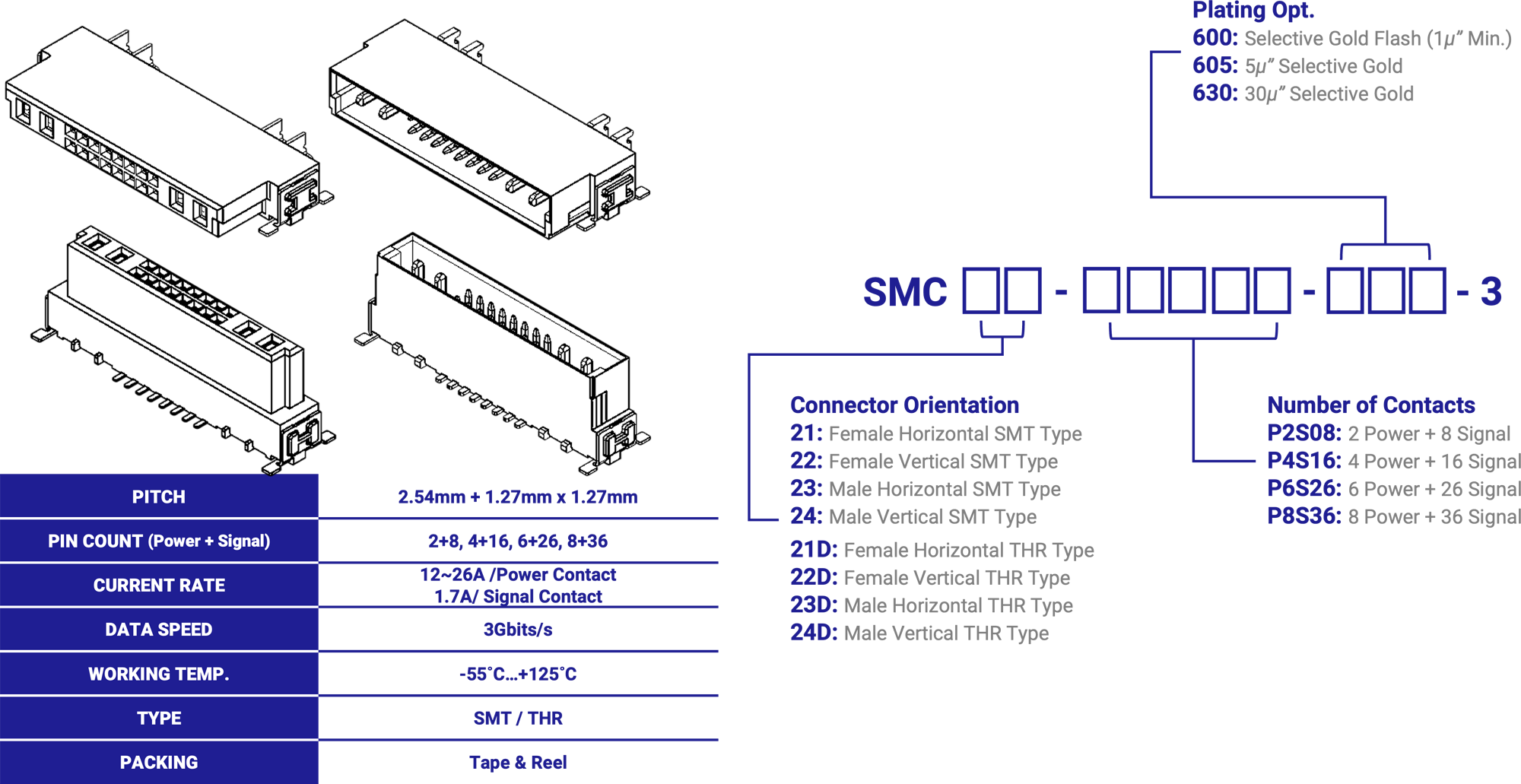

SMC Hybrid

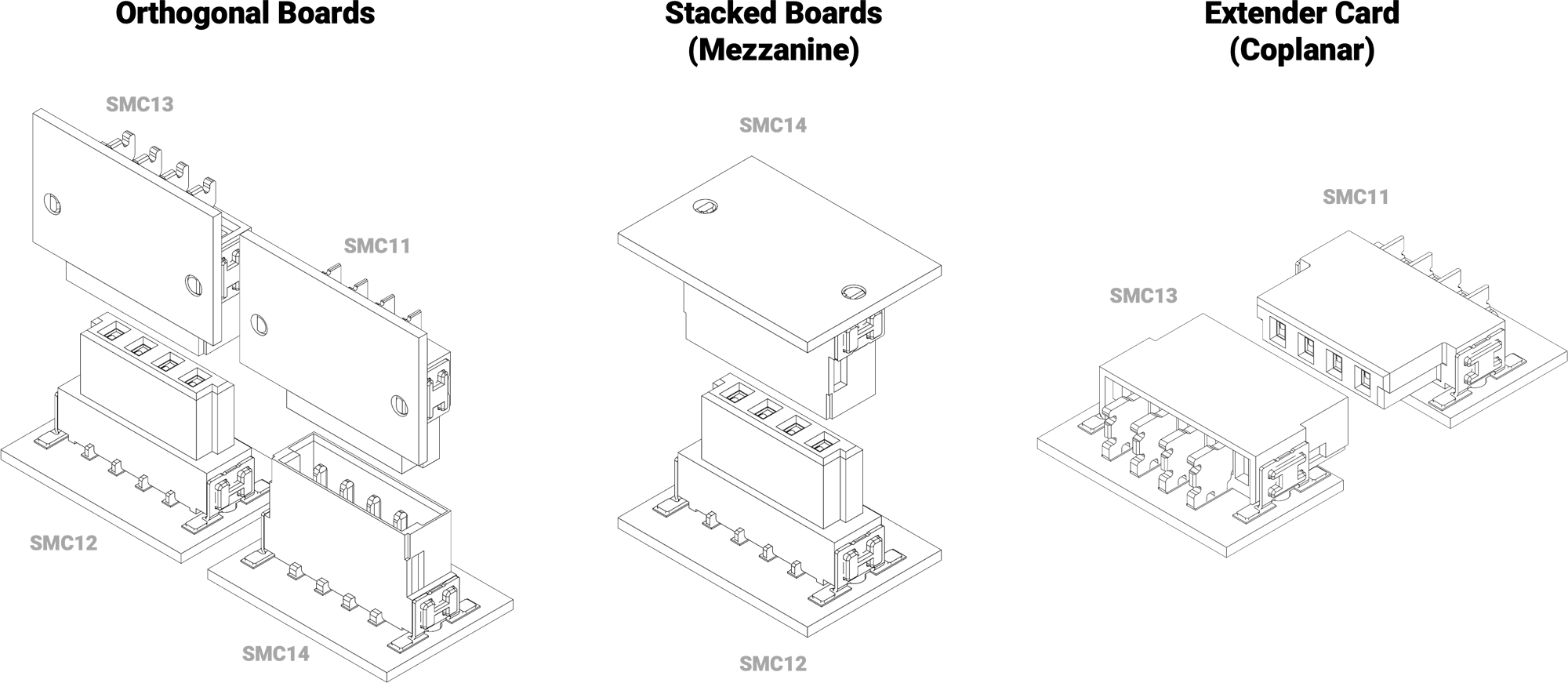

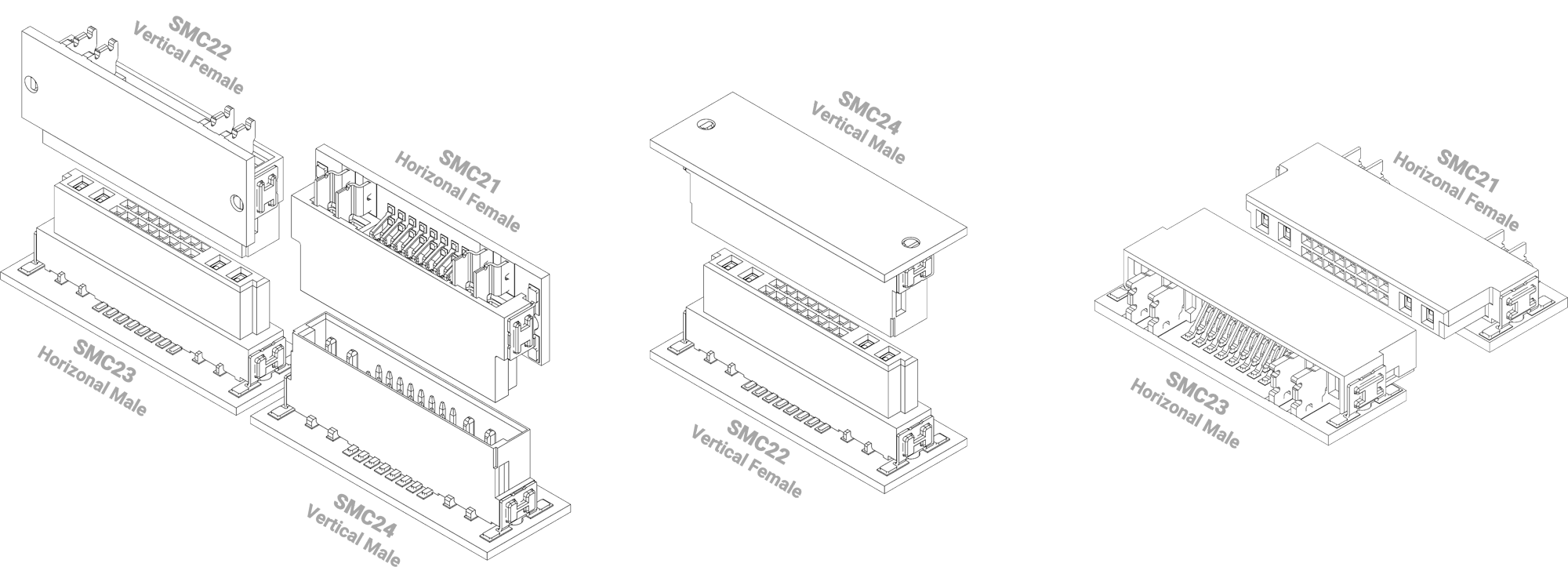

SMC Power/ Hybrid Board to Board Configurations
Both SMC Power and SMC Hybrid are available in horizontal and vertical orientations, offering four different mating configurations to accommodate varying stacking heights and layout requirements.
Please Contact Us For More Information
We’re excited about the possibilities our expanded SMC product family can bring to your next design. Whether you’re looking for compact signal connectors, high-current solutions, or a space-saving hybrid—we’re here to support you every step of the way.
We truly look forward to the opportunity to work together and create something great with you!
