HOME PRODUCT 0.5mm Pitch USB Type C Power Transfer UTC234- USB2.0 Receptacle Top Mount SMT Type
PRODUCTS

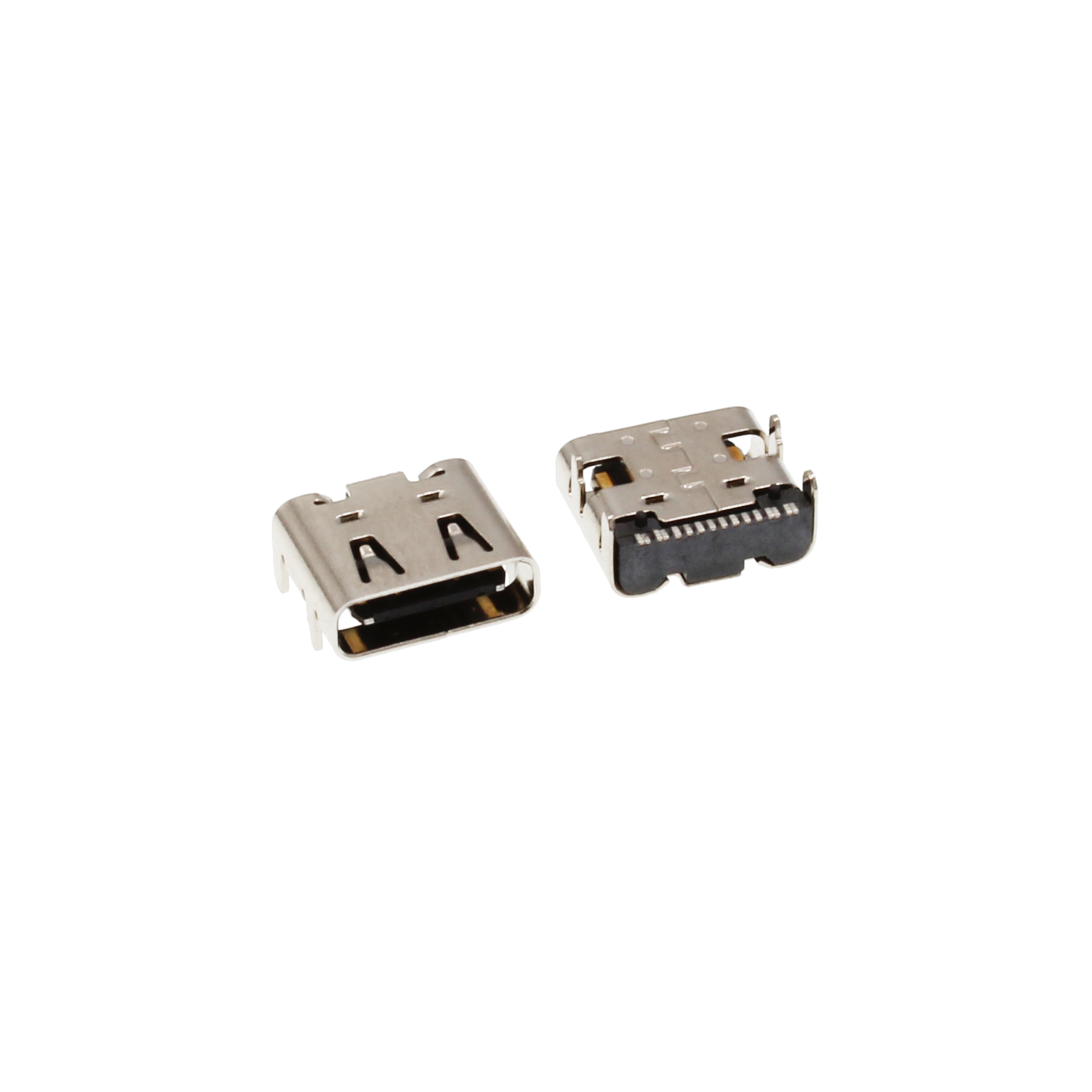

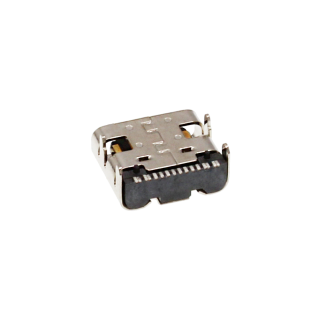

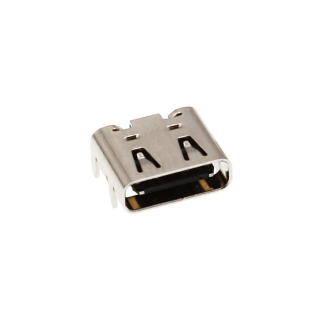

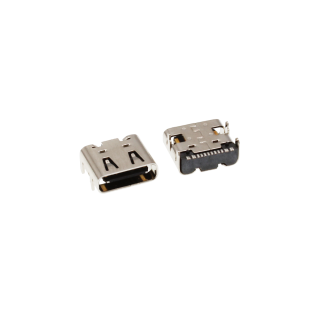

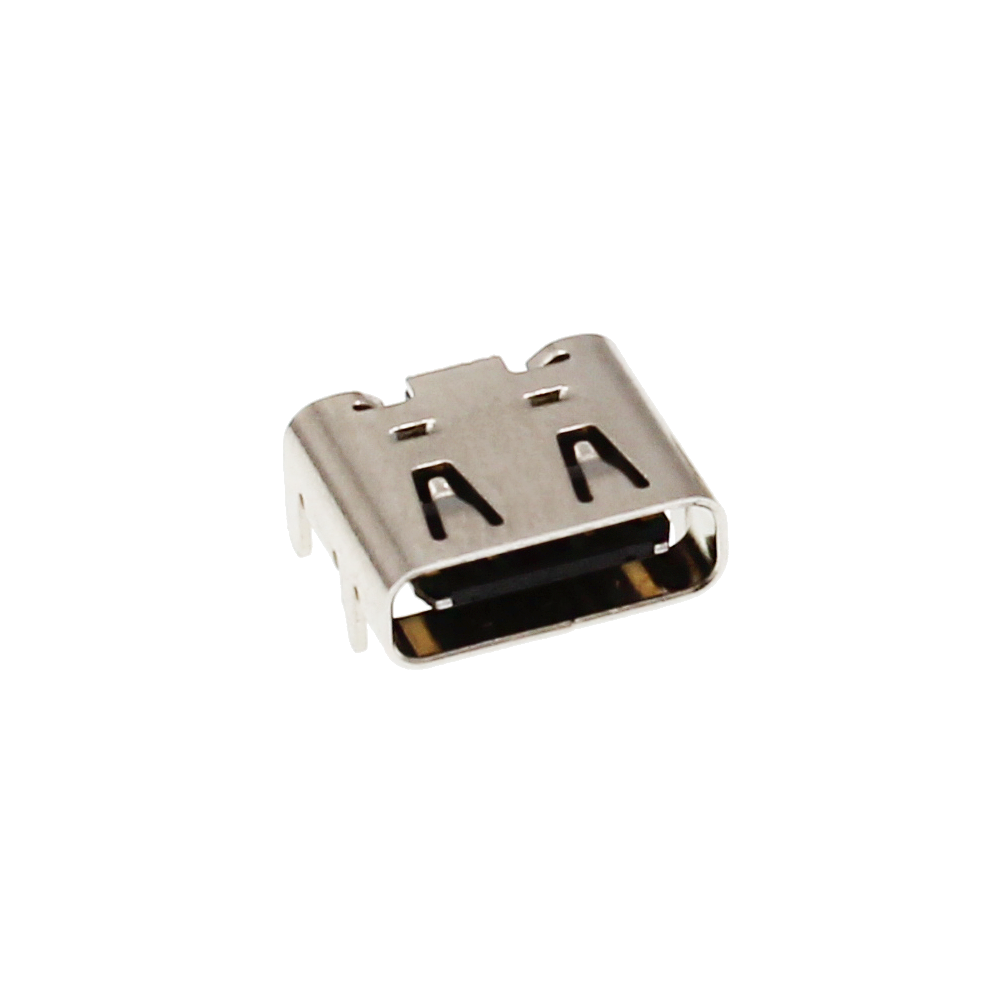

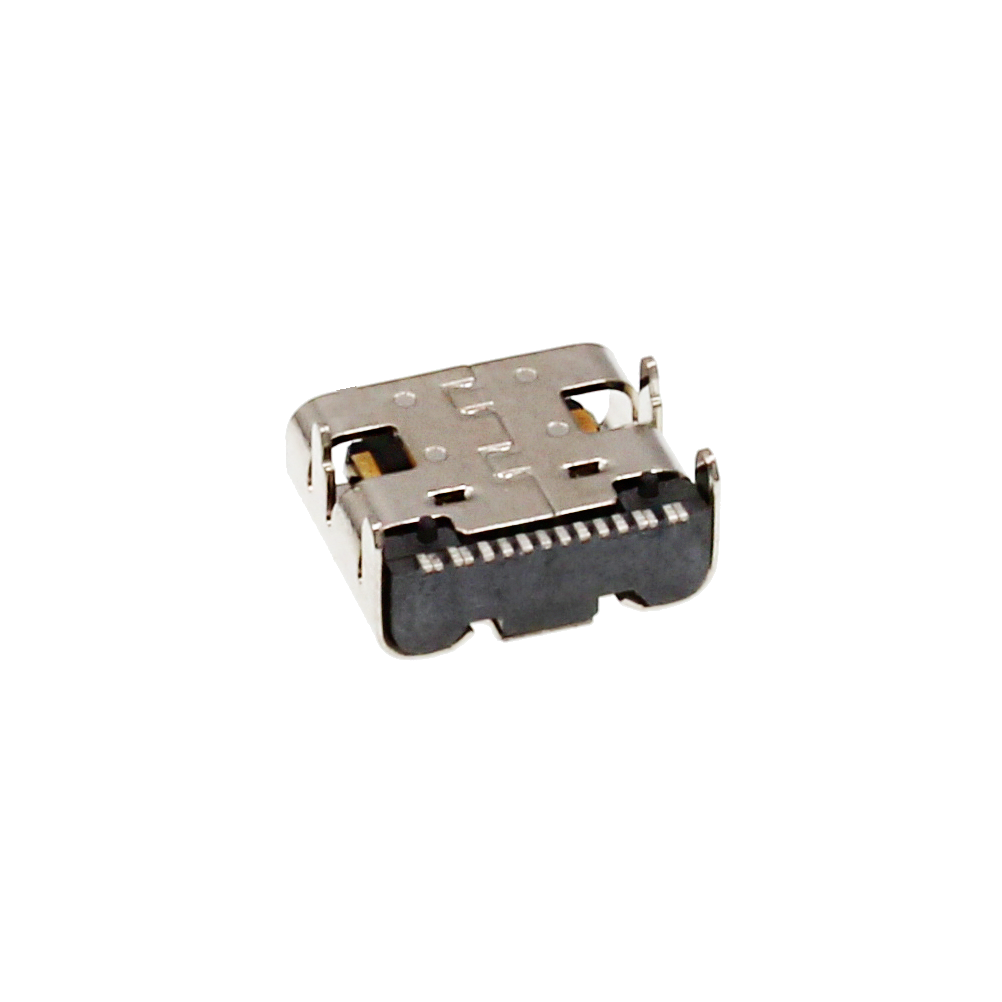

UTC234- USB2.0 Receptacle Top Mount SMT Type

USB 2.0 Type C Receptacle Top Mount SMT Type

  • USB2.0 (10 Gbit/s)

  • SMT Type

  • Top Mount

  • 12 pin counts

  • Gold Finish on Contact Area, Tin Finish on Termination

  • Tape and Reel package

  • Mating / Relate Parts:

    •   - USB Type C Plug Connector
    Share：
    SERIES NO.
    UTC234
    -
    CONTACT POSITIONS
    016
    -
    CONTACT PLATING (600: GF | 630: 30u AU)
    -
    PACKAGE (3: Tape & Reel)
    3
    ADD INQUIRY
    DOWNLOAD

    Product
    Characteristics    		 Contact Pitch 0.5mm(0.02")
    Available Pin Counts 12
    Orientation Top-Mount
      　
    Mechanical &
    Environmental    		 Operating Temp. -40˚C~+85˚C
    Durability 10000 Mating Operations
    Vibration  Random vibration
    - Frequency : 20~500Hz
    - Power Spectral density : 0.02 g2/Hz
    - Acceleration : 3.1 grms
    - Duration : 15 minutes/axis
    - Direction : x,y,z axes

    Electrical
    Specifications    		 Current Rating 10A Max VBUS
    Voltage Rating 30V DC/AC
    Contact Resistance Initial: 40mΩ Max.
    After Stress:△10mΩ Max.
