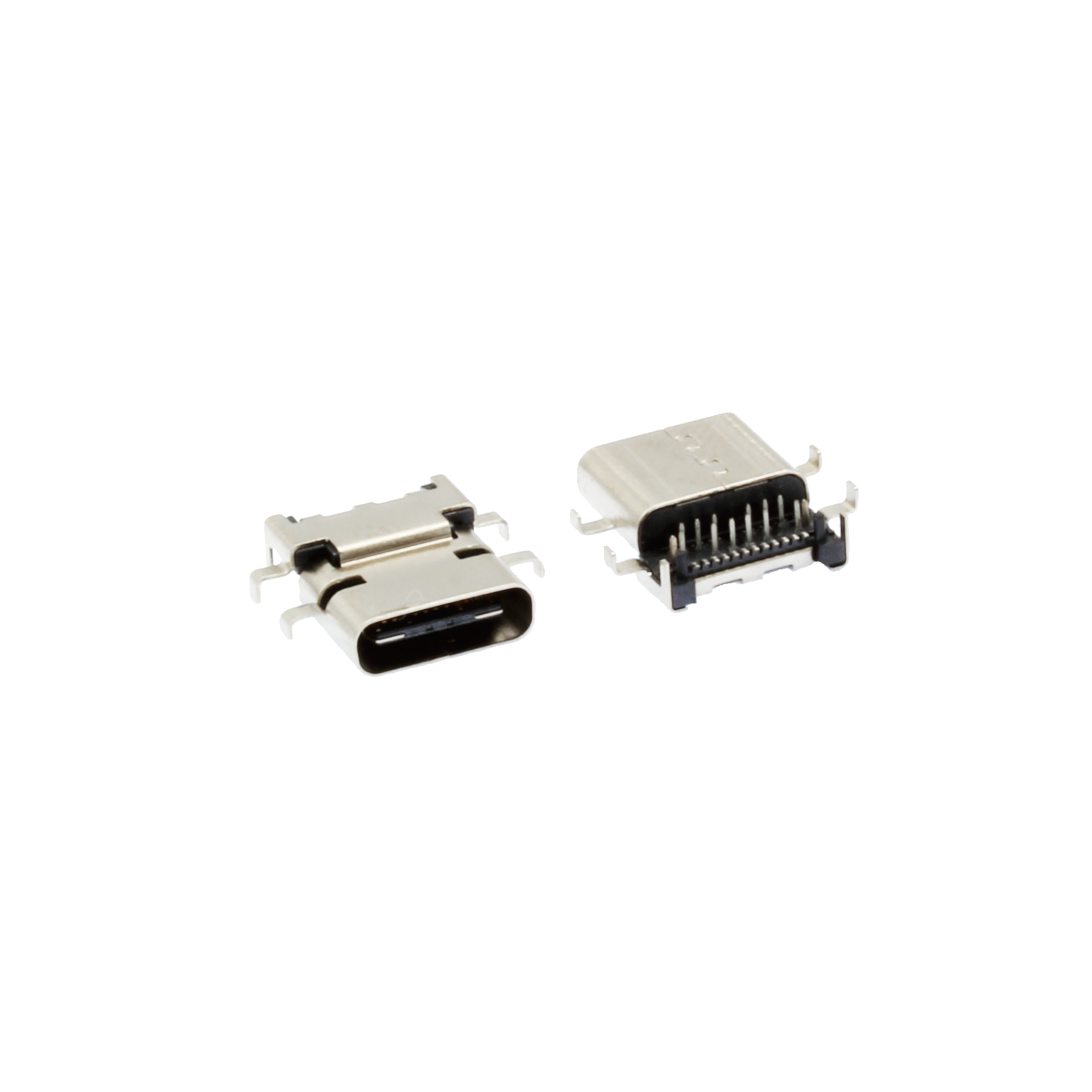

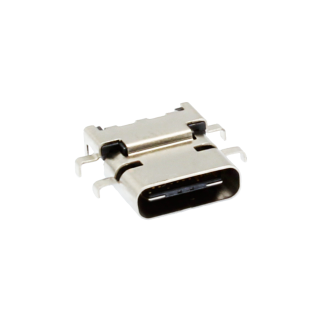

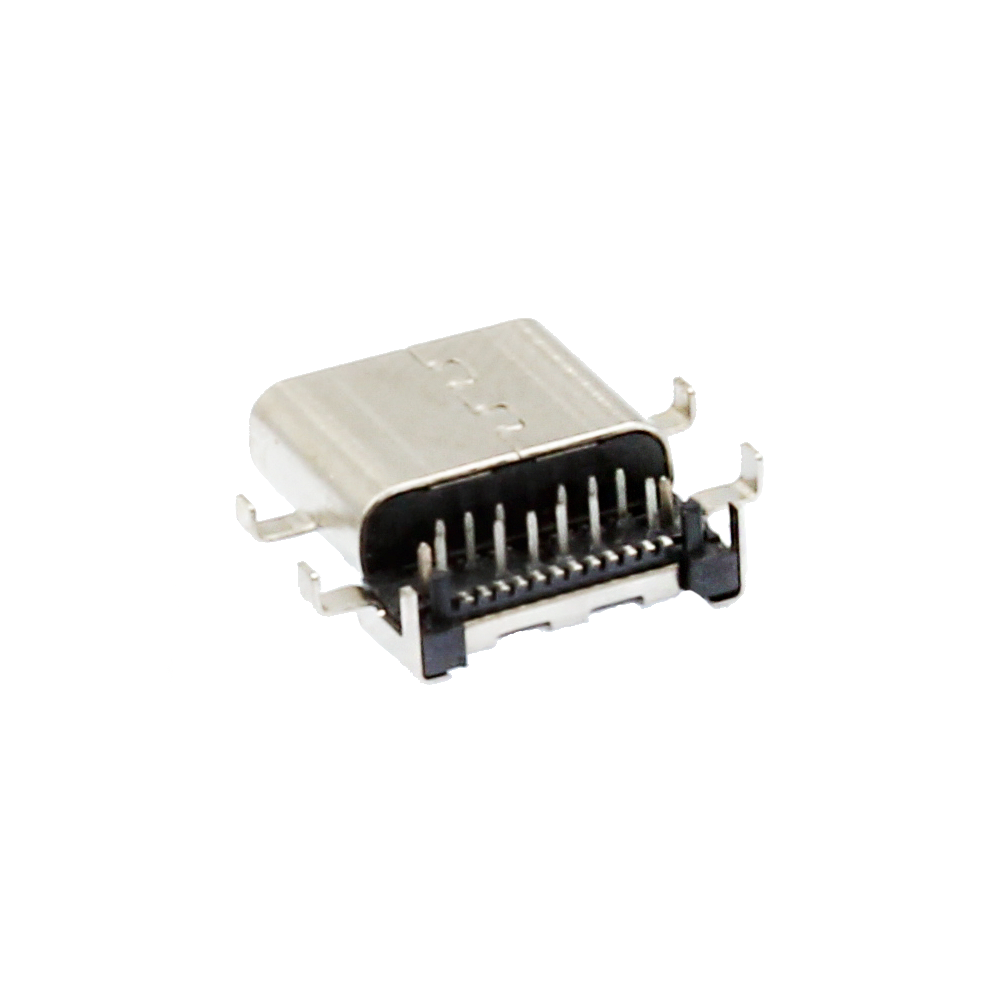

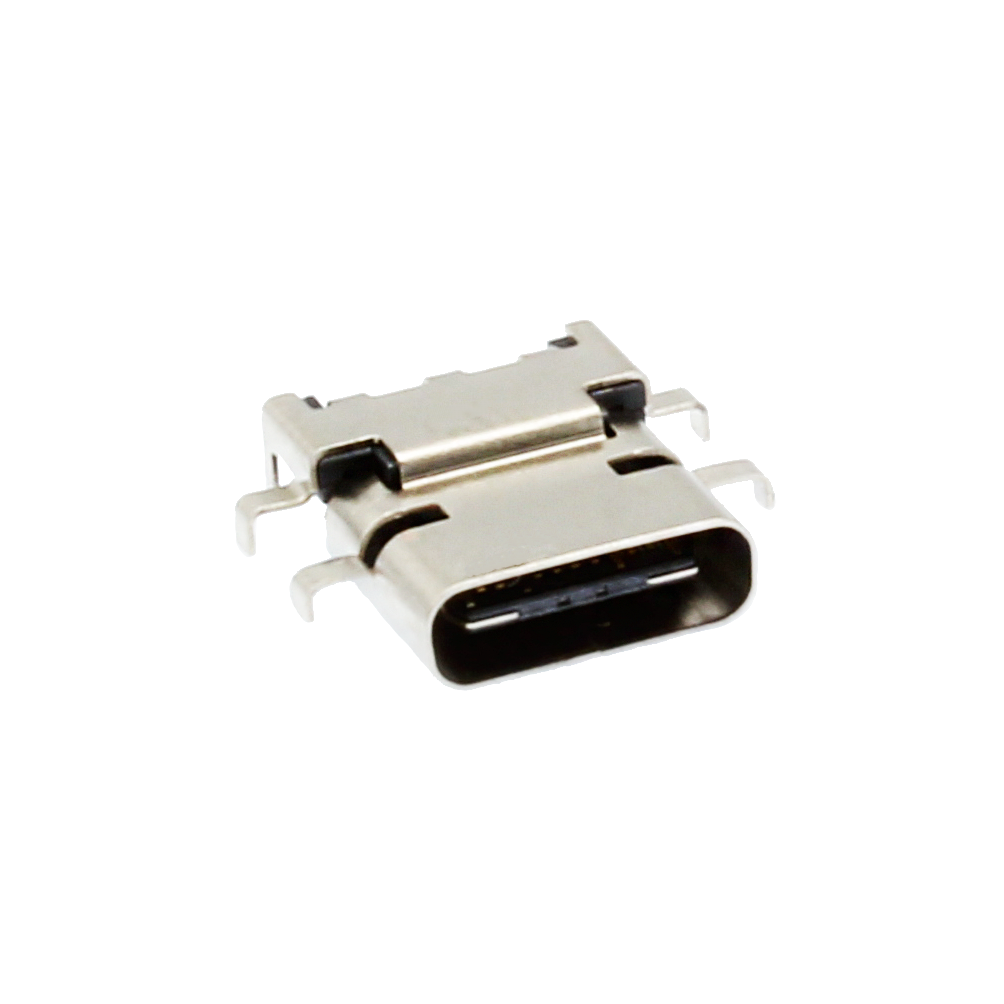

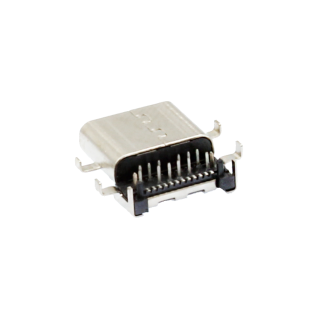

UTC231- USB3.2 Receptacle Mid-Mount DIP+SMT Type

USB 3.2 Type C Receptacle Mid-Mount Offset 0.5mm DIP+SMT Type

  • USB3.2 (20 Gbit/s)

  • DIP+SMT Type

  • Mid Mount

  • Offset 0.5mm

  • 24 pin counts

  • Gold Finish on Contact Area, Tin Finish on Termination

  • Tape and Reel package

  • Mating / Relate Parts:

    •   - USB Type C Plug Connector
      - M.2 Connector
    Share：
    SERIES NO.
    UTC231
    -
    CONTACT POSITIONS
    024
    -
    CONTACT PLATING (G7F1: 30u AU)
    G7F1
    -
    PACKAGE (3: Tape & Reel)
    3
    ADD INQUIRY
    DOWNLOAD

    Product
    Characteristics    		 Contact Pitch 0.5mm(0.02")
    Available Pin Counts 24
    Orientation Mid-Mount
      　
    Mechanical &
    Environmental    		 Operating Temp. -30˚C~+85˚C
    Durability 10000 Mating Operations
    Vibration

    Electrical
    Specifications    		 Current Rating 5A Max VBUS
    Voltage Rating 30V DC/AC
    Contact Resistance Initial: 40mΩ Max.
    After Stress:△10mΩ Max.
