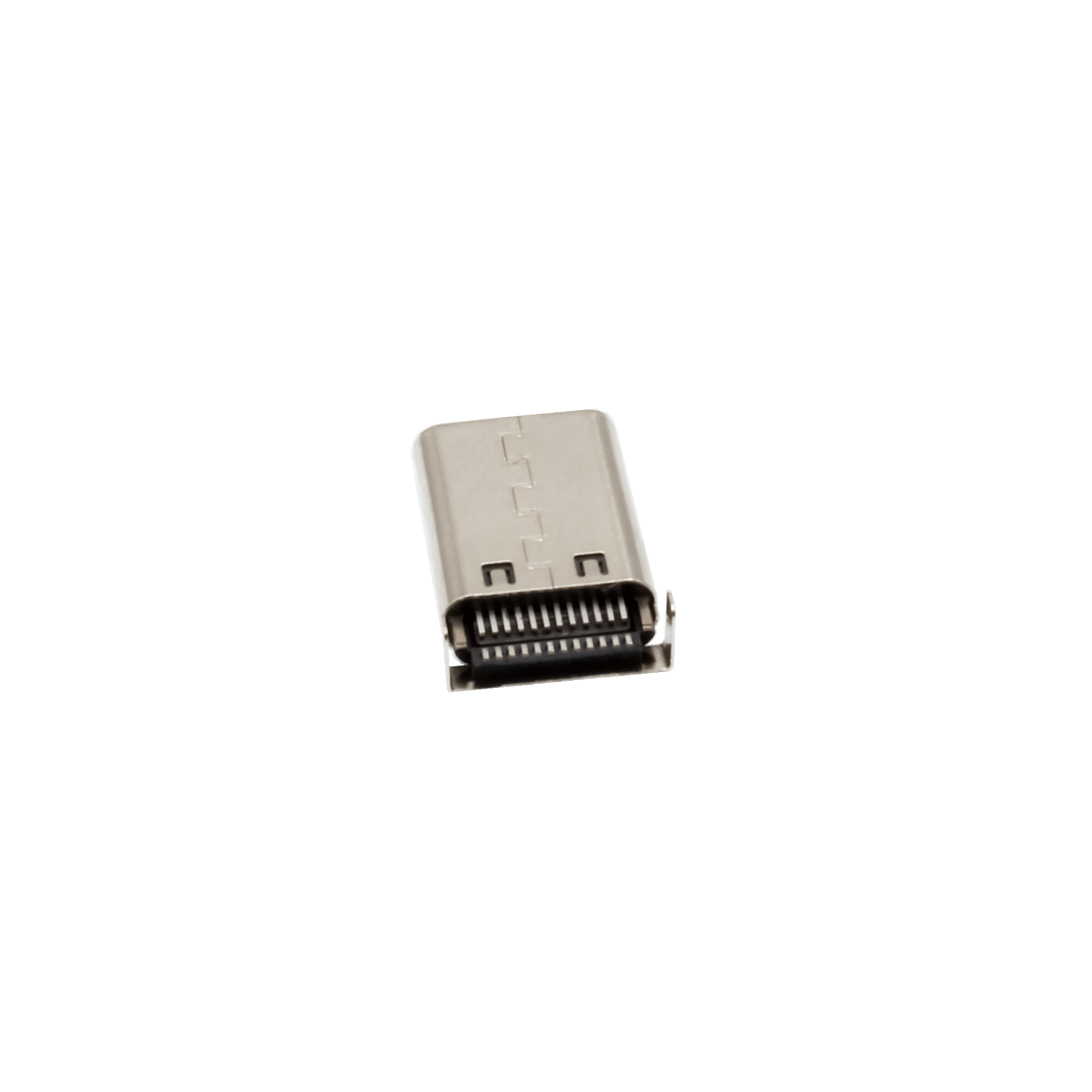

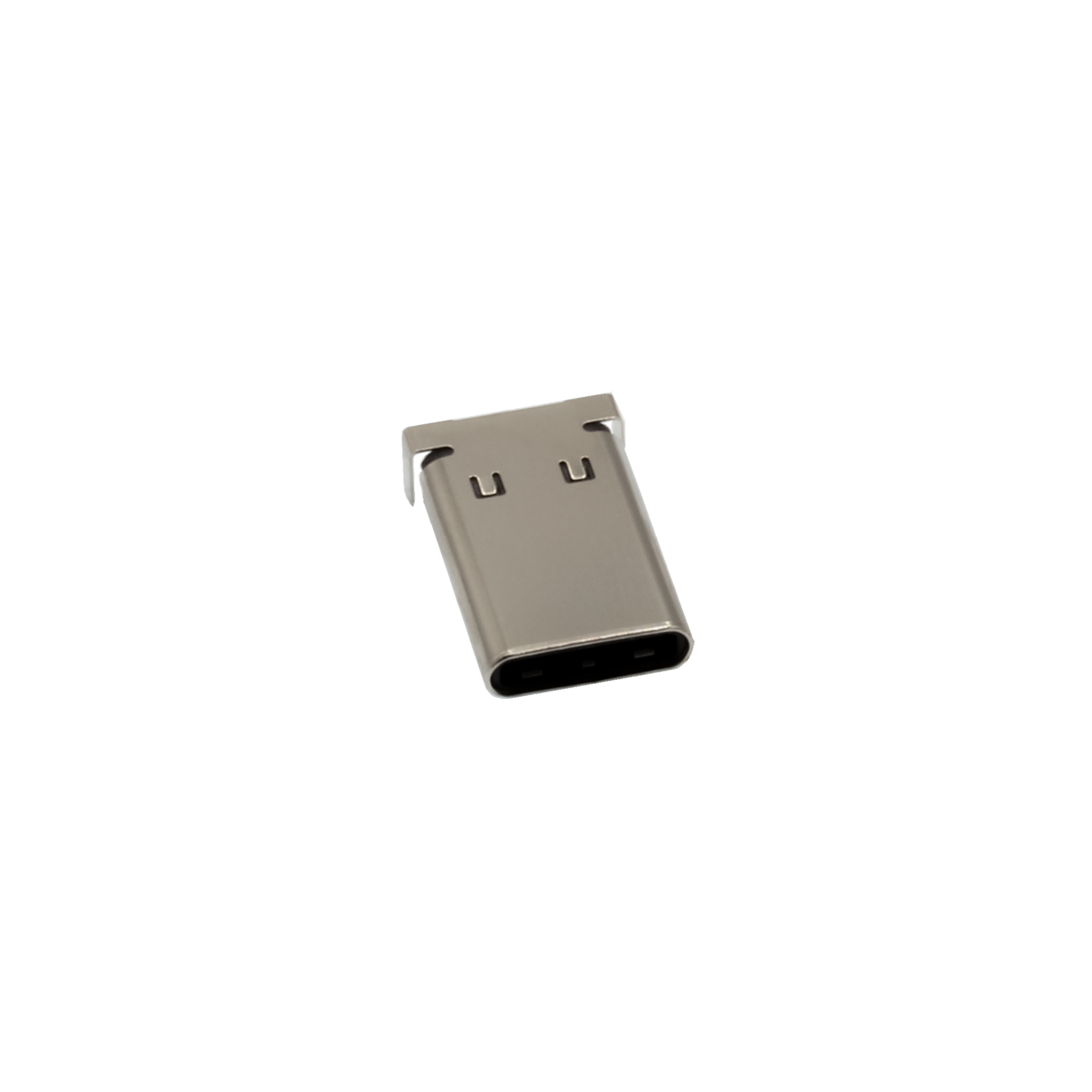

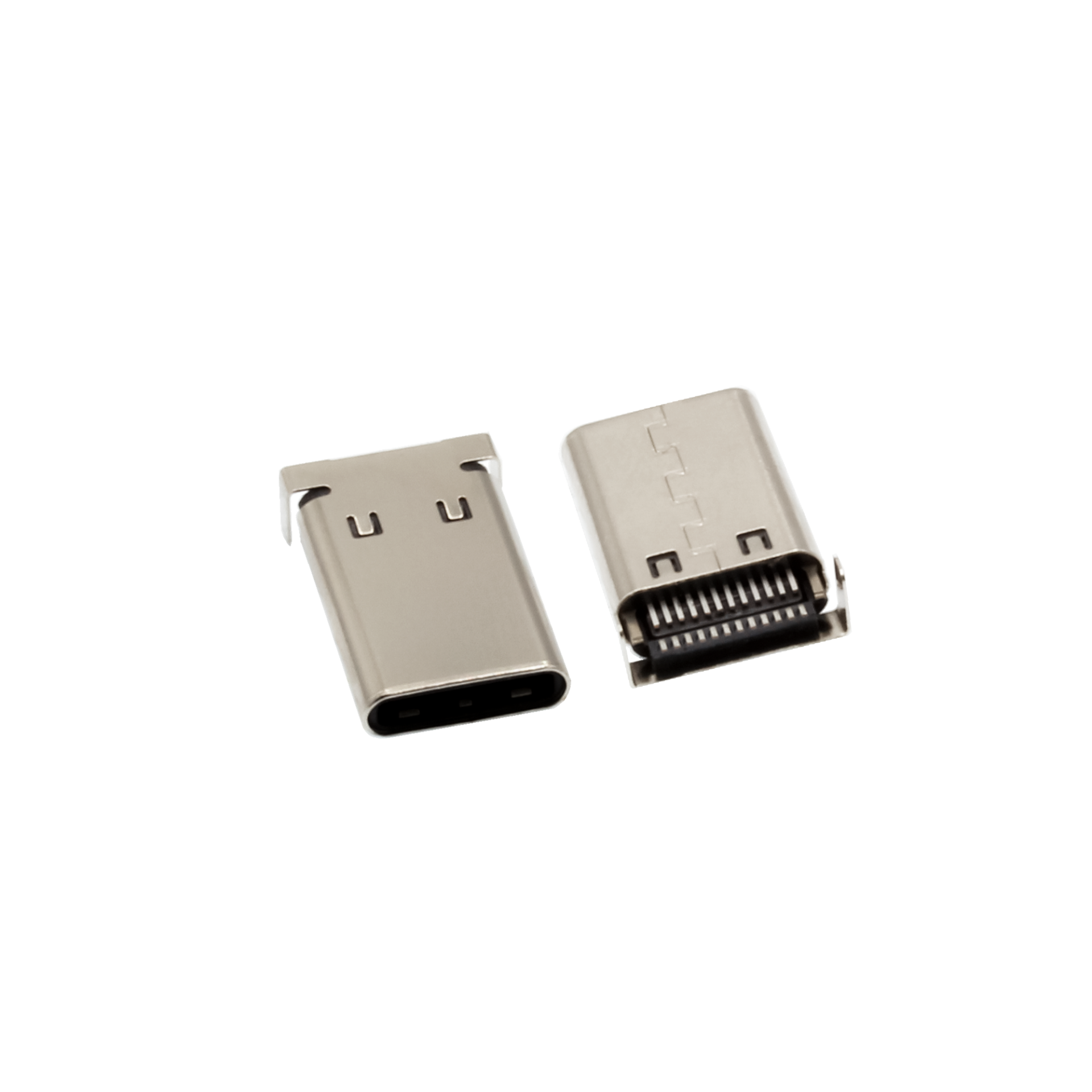

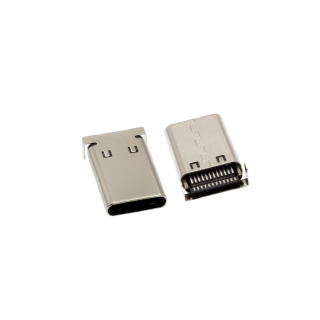

USB402- USB4.0 Plug Board Mount

USB 4.0 Type C Plug Board Mount Offset 0.95mm SMT Type

  • USB4.0 (40 Gbit/s)

  • SMT Type

  • Board Mount

  • 24 pin counts

  • Gold Finish on Contact Area, Tin Finish on Termination

  • Tape and Reel package

  • Mating / Relate Parts:

    •   - USB Type C Receptacle Connectors
      - M.2 Connector
    Share：
    SERIES NO.
    USB402
    -
    CONTACT POSITIONS
    024
    -
    CONTACT PLATING (600: GF | 605: 5u AU | 630: 30u AU)
    -
    PACKAGE (3: Tape & Reel)
    3
    ADD INQUIRY
    DOWNLOAD

    Product
    Characteristics    		 Contact Pitch 0.5mm(0.02")
    Available Pin Counts 24
    Orientation Board Mount
      　
    Mechanical &
    Environmental    		 Operating Temp. -40˚C~+85˚C
    Durability 10000 Mating Operations
    Vibration Random Vibration
    -Frequency: 20~500Hz
    -Power Spectral density:0.02 g2/Hz
    -Acceleration: 3.1 grms
    -Duration: 15 minutes/axis
    -Direction: x,y,z axes

    Electrical
    Specifications    		 Current Rating 5A Max VBUS
    Voltage Rating 30V DC/AC
    Contact Resistance Initial: 40mΩ Max.
    After Stress:△10mΩ Max.
