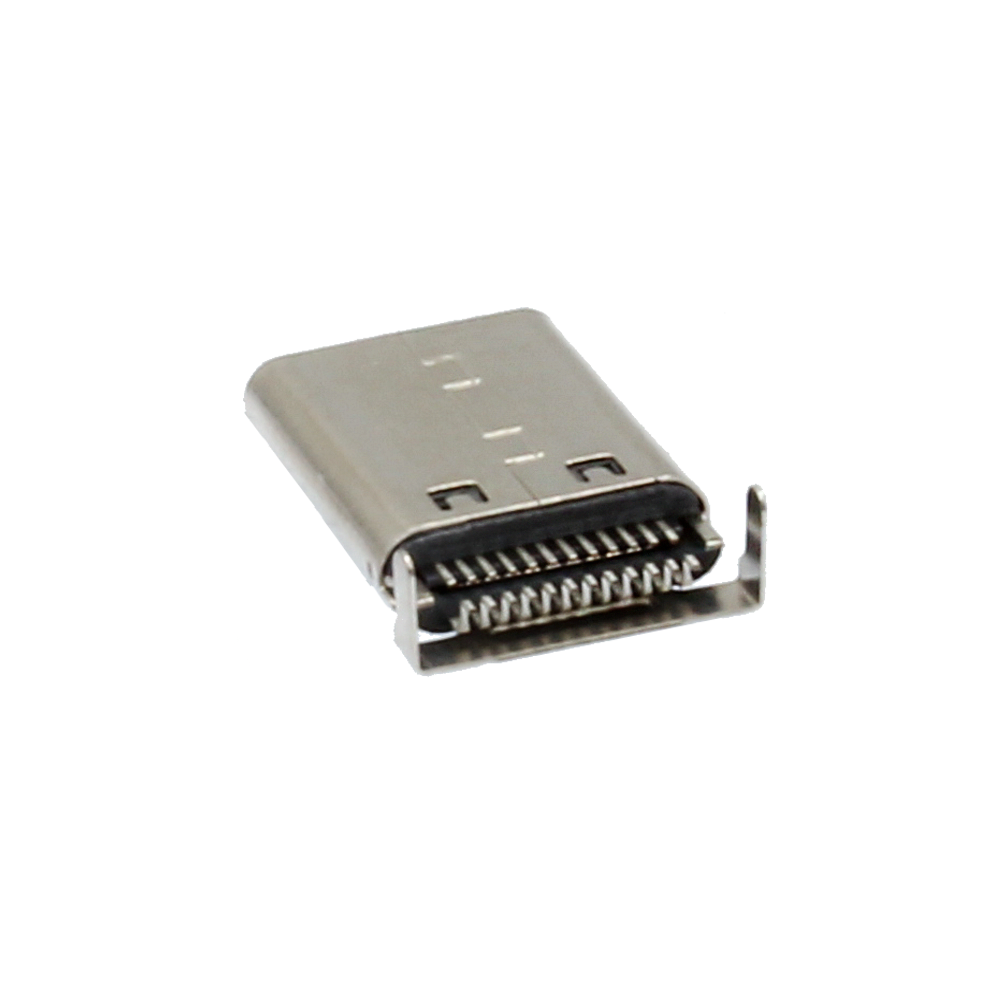

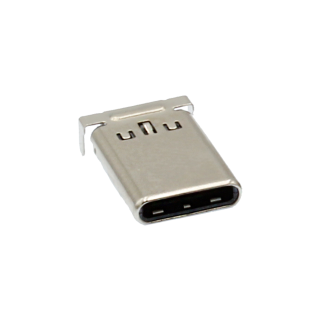

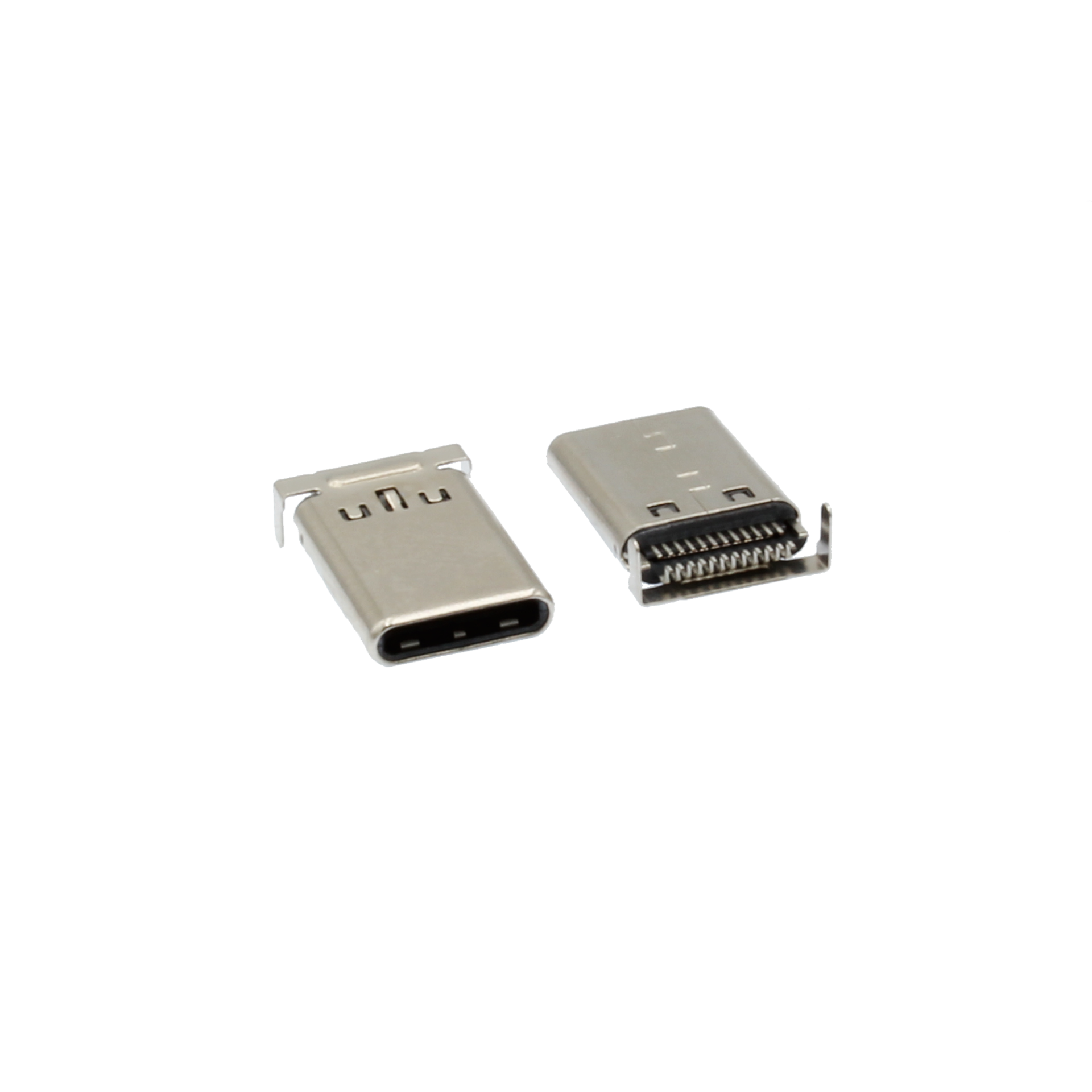

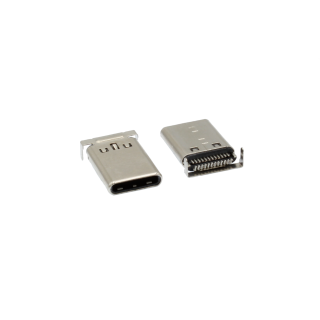

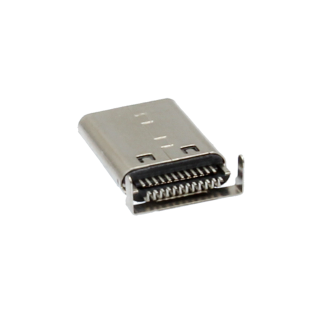

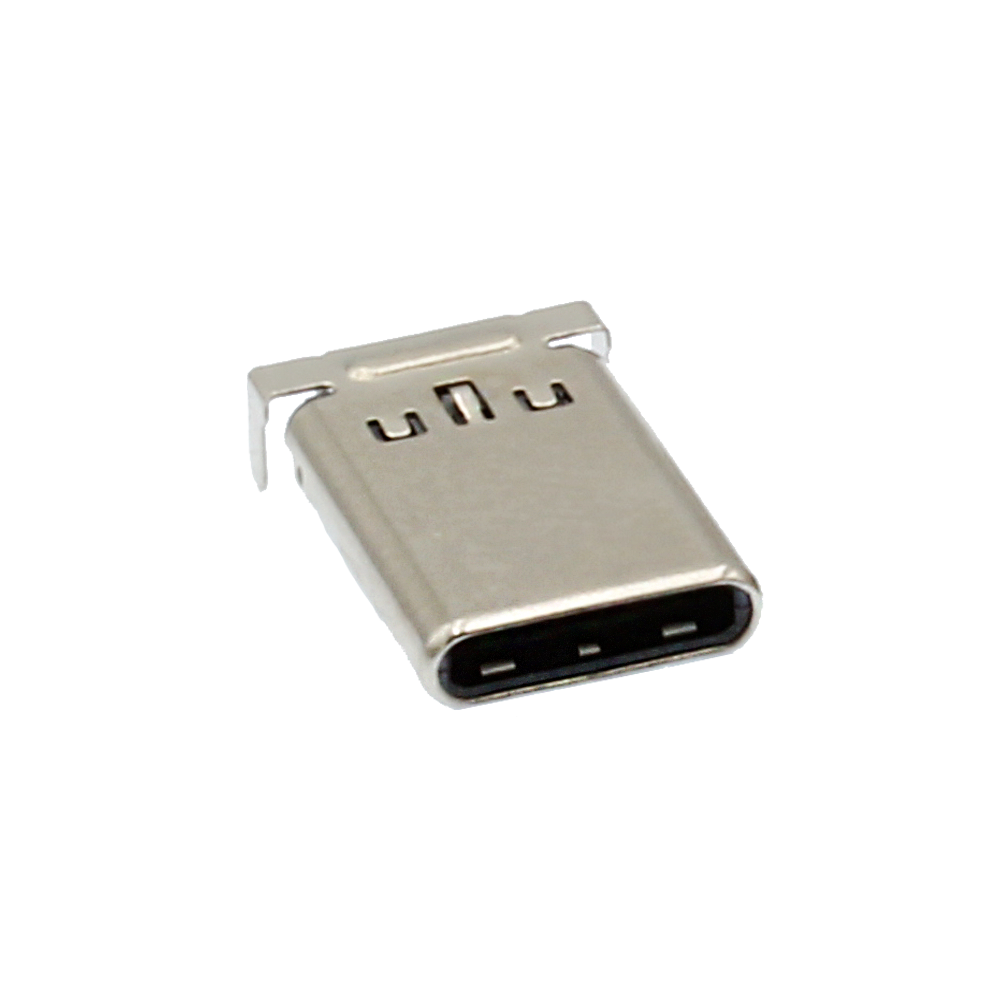

USB401E- USB3.2 Plug Board Mount Offset 0.95mm SMT Type

USB3.2 Type C Plug Board Mount Offset 0.95mm SMT Type

  • USB3.2 (20 Gbit/s)

  • SMT Type

  • Board Mount

  • 24 pin counts

  • Gold Finish on Contact Area, Tin Finish on Termination

  • Tape and Reel package

  • Mating / Relate Parts:

    •   - USB Type C Receptacle Connectors
      - M.2 Connector
    Share：
    SERIES NO.
    USB401E
    -
    CONTACT POSITIONS
    024
    -
    CONTACT PLATING (600: GF | 615: 15u AU | 630: 30u AU)
    -
    PACKAGE (3: Tape & Reel)
    3
    ADD INQUIRY
    DOWNLOAD

    Product
    Characteristics    		 Contact Pitch 0.5mm(0.02")
    Available Pin Counts 24
    Orientation Board Mount
      　
    Mechanical &
    Environmental    		 Operating Temp. -40˚C~+85˚C
    Durability 10000 Mating Operations
    Vibration

    5min in each of 3 mutually perpendicular directions.

    (Power Spectral Density 0.02g2/Hz, Overall rms 3.10g)

    Electrical
    Specifications    		 Current Rating 5A Max VBUS
    Voltage Rating 30V DC/AC
    Contact Resistance Initial: 40mΩ Max.
    After Stress:△10mΩ Max.
