HOME PRODUCT 0.5mm Pitch USB Type C Waterproof USB313WF-02- USB3.2 Waterproof(IPX8) Receptacle Side Entry SMT Type
PRODUCTS

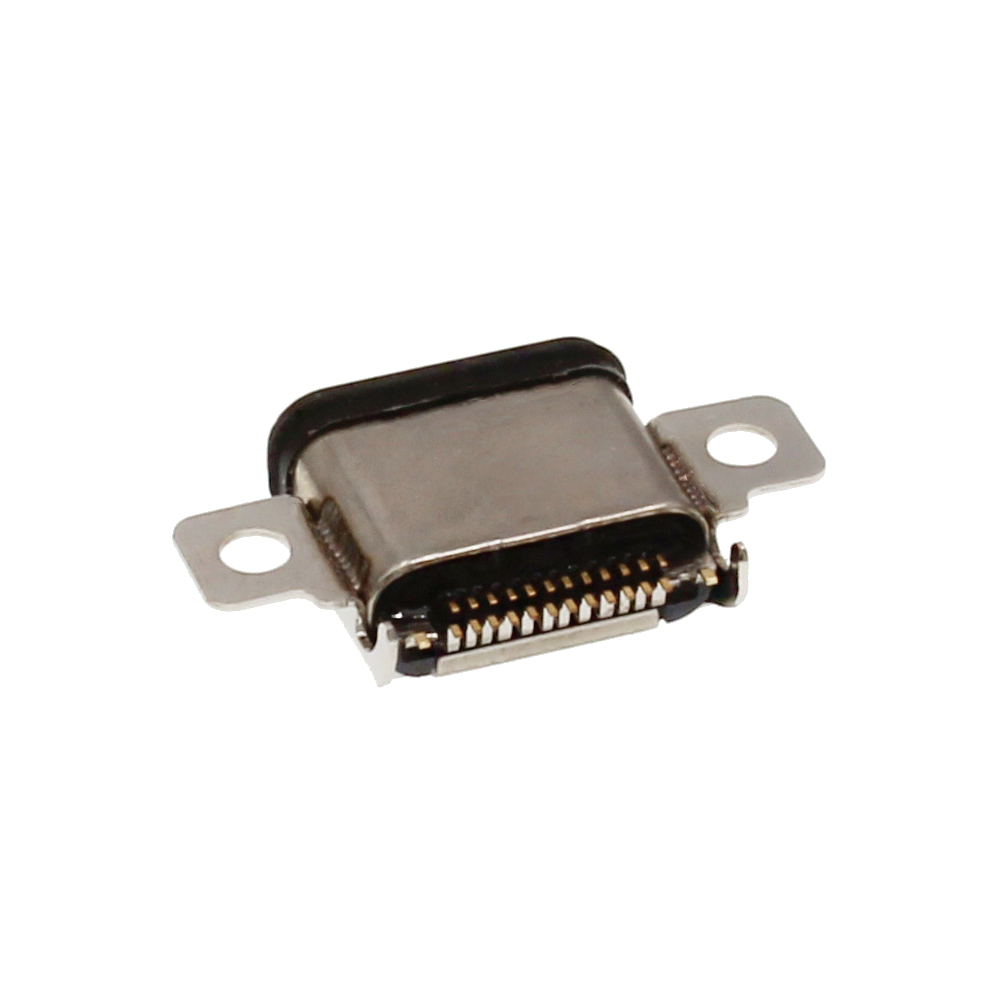

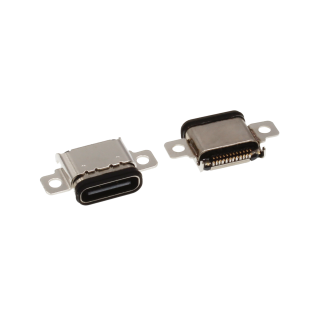

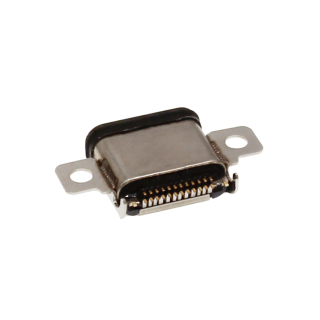

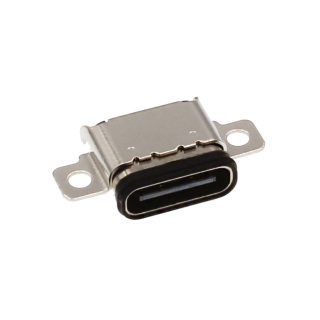

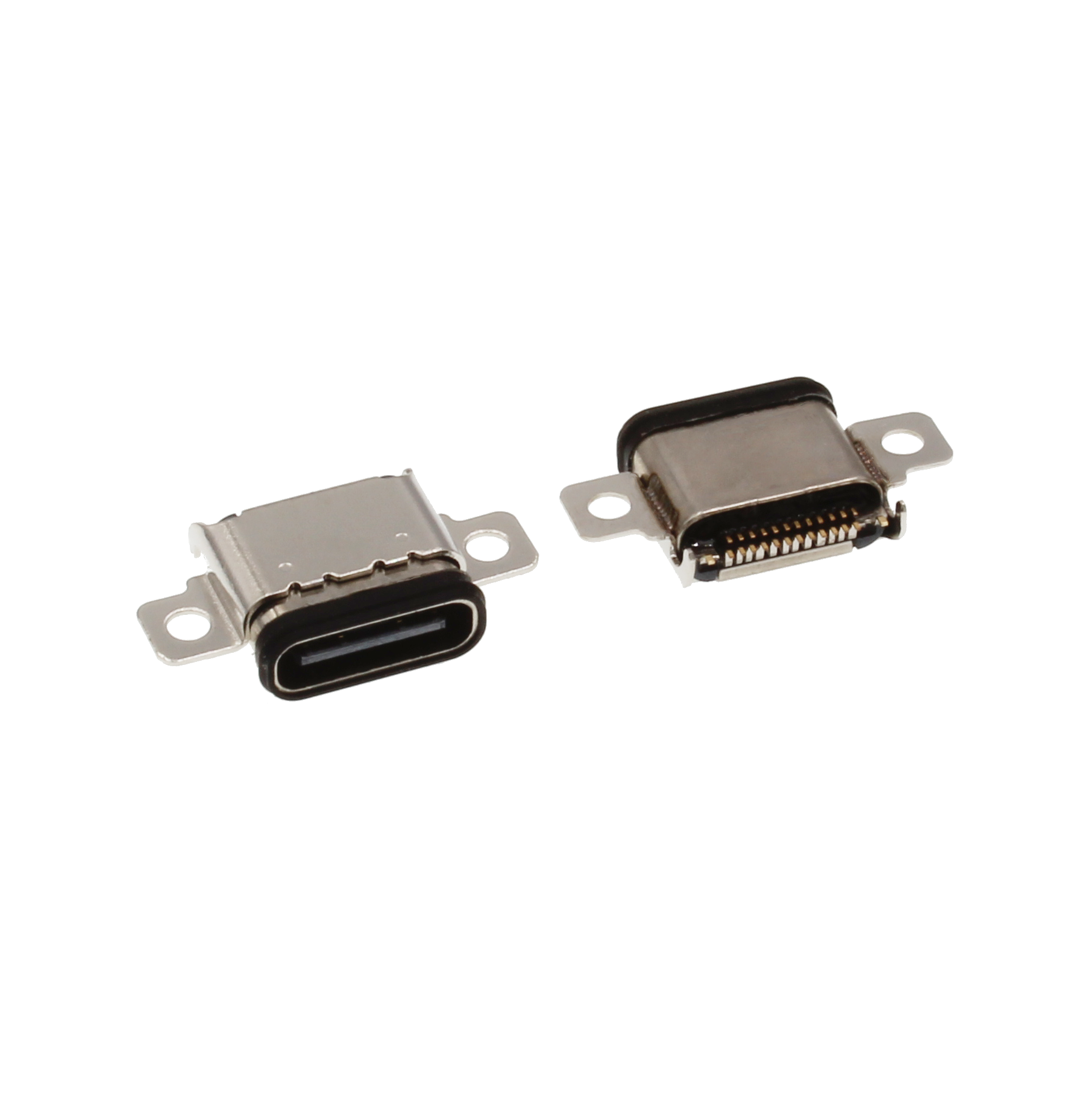

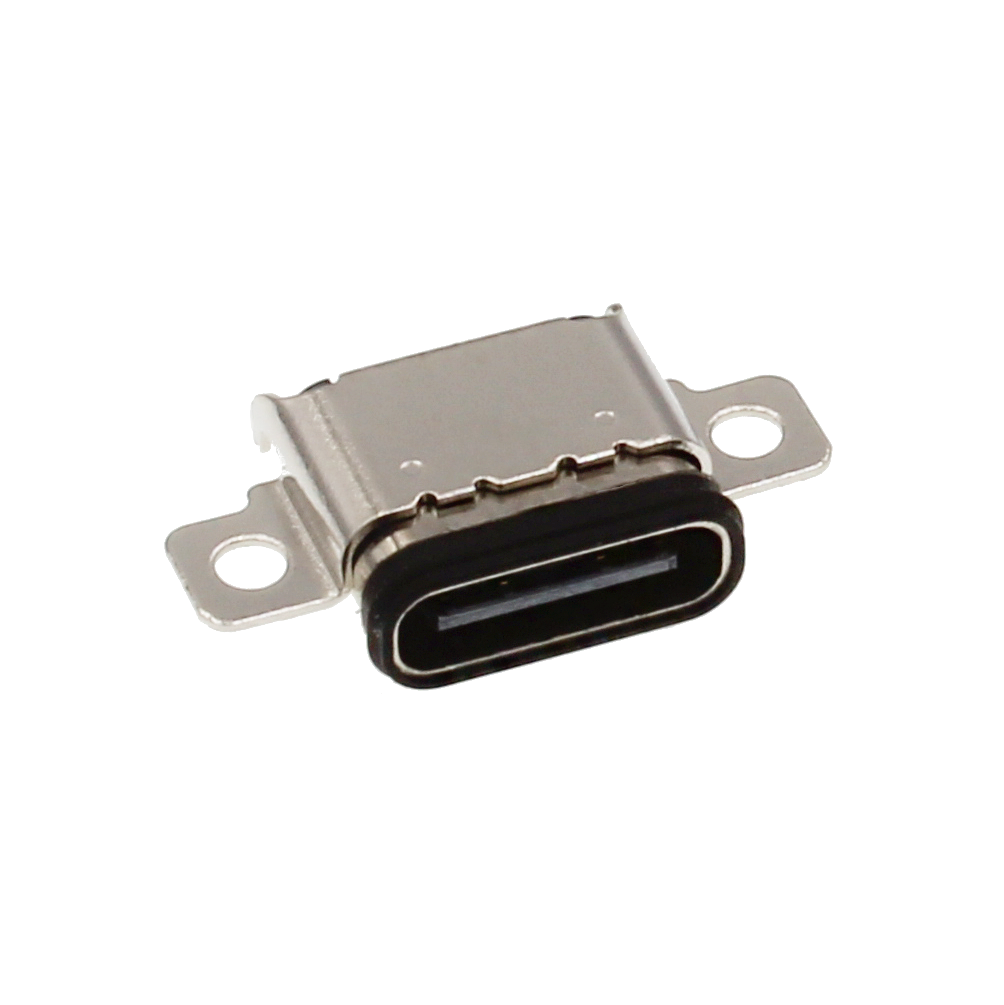

USB313WF-02- USB3.2 Waterproof(IPX8) Receptacle Side Entry SMT Type

USB 3.2 Type C Waterproof(IPX8) Receptacle Side Entry SMT Type

  • USB3.2 (20 Gbit/s)

  • SMT Type

  • Side Entry

  • 24 pin counts

  • Gold Finish on Contact Area, Tin Finish on Termination

  • Tape and Reel package

  • Mating / Relate Parts:

    •   - USB Type C Plug Connector
      - M.2 Connector
    Share：
    SERIES NO.
    USB313WF-02
    -
    CONTACT POSITIONS
    024
    -
    CONTACT PLATING (101: 1u AU | 105: 5u AU | 130: 30u AU)
    -
    PACKAGE (3: Tape & Reel)
    3
    ADD INQUIRY
    DOWNLOAD

    Product
    Characteristics    		 Contact Pitch 0.5mm(0.02")
    Available Pin Counts 24
    Orientation Side Entry
      　
    Mechanical &
    Environmental    		 Operating Temp. -30˚C~+85˚C
    Durability 10000 Mating Operations
    Vibration  Random vibration
    - Frequency : 20~500Hz
    - Power Spectral density : 0.02 g2/Hz
    - Acceleration : 3.1 grms
    - Duration : 15 minutes/axis
    - Direction : x,y,z axes

    Electrical
    Specifications    		 Current Rating 5A Max VBUS
    Voltage Rating 20V DC/AC
    Contact Resistance Initial: 40mΩ Max.
    After Stress:△10mΩ Max.
