HOME PRODUCT 0.5mm Pitch USB Type C USB 4.0 (40gbps) UTC237- USB4.0 Receptacle Top Mount DIP+SMT Type
PRODUCTS

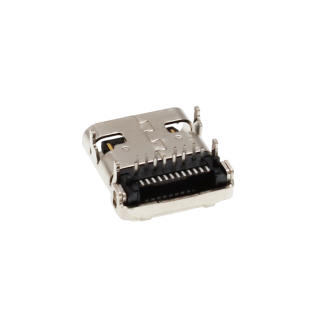

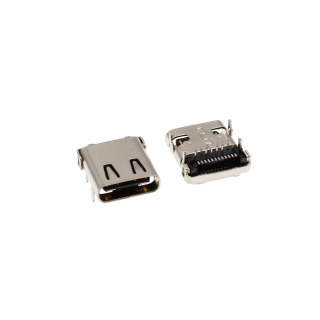

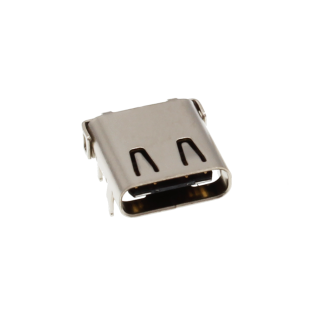

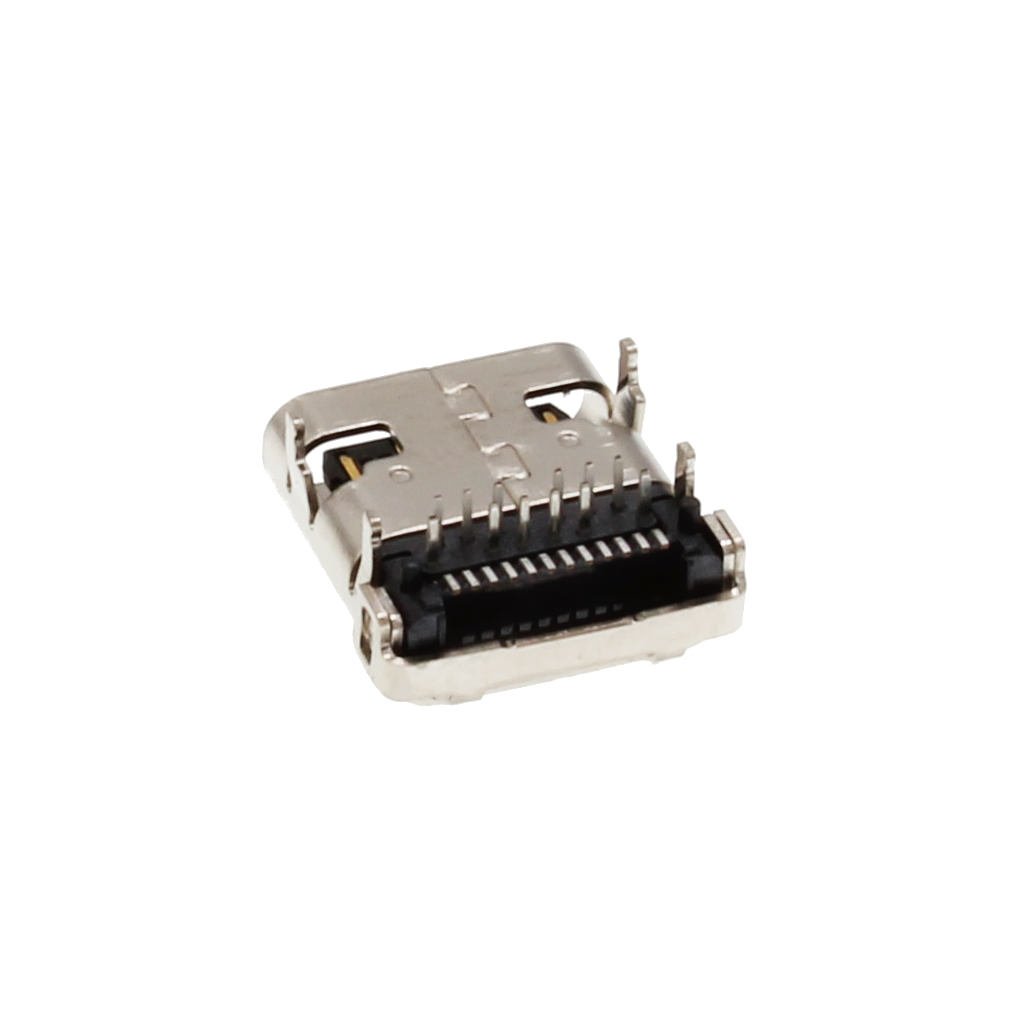

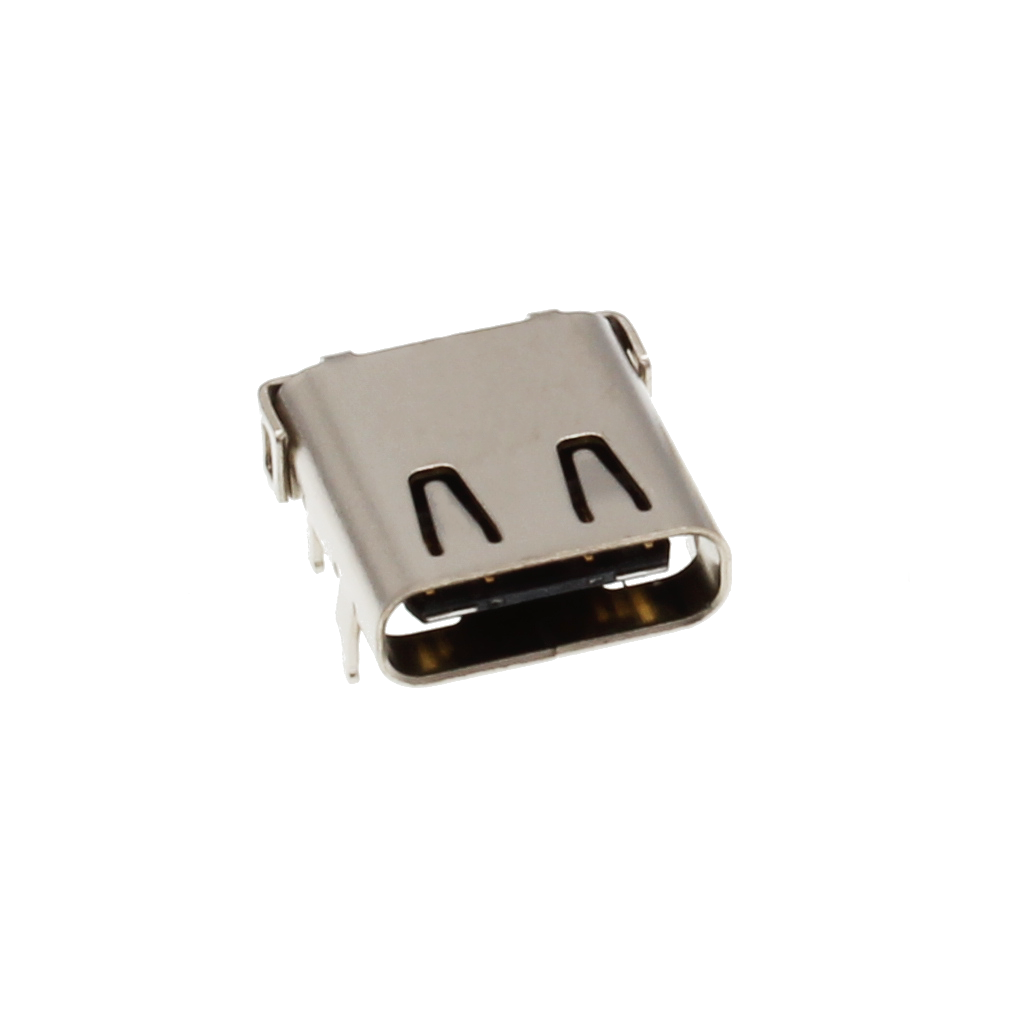

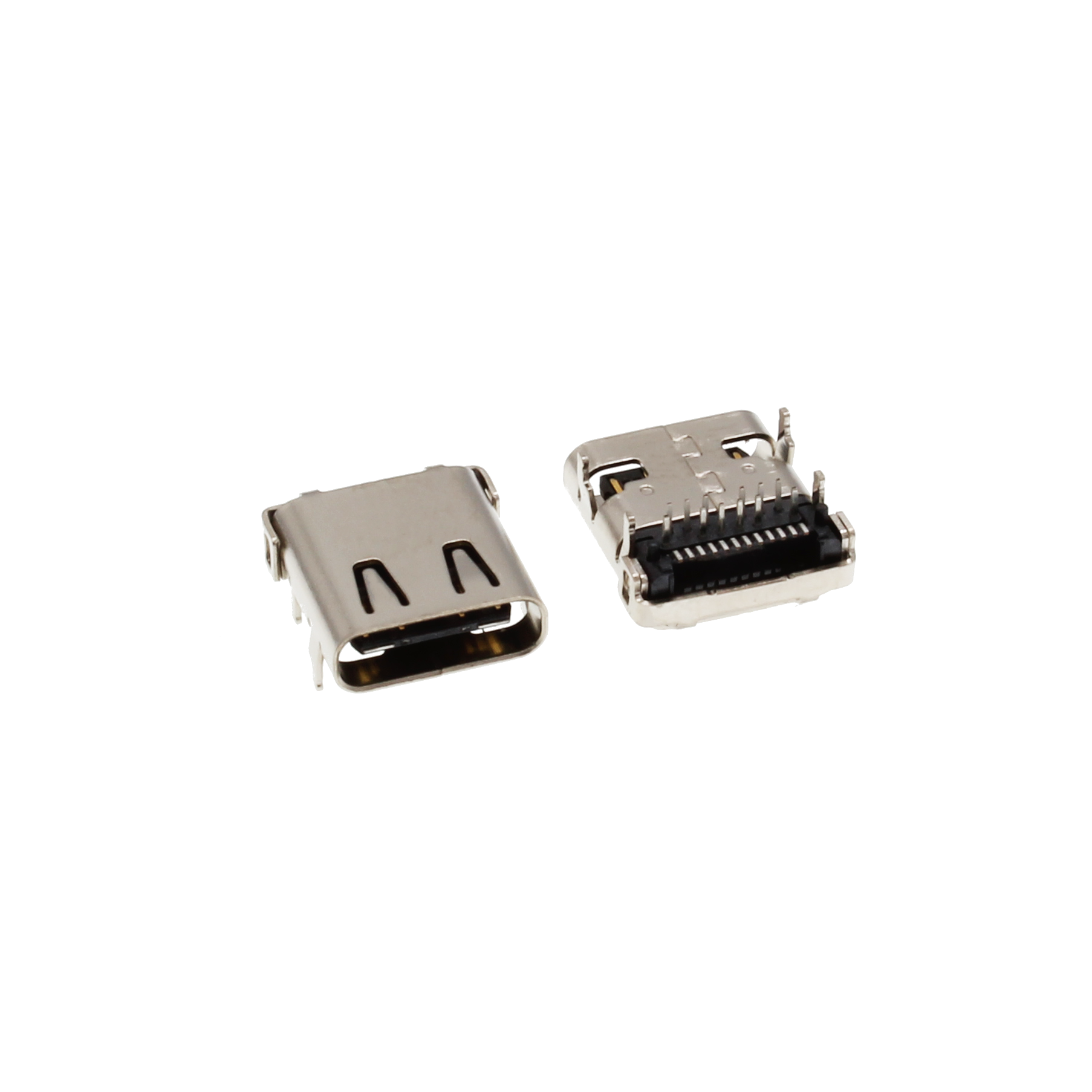

UTC237- USB4.0 Receptacle Top Mount DIP+SMT Type

USB 4.0 Type C Receptacle Top Mount DIP+SMT Type

  • USB4.0 (40 Gbit/s)

  • DIP+SMT Type

  • Top Mount

  • 24 pin counts

  • Gold Finish on Contact Area, Tin Finish on Termination

  • Tape and Reel package

  • Mating / Relate Parts:

    •   - USB Type C Plug Connector
      - M.2 Connector
    Share：
    SERIES NO.
    UTC237
    -
    CONTACT POSITIONS
    024
    -
    CONTACT PLATING (G11F1: 1u AU | G15F1: 5u AU | G7F1: 30u AU)
    -
    PACKAGE (3: Tape & Reel)
    3
    ADD INQUIRY
    DOWNLOAD

    Product
    Characteristics    		 Contact Pitch 0.5mm(0.02")
    Available Pin Counts 24
    Orientation Top Mount
      　
    Mechanical &
    Environmental    		 Operating Temp. -30˚C~+85˚C
    Durability 10000 Mating Operations
    Vibration

    15 minutes in each of 3 mutually perpendicularaxes,

    20~500Hz, 0.02 g2/Hz

    Electrical
    Specifications    		 Current Rating 5A Max VBUS
    Voltage Rating 30V DC/AC
    Contact Resistance Initial: 40mΩ Max.
    After Stress:△10mΩ Max.
