HOME PRODUCT 0.5mm Pitch USB Type C USB 3.2 (20gbps) USB119- USB3.2 Receptacle Top Mount SMT Type
PRODUCTS

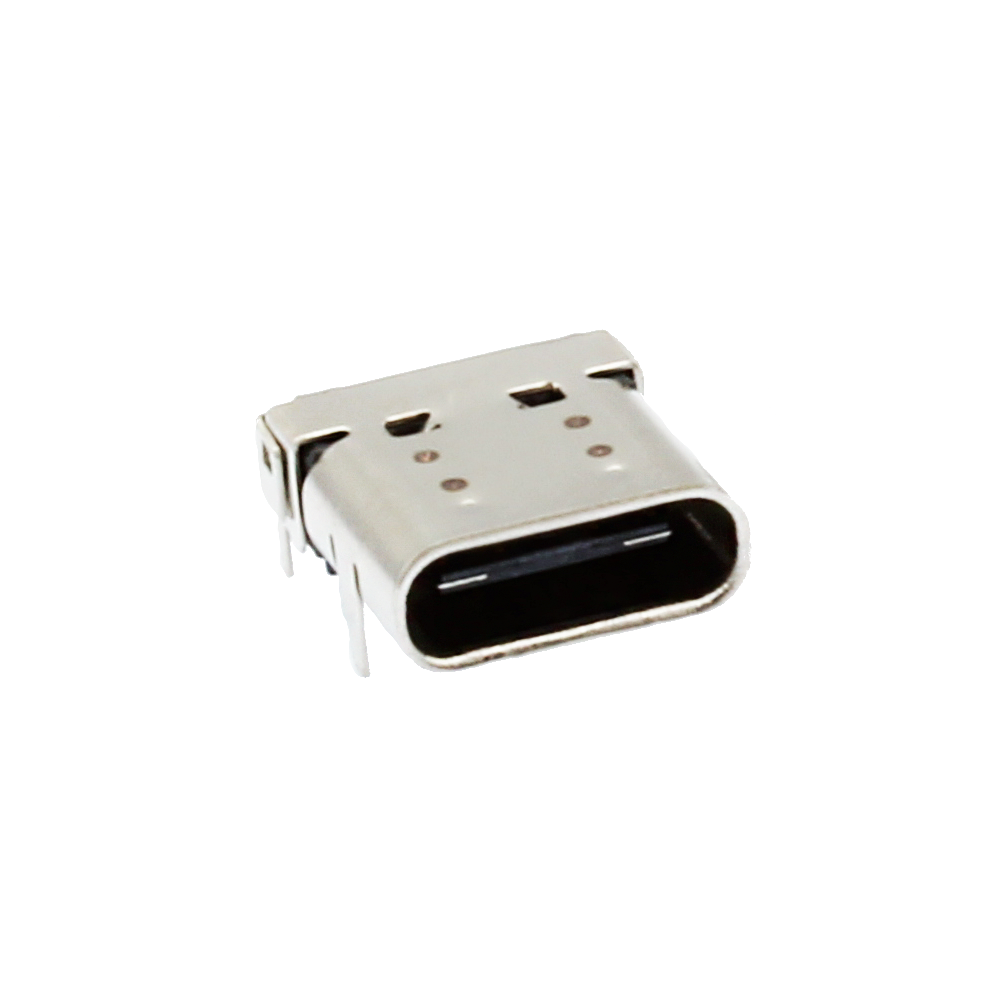

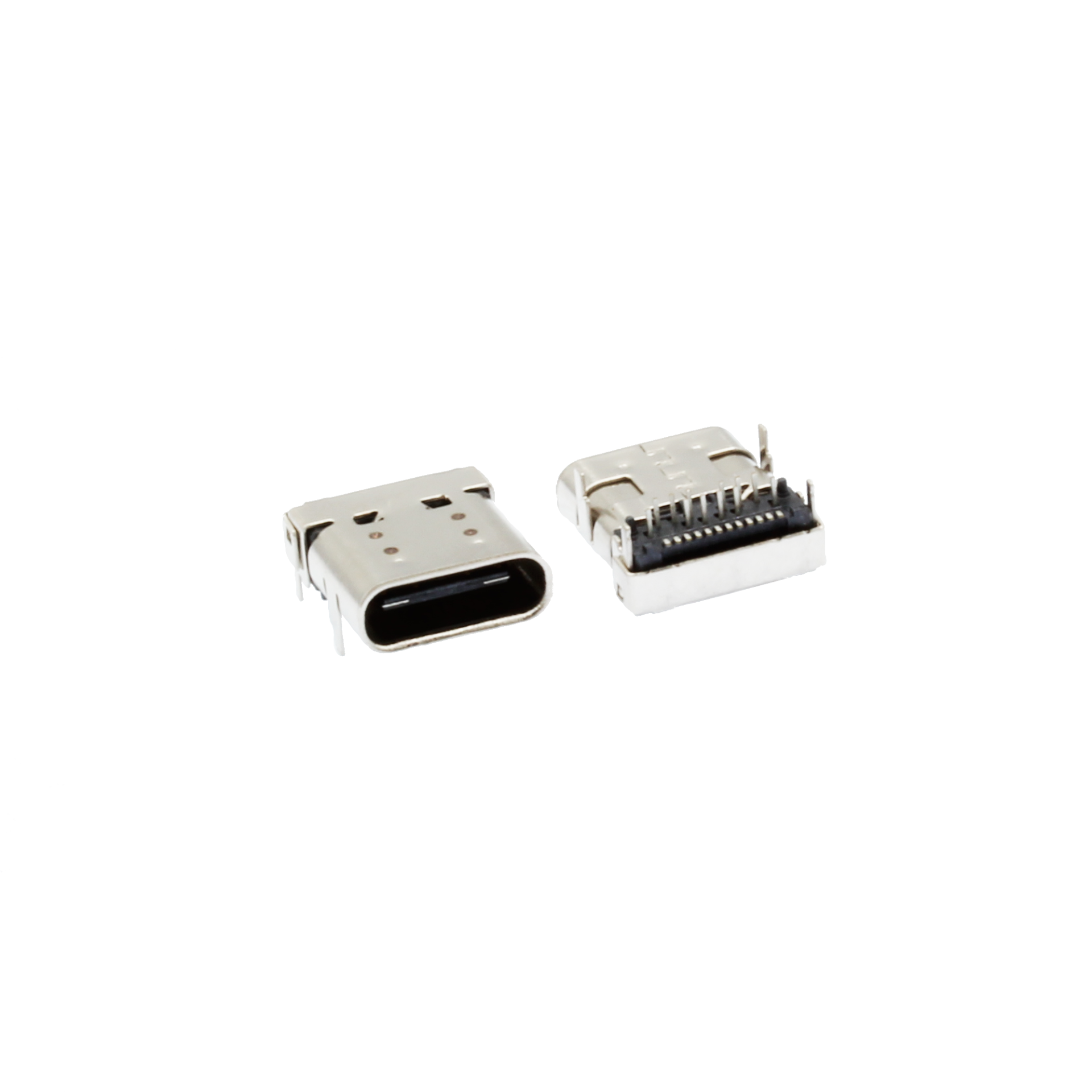

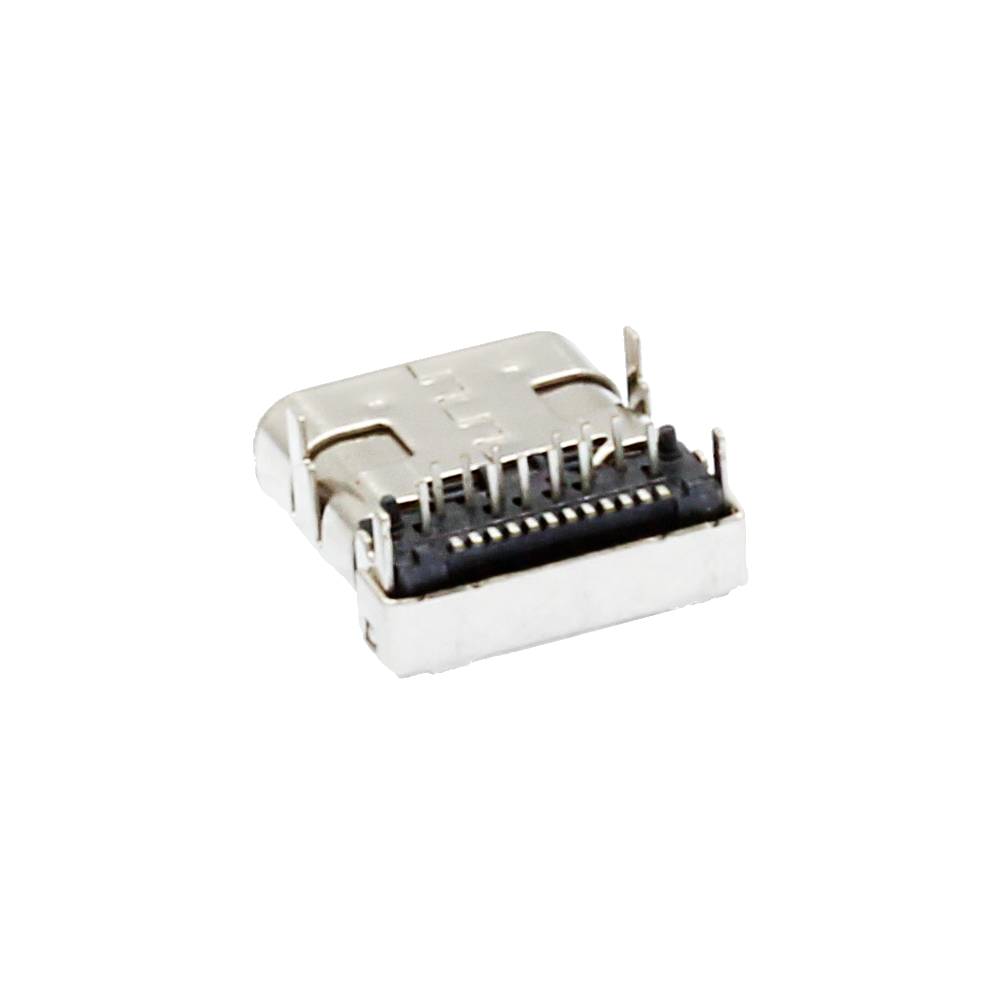

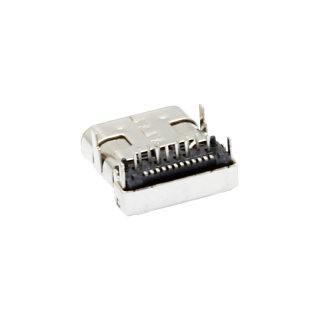

USB119- USB3.2 Receptacle Top Mount SMT Type

USB 3.2 Type C Receptacle Top Mount SMT Type

  • USB3.2 (20 Gbit/s)

  • SMT Type

  • Top Mount

  • 24 pin counts

  • Gold Finish on Contact Area, Tin Finish on Termination

  • Tape and Reel package

  • Mating / Relate Parts:

    •   - USB Type C Plug Connector
    Share：
    SERIES NO.
    USB119
    -
    CONTACT POSITIONS
    024
    -
    CONTACT PLATING (600: GF | 605: 5u AU | 630: 30u AU)
    -
    PACKAGE (3: Tape & Reel)
    3
    ADD INQUIRY
    DOWNLOAD

    Product
    Characteristics    		 Contact Pitch 0.5mm(0.02")
    Available Pin Counts 24
    Orientation Top-Mount
      　
    Mechanical &
    Environmental    		 Operating Temp. -40˚C~+85˚C
    Durability 10000 Mating Operations
    Vibration 50 to 500Hz in 15min.
    45 Mins in each X-Y-Z axis.

    Electrical
    Specifications    		 Current Rating 5A Max VBUS
    Voltage Rating 0
    Contact Resistance Initial: 40mΩ Max.
    After Stress:△10mΩ Max.
