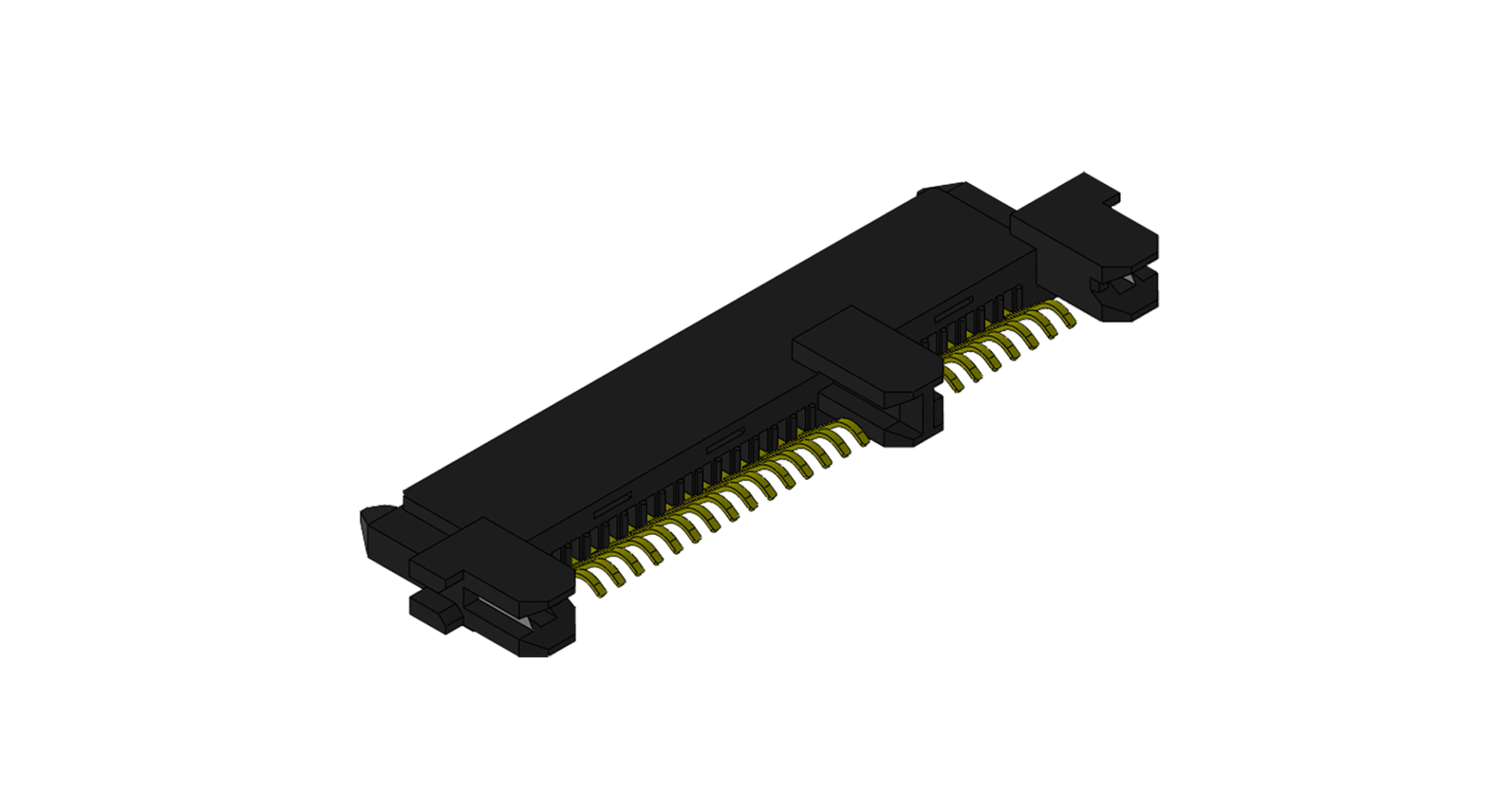

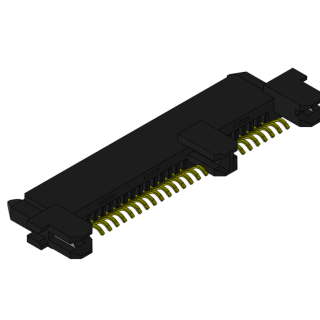

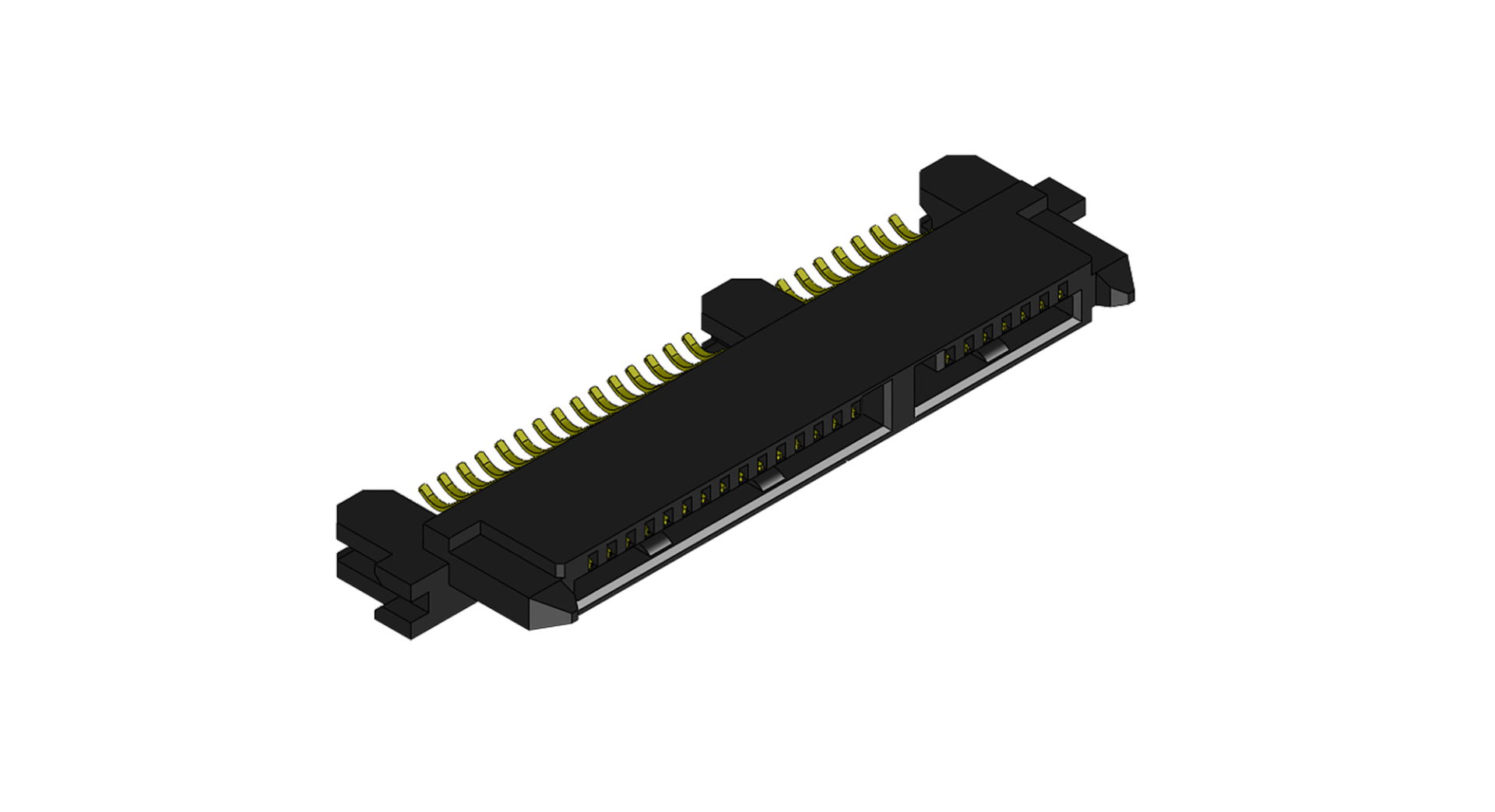

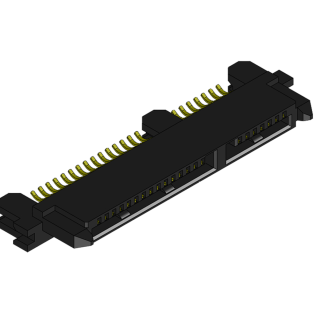

SSC11- SATA Receptacle Straddle Mount Type

Pitch 1.27mm SATA 7+15P Receptacle Straddle Mount Type

  • SATA 3.0 (6 Gbit/s)

  • SMT Type

  • Horizontal

  • Tray package

  • Mating / Relate Parts:

    •   - SATA Plug Connectors
    Share：
    SERIES NO.
    SSC11
    -
    CONTACT POSITIONS
    022
    -
    CONTACT PLATING (G6F1: Selective AU 15u)
    G6F1
    -
    PACKAGE (1: Tray)
    1
    ADD INQUIRY
    DOWNLOAD

    Product
    Characteristics    		 Contact Pitch 1.27mm(0.05")
    Available Pin Counts 7+15
    Orientation Horizontal
      　
    Mechanical &
    Environmental    		 Operating Temp. -45˚C~+85˚C
    Durability 500 Mating Operations
    Vibration 30 Mins in each X-Y-Z axis.

    Electrical
    Specifications    		 Current Rating 1.5A Max
    Voltage Rating 15V DC
    Contact Resistance Initial: 30mΩ Max.
    After Stress:△15mΩ Max.
