HOME PRODUCT SATA Connector Plug SSC03WB- SATA Combo Male Horizontal SMT Type
PRODUCTS

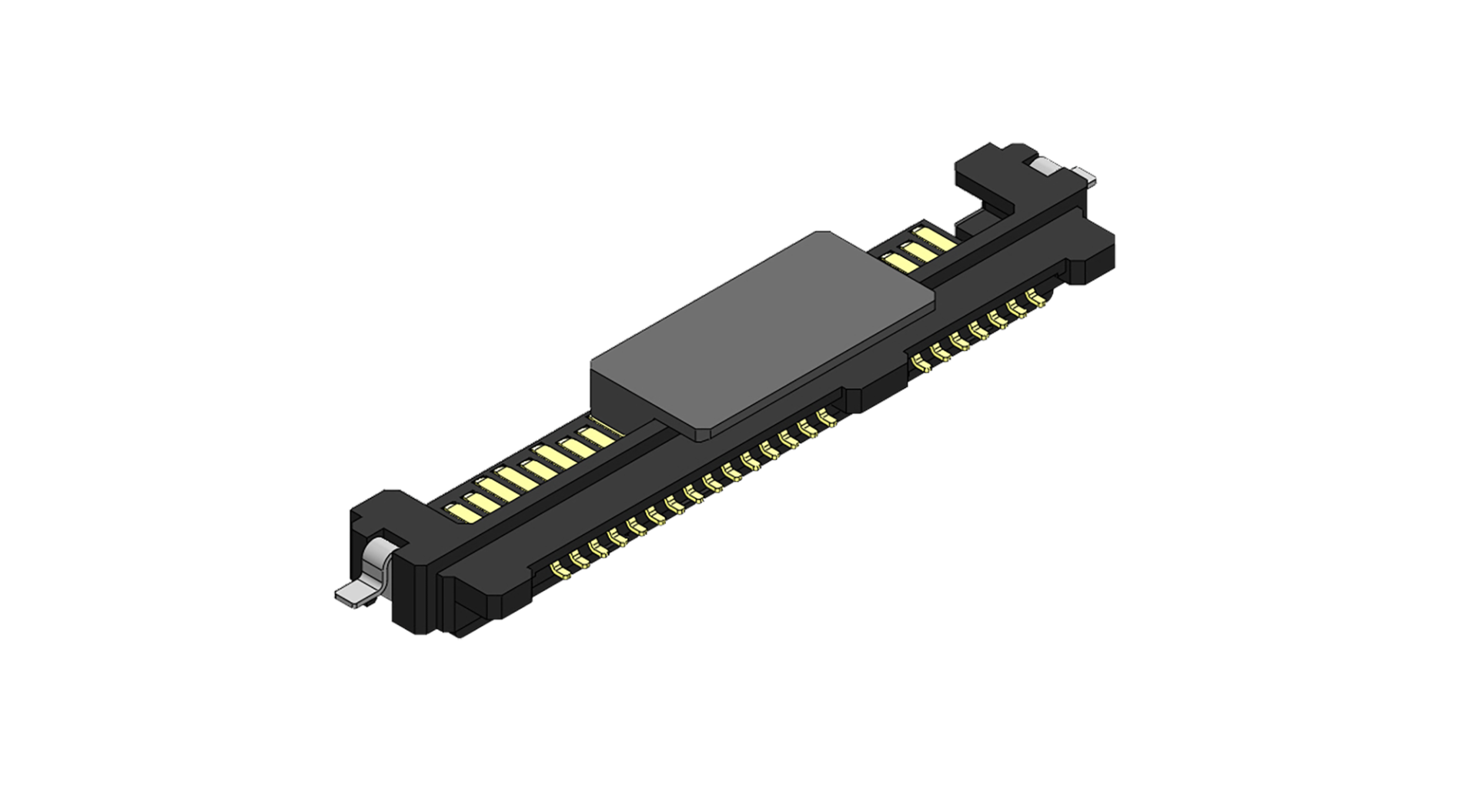

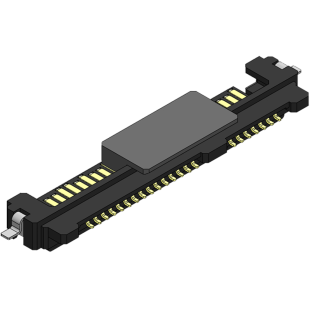

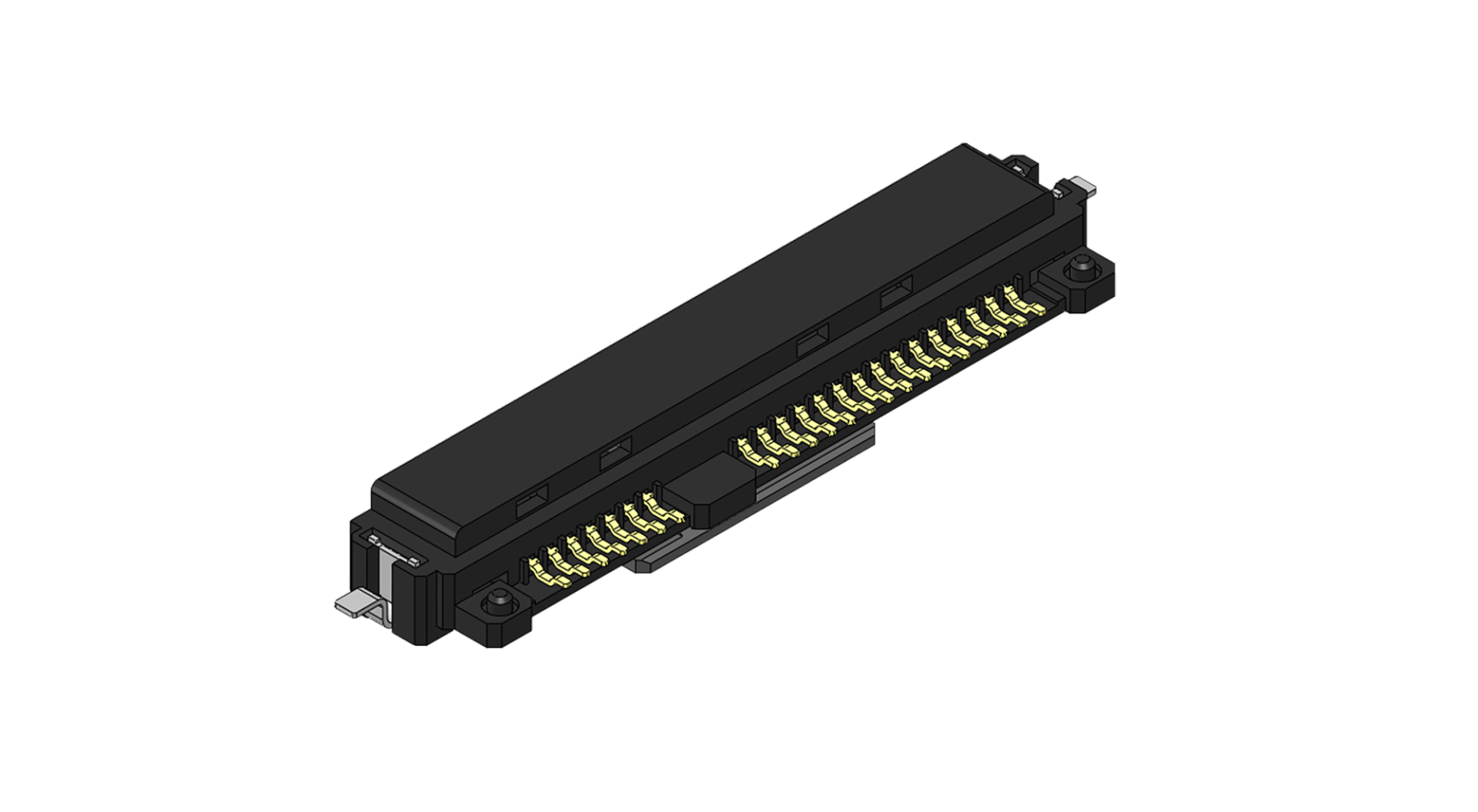

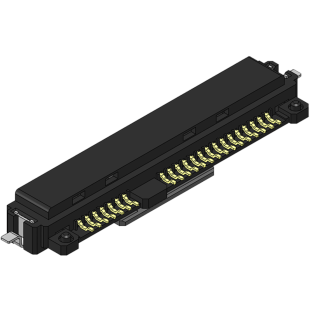

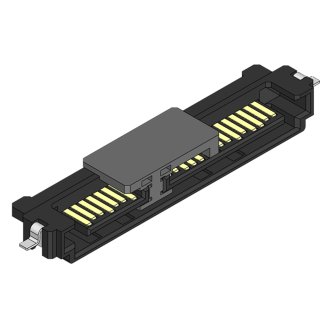

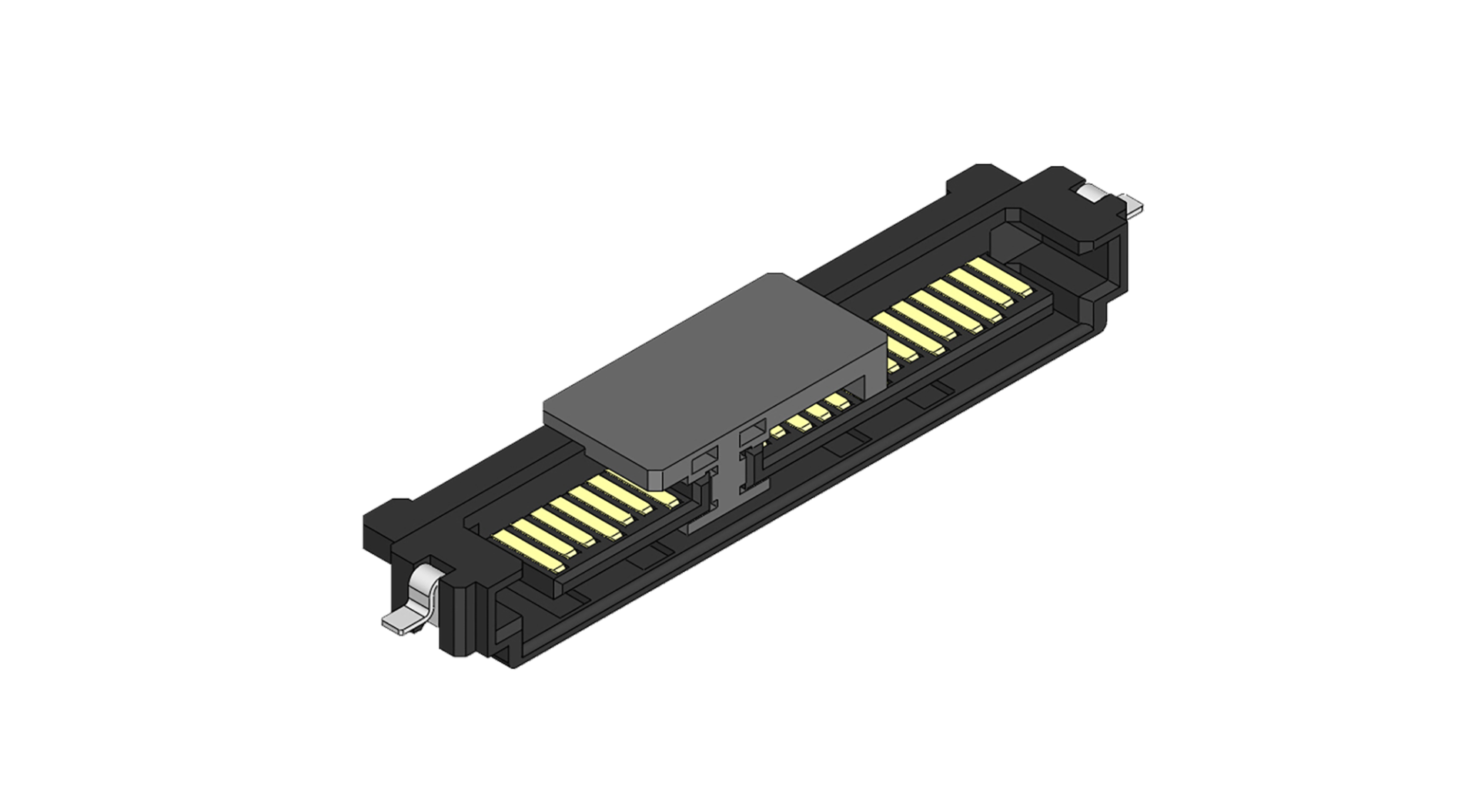

SSC03WB- SATA Combo Male Horizontal SMT Type

Pitch 1.27mm SATA Combo 22P Plug Horizontal SMT Type

  • SATA 3.0 (6 Gbit/s)

  • SMT Type

  • Horizontal

  • Tape and Reel package

  • Mating / Relate Parts:

    •   - SATA Receptacle Connectors
    Share：
    SERIES NO.
    SSC03WB
    -
    CONTACT POSITIONS
    022
    -
    CONTACT PLATING (G12F1: 3u AU | G6F1: 15u AU | G7F1: 30u AU)
    -
    PACKAGE (3: Tape & Reel)
    3
    ADD INQUIRY
    DOWNLOAD

    Product
    Characteristics    		 Contact Pitch 1.27mm(0.05")
    Available Pin Counts 22
    Orientation Horizontal
      　
    Mechanical &
    Environmental    		 Operating Temp. -40˚C~+85˚C
    Durability 500 Mating Operations
    Vibration 30 Mins in each X-Y-Z axis.

    Electrical
    Specifications    		 Current Rating 1.5A Max
    Voltage Rating 30V DC
    Contact Resistance Initial: 30mΩ Max.
    After Stress:△15mΩ Max.
