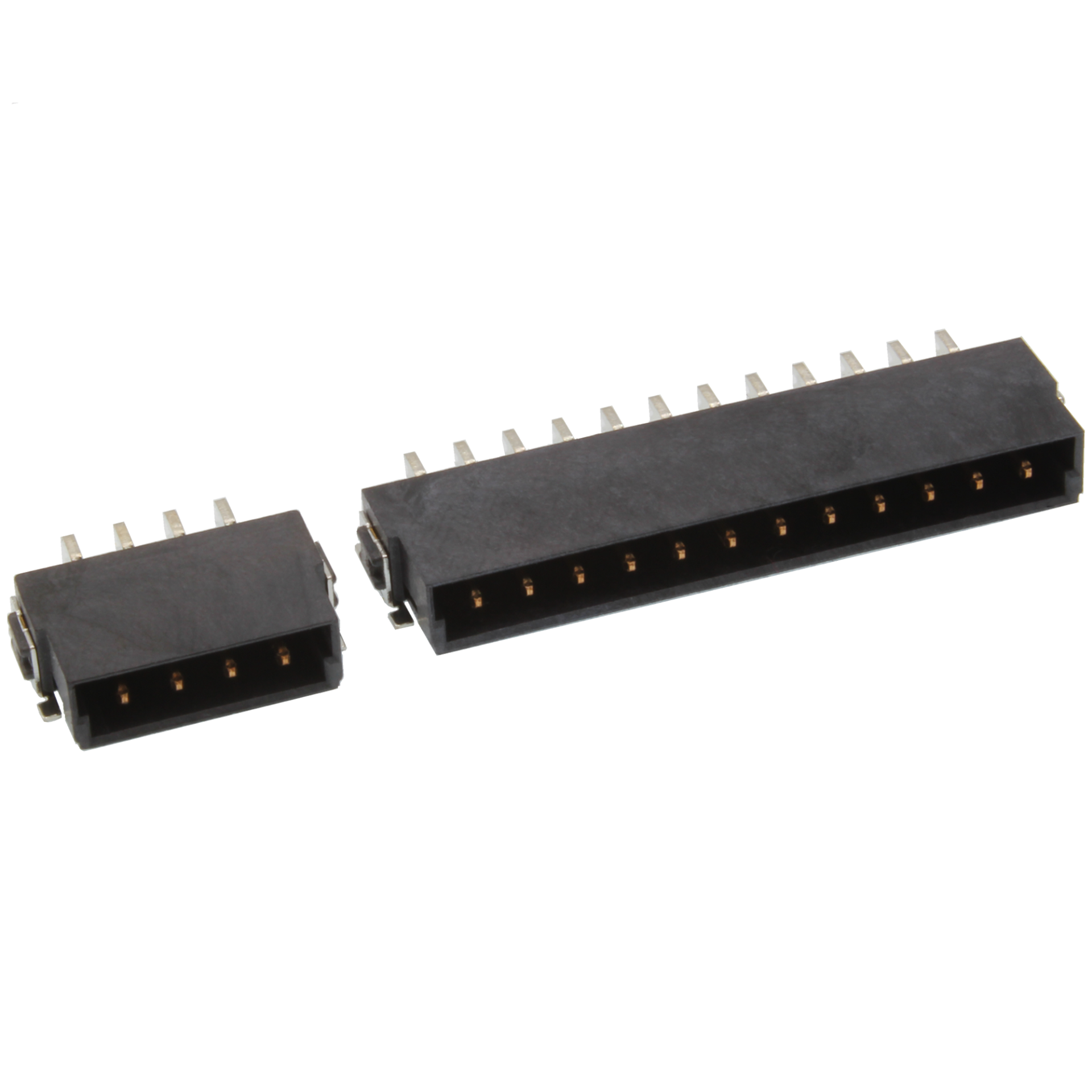

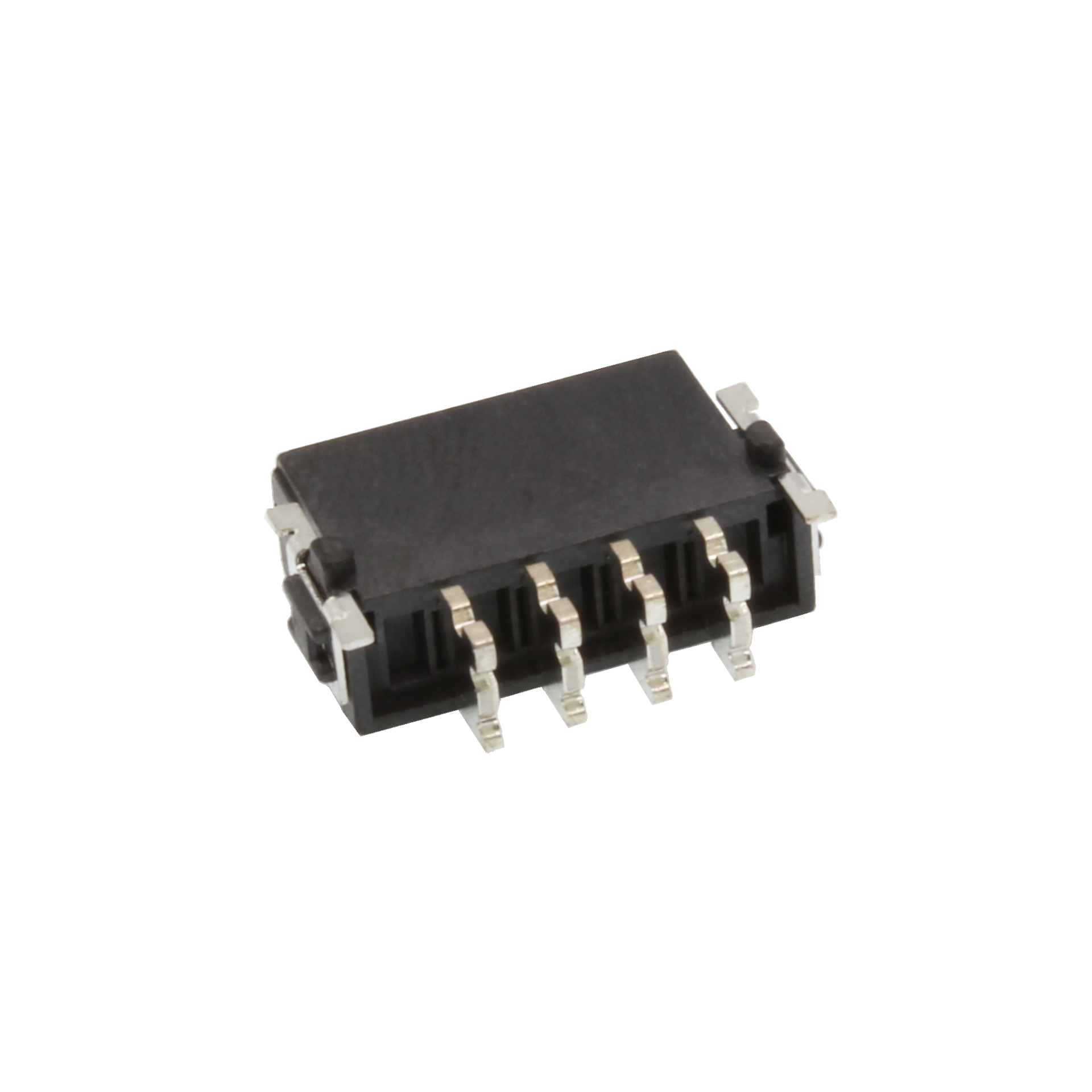

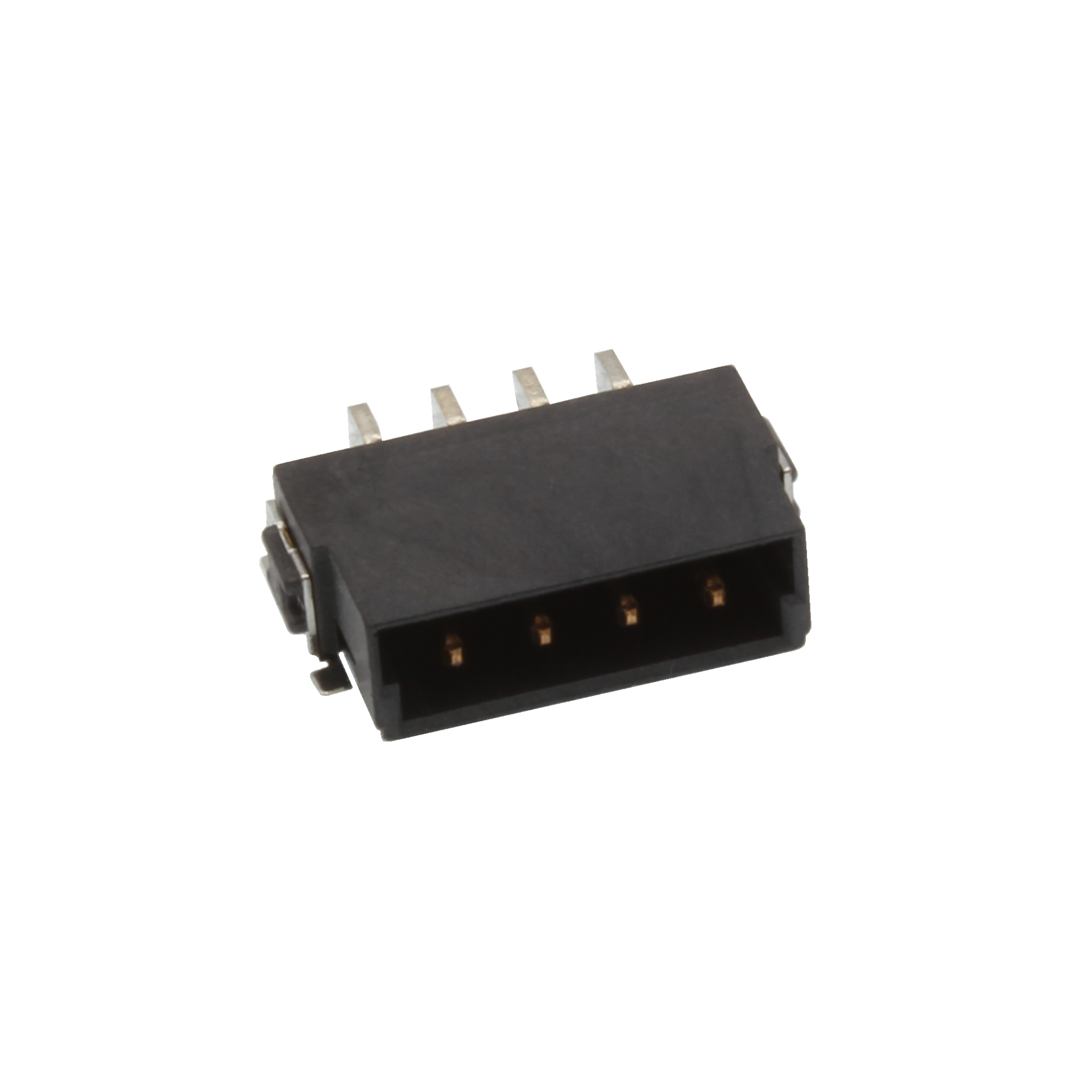

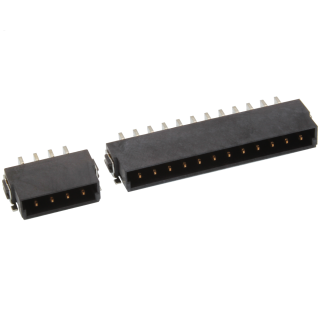

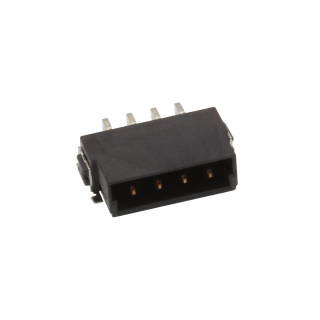

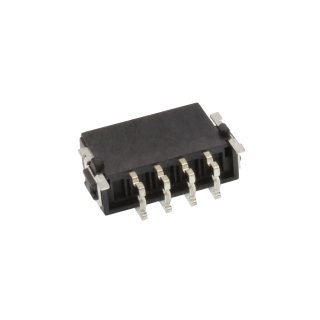

SMC13- Male Horizontal SMT Type
Pitch 2.54mm Male Board To Board Horizontal Connector SMT Type /THR Type
2~12 Pin Counts Option
Gold Finish on Contact Area, Tin Finish on Termination
Tape and Reel Package
Mating / Relate Parts:
- SMC11 - Horizontal Board to Board Female connector
- SMC12 - Vertical Board to Board Female connector
- SMC11 - Horizontal Board to Board Female connector
- SMC12 - Vertical Board to Board Female connector
SERIES NO.
SMC13
-
CONTACT POSITIONS
-
CONTACT PLATING (600: GF | 605: 5u AU | 630: 30u AU)
-
PACKAGE (3: Tape & Reel)
3
| Product Characteristics |
Contact Pitch | 2.54mm(0.10") |
| Available Pin Counts | 2 to 12 | |
| Orientation | Horizontal | |
| Mechanical & Environmental |
Operating Temp. | -55˚C~+125˚C |
| Durability | 500 Mating Operations | |
| Vibration | 10 to 2000Hz in 20min. 4 Hours in each X-Y-Z axis. |
|
| Electrical Specifications |
Current Rating | 24A Max per Contact |
| Voltage Rating | 180V | |
| Contact Resistance | Initial: 25mΩ Max. After Stress:△10mΩ Max. |

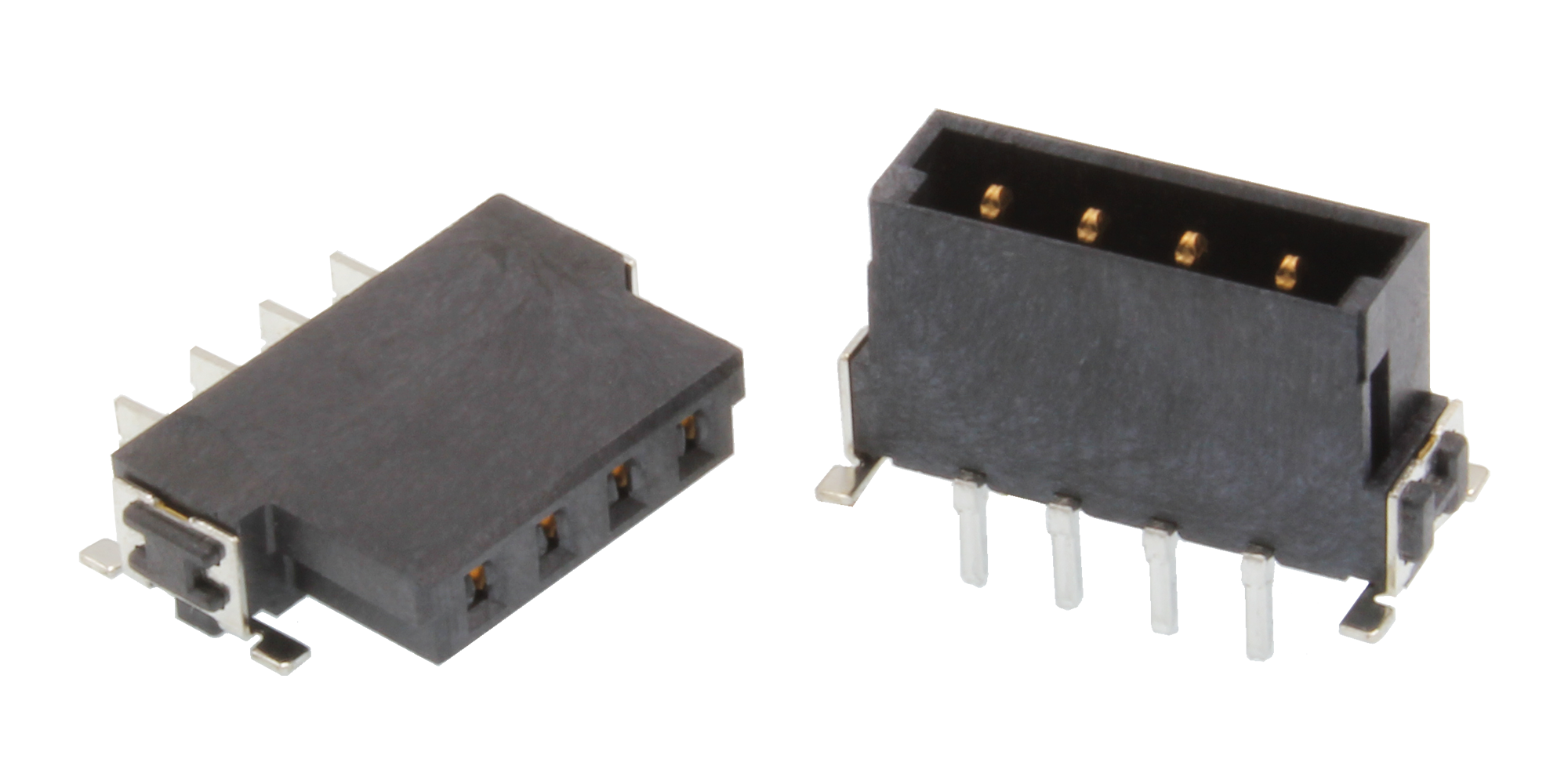

SMC Power
SMC Power connectors are high power interconnect solutions with a 2.54 mm pitch, specifically engineered for high current transmission between 18A and 24A. Ideal for applications requiring reliable 24A performance, these connectors support modular configurations with flexible contact options ranging from 2 to 12. Available in both SMT and THR formats, SMC Power connectors offer straight and angled designs for diverse layout requirements, including parallel (mezzanine) board, extender card, and motherboard-to-daughtercard configurations.
