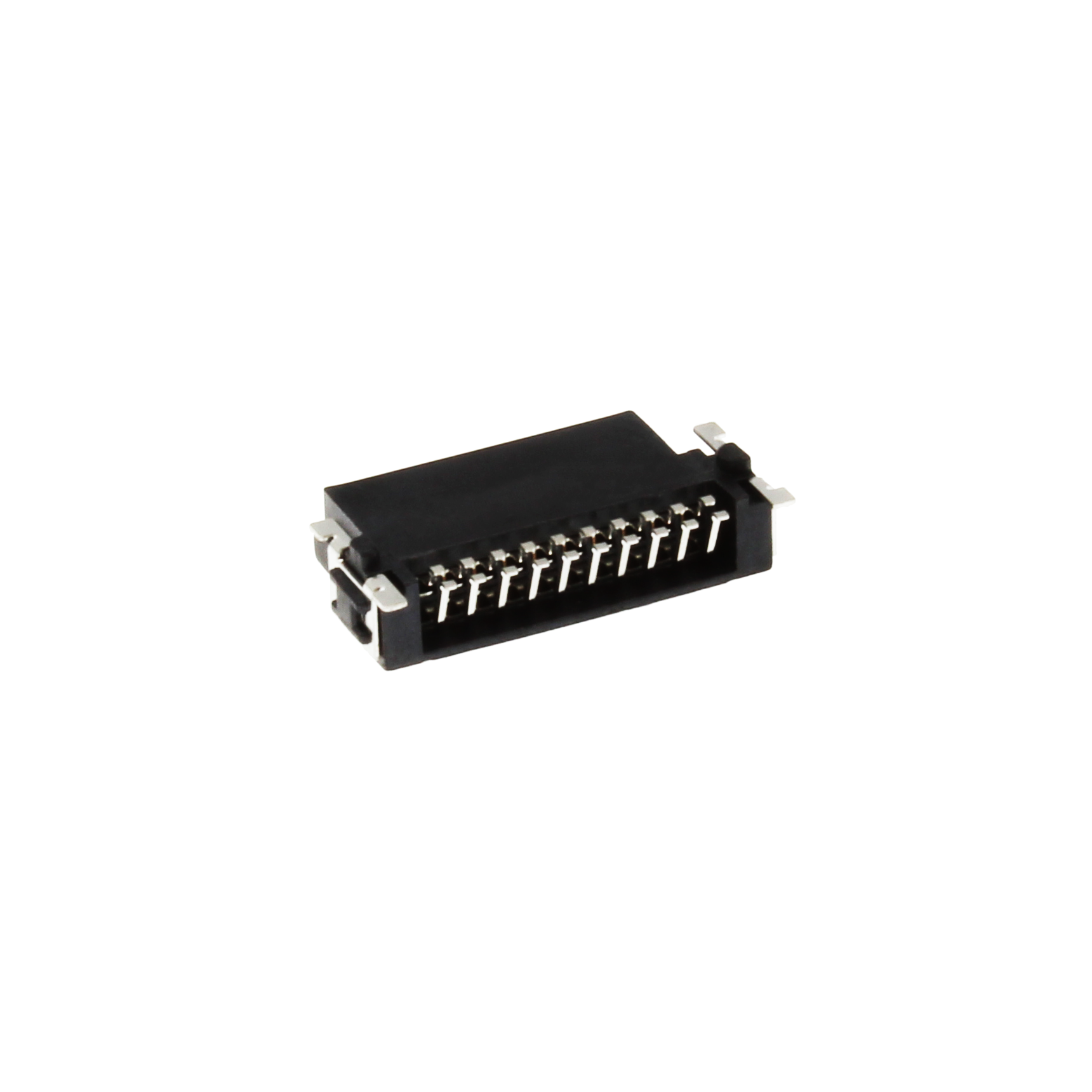

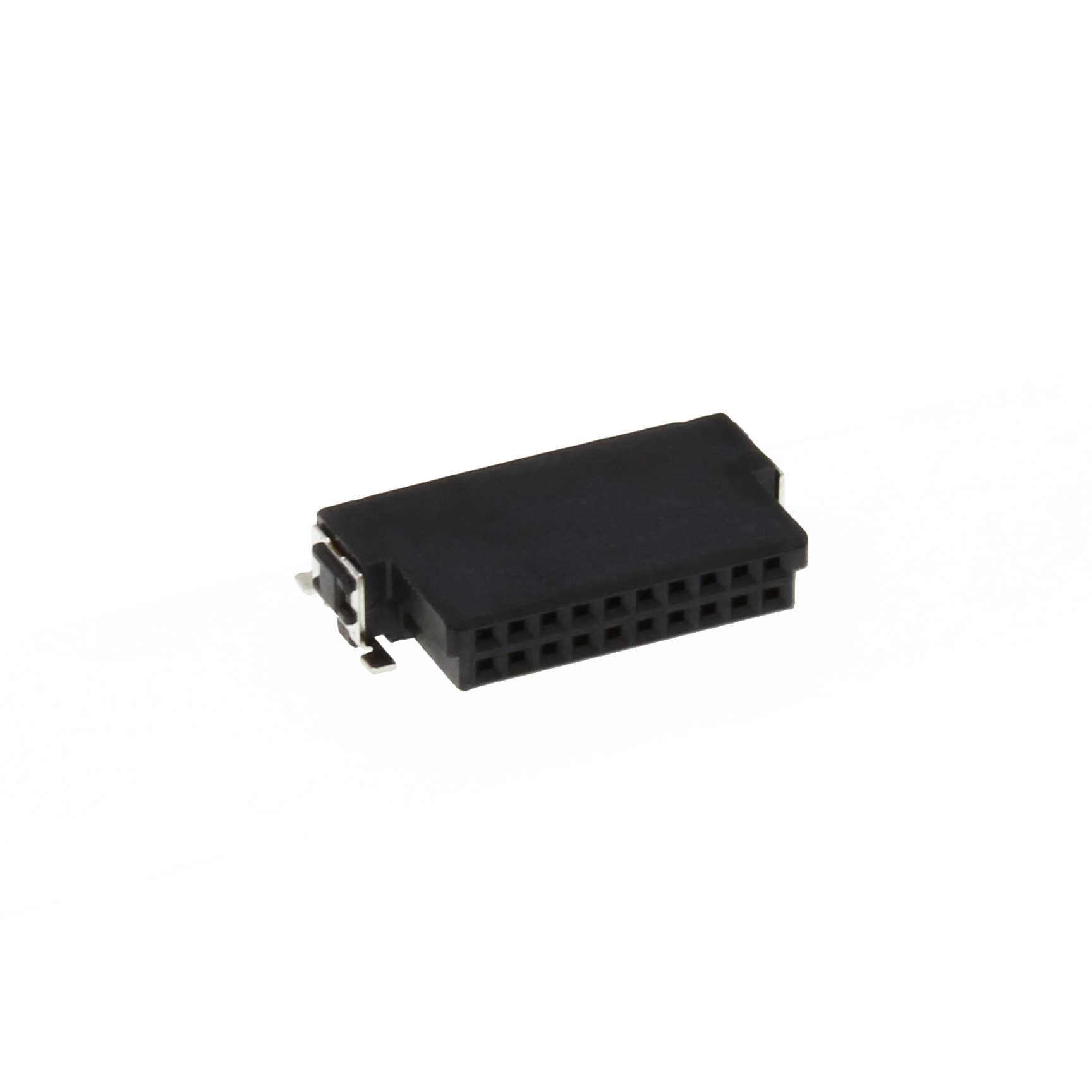

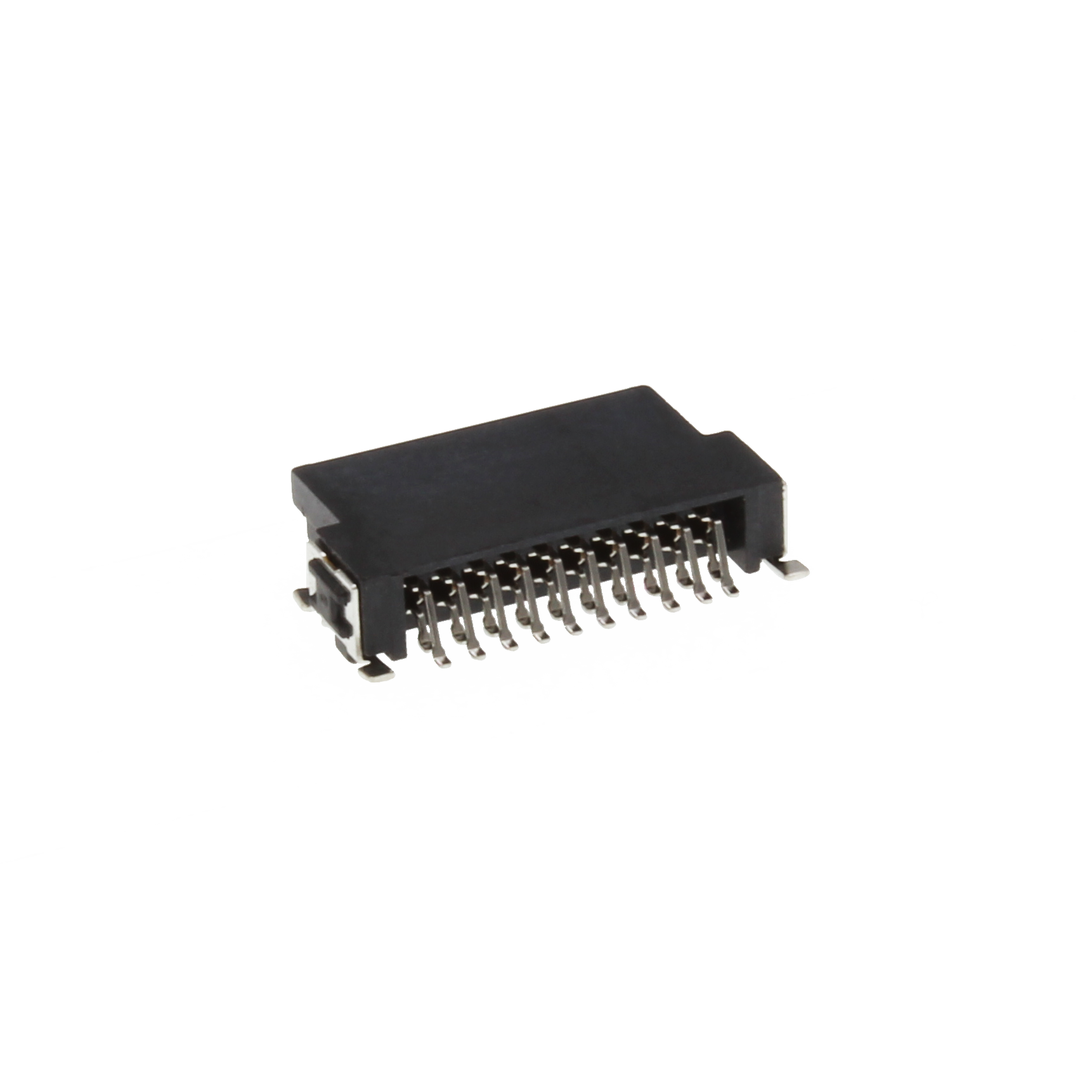

SMC01- Female Horizontal SMT Type

Pitch 1.27mm Dual Row Female Board To Board Horizontal Connector SMT Type /THR Type

  • 12~80 pin counts option

  • Gold finish on contact area, Tin finish on termination

  • Tape and Reel package

  • Mating / Relate Parts:

    •   - SMC03 - Horizontal Board to Board Male connector
      - SMC04 - Vertical Board to Board Male connector
    Share：
    SERIES NO.
    SMC01
    -
    CONTACT POSITION
    -
    CONTACT PLATING (600: GF | 605: 5u AU | 630: 30u AU)
    -
    PACKAGE (3: Tape & Reel)
    3
    ADD INQUIRY
    DOWNLOAD

    Product
    Characteristics    		 Contact Pitch 1.27mm(0.05")
    Available Pin Counts 12 to 80
    Orientation Horizontal
      　
    Mechanical &
    Environmental    		 Operating Temp. -55˚C~+125˚C
    Durability 500 Mating Operations
    Vibration 10 to 2000Hz in 20min.
    4 Hours in each X-Y-Z axis.

    Electrical
    Specifications    		 Current Rating 1.7A Max per Contact
    Voltage Rating 100V AC
    Contact Resistance Initial: 25mΩ Max.
    After Stress:△10mΩ Max.
