HOME PRODUCT 0.65mm Pitch USB Type Micro-B MCB32CM- USB3.0 Female Vertical SMT Type
PRODUCTS

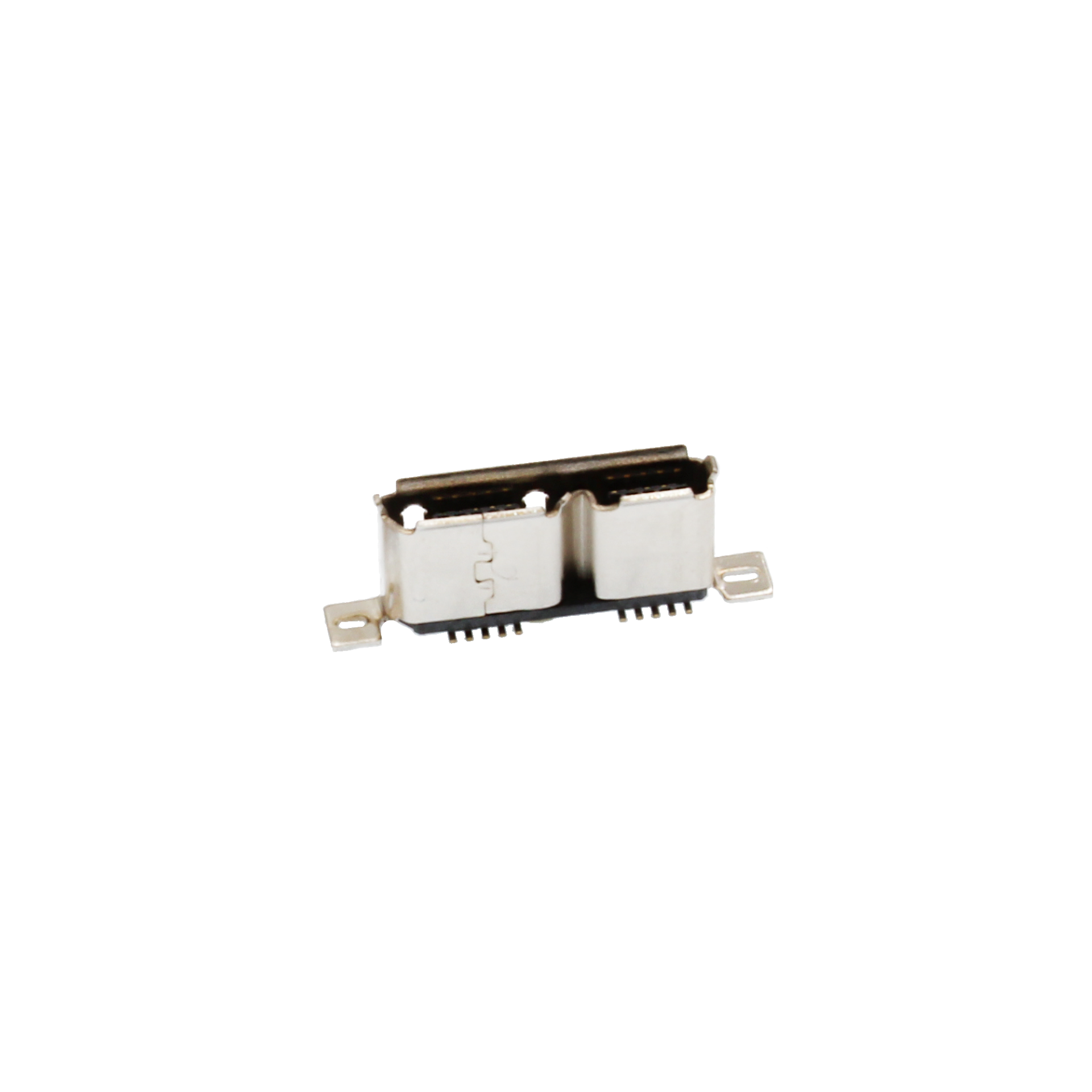

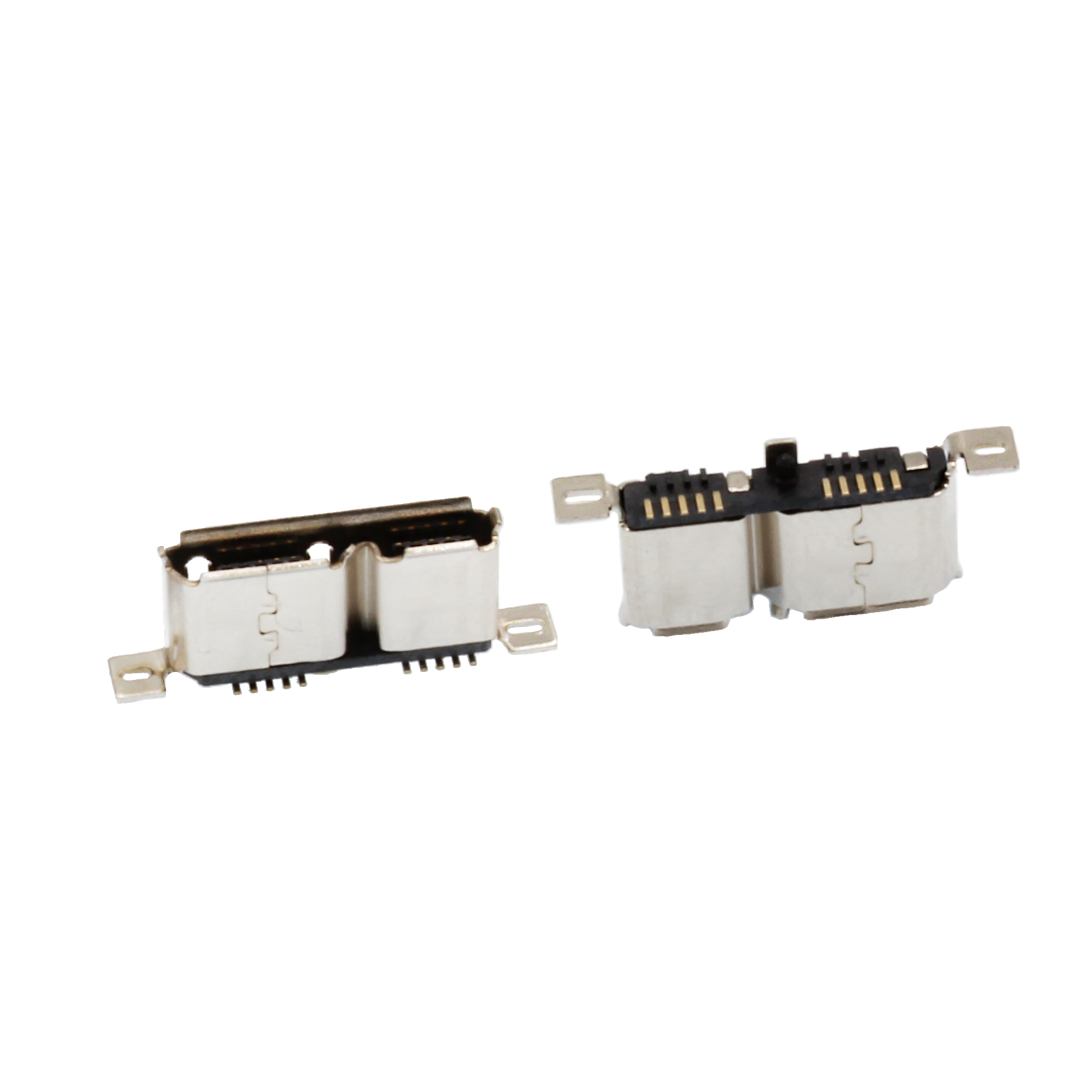

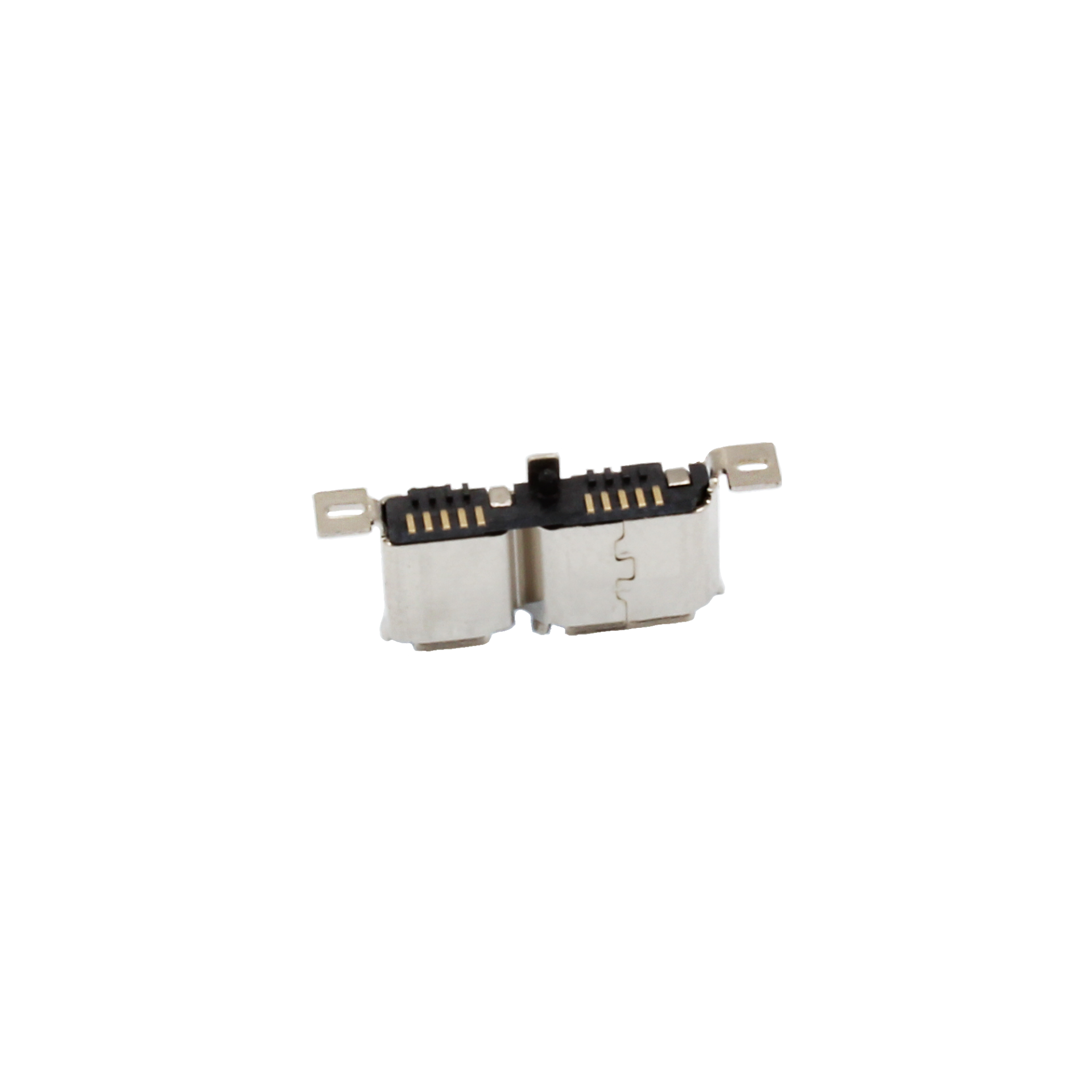

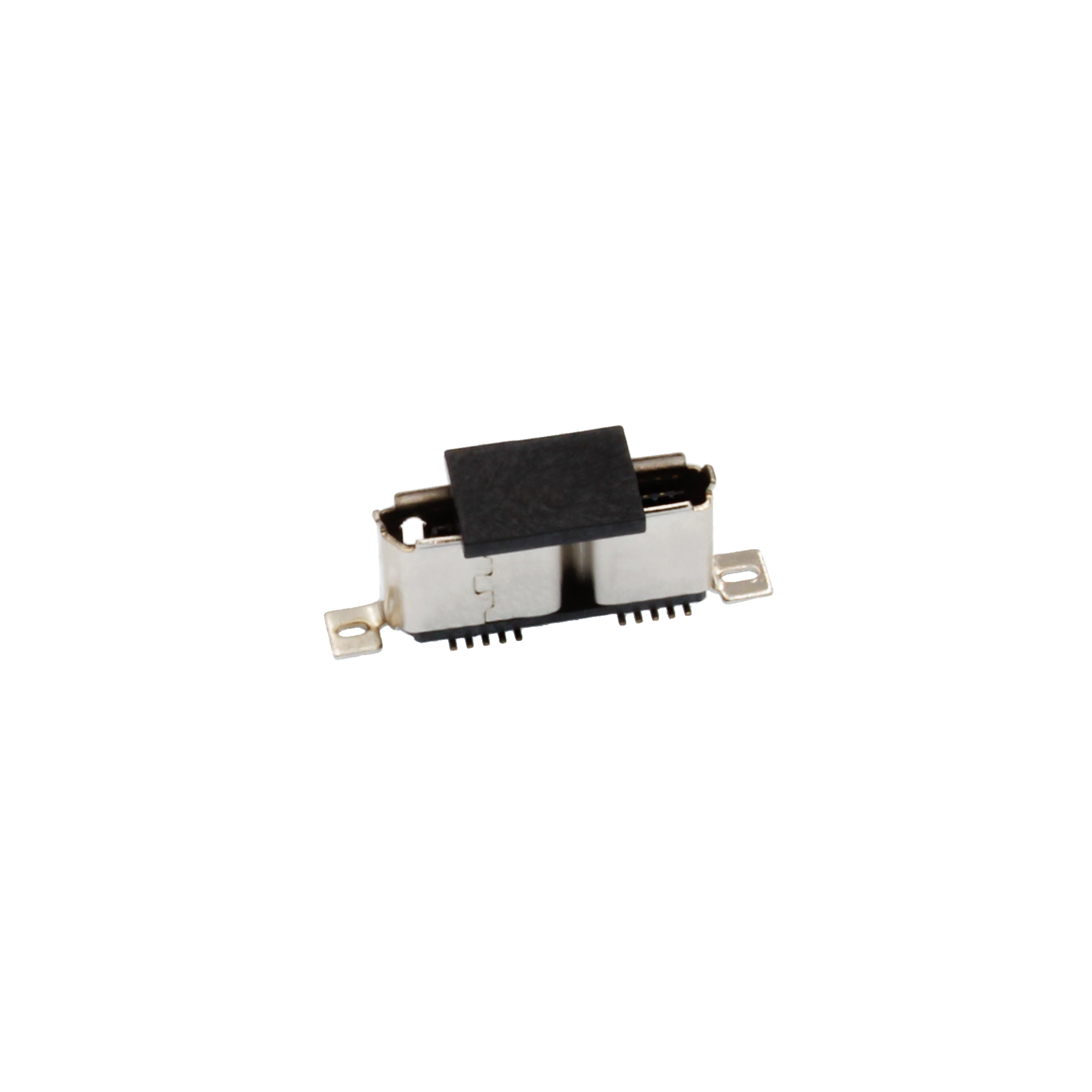

MCB32CM- USB3.0 Female Vertical SMT Type

USB 3.0 Type Micro-B Receptacle Vertical SMT Type

  • USB3.0 (5 Gbit/s)

  • SMT Type

  • Vertical

  • 10 pin counts

  • Tape and Reel package
    • Share：
    SERIES NO.
    MCB32CM
    -
    CONTACT POSITIONS
    010
    -
    CONTACT PLATING (G23: 30u AU)
    G23
    -
    PACKAGE (3: Tape & Reel)
    3
    ADD INQUIRY
    DOWNLOAD

    Product
    Characteristics    		 Contact Pitch 0.65mm(0.03")
    Available Pin Counts 10
    Orientation Verticle
      　
    Mechanical &
    Environmental    		 Operating Temp. -40˚C~+85˚C
    Durability 10000 Mating Operations
    Vibration 15 Mins in each X-Y-Z axis.

    Electrical
    Specifications    		 Current Rating 1.8A Max Pin1 & Pin5
    0,25A Max Other Pins
    Voltage Rating 30V DC/AC
    Contact Resistance 30mΩ Max. (Pin1 & Pin5)
    50mΩ Max. (Others Pins)
