HOME PRODUCT 0.5mm Pitch M.2 Connector M2320M- 3.2mm Height (Key M)
PRODUCTS

M2320M- 3.2mm Height (Key M)

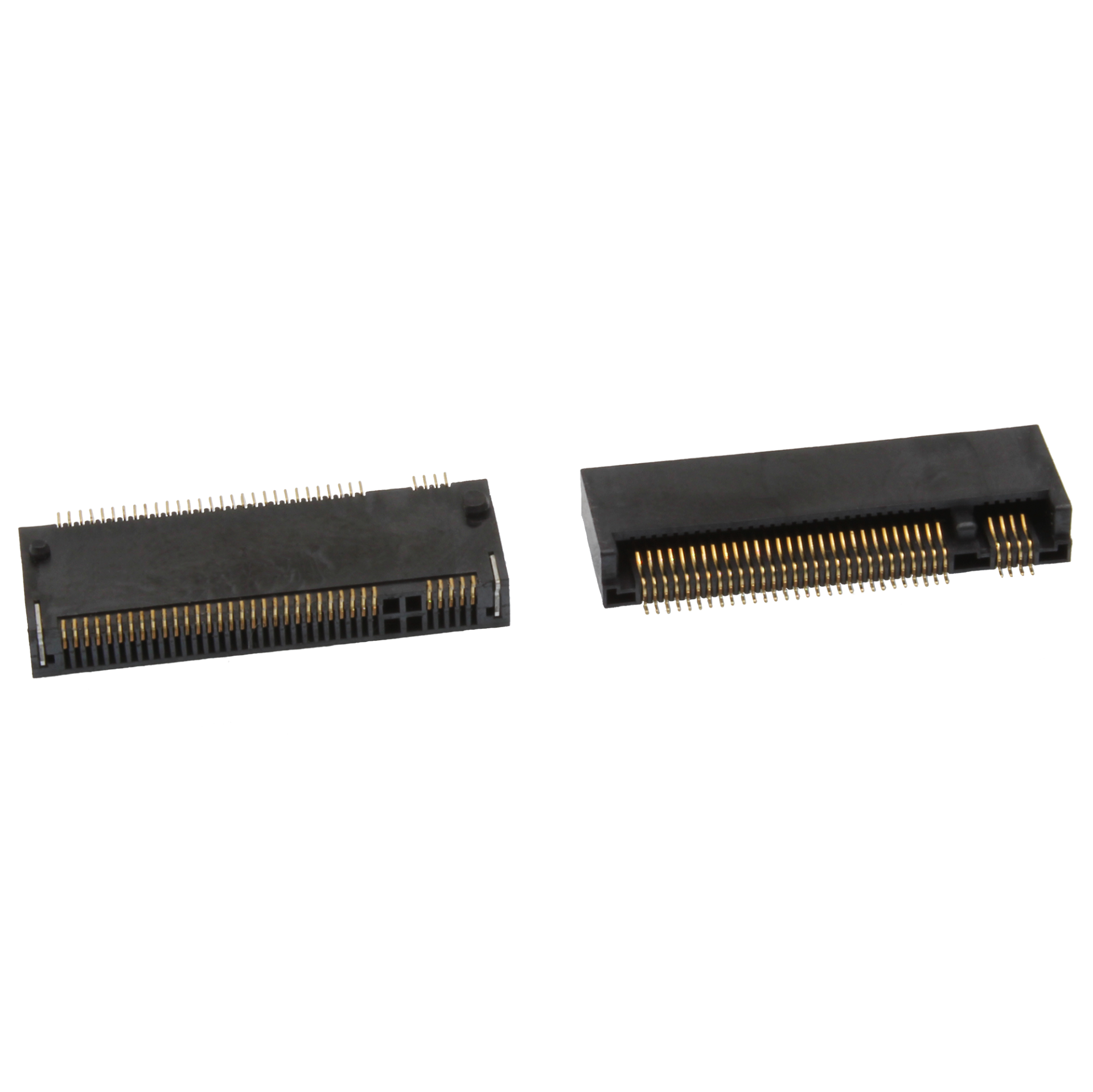

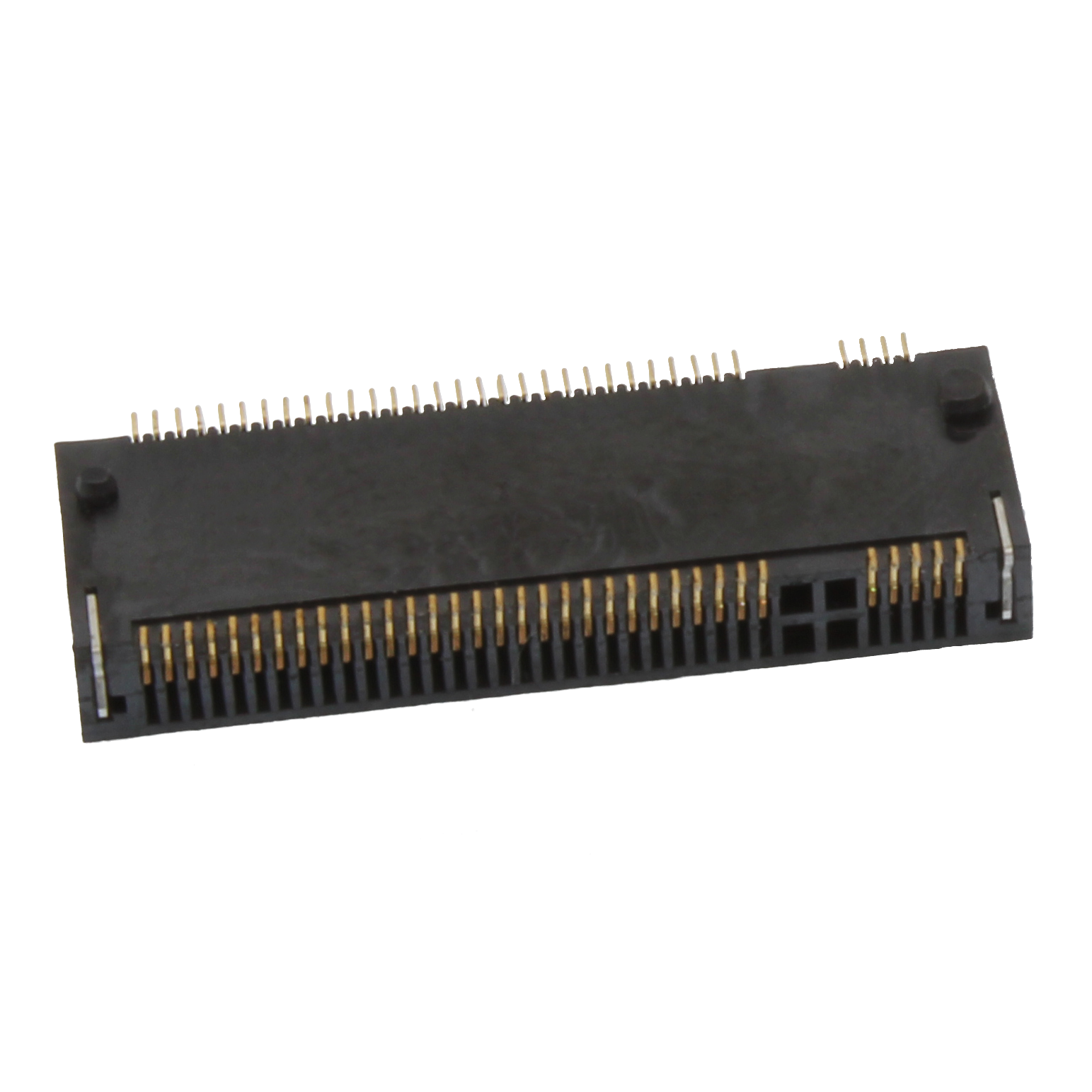

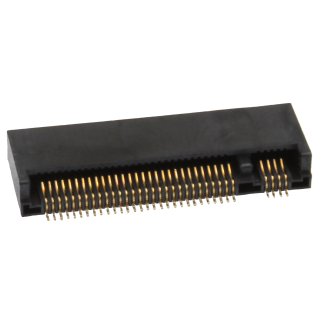

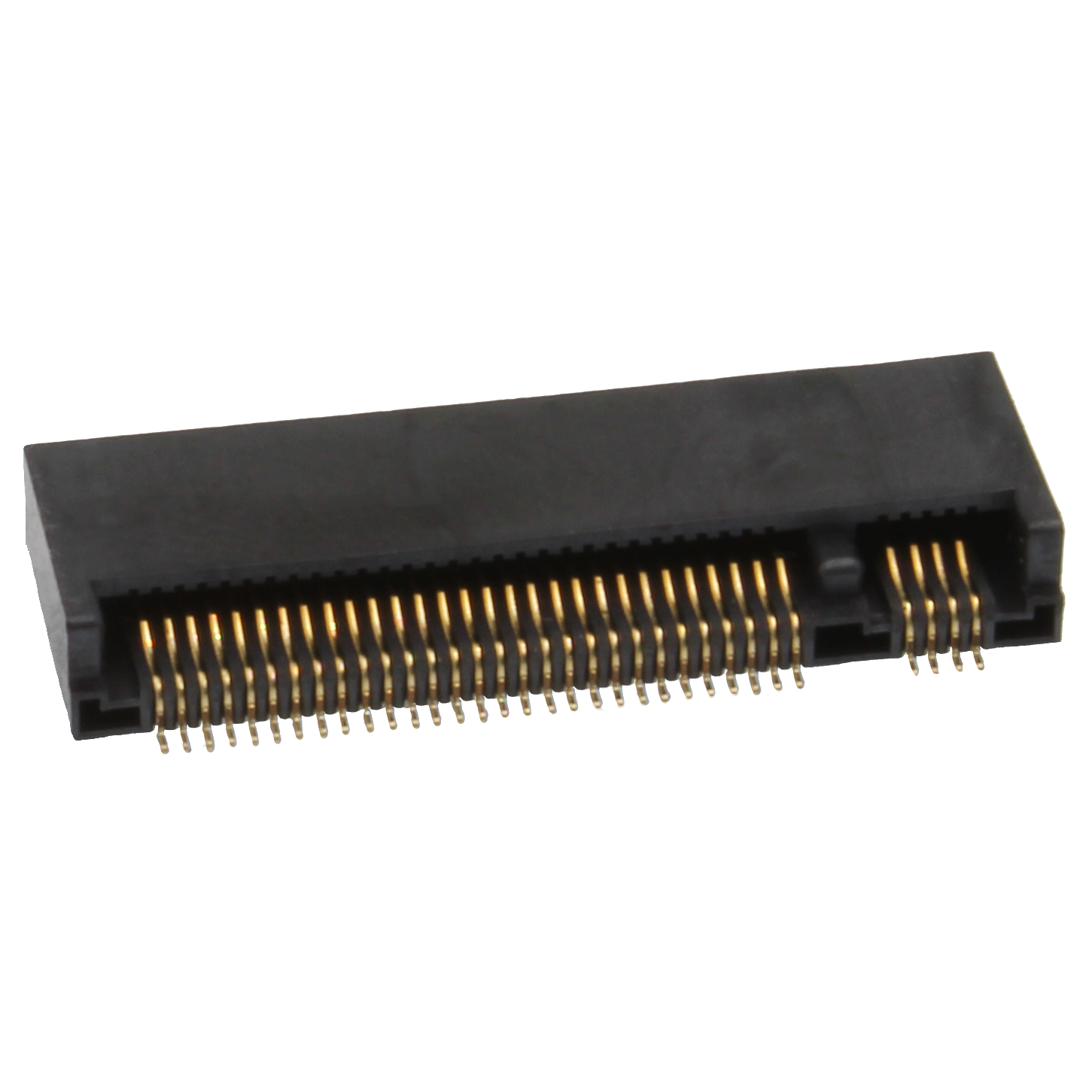

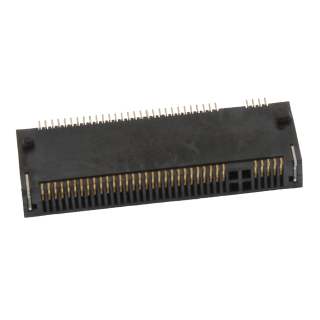

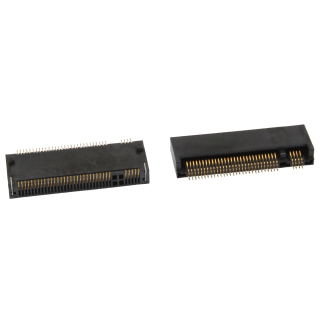

0.5mm Pitch M.2 Connector Height 3.2mm (Key M)

  • 67 Pin Counts

  • PCIe-Gen4 (16 Gbit/s)

  • Horizontal

  • SMT Type

  • Tape and Reel package

  • Mating / Relate Parts:

    •   - USB Type C Connctors
    Share：
    SERIES NO.
    M2320M
    -
    CONTACT POSITIONS
    067
    -
    CONTACT PLATING (G24: Gold Flash)
    G24
    -
    PACKAGE (3: Tape & Reel)
    3
    ADD INQUIRY
    DOWNLOAD

    Product
    Characteristics    		 Contact Pitch 0.5mm(0.02")
    Available Pin Counts 67
    Orientation Horizontal
      　
    Mechanical &
    Environmental    		 Operating Temp. -40˚C~+80˚C
    Durability 60 Mating Operations
    Vibration 2 Hours in each X-Y-Z axis.

    Electrical
    Specifications    		 Current Rating 0.5A Per Pin
    Voltage Rating 50 VAC
    Contact Resistance Initial: 55mΩ Max.
    After Stress:△20mΩ Max.
