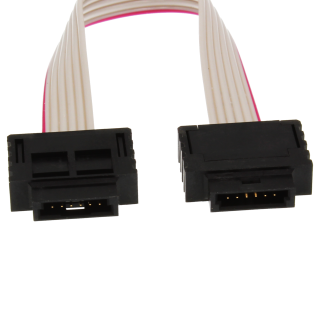

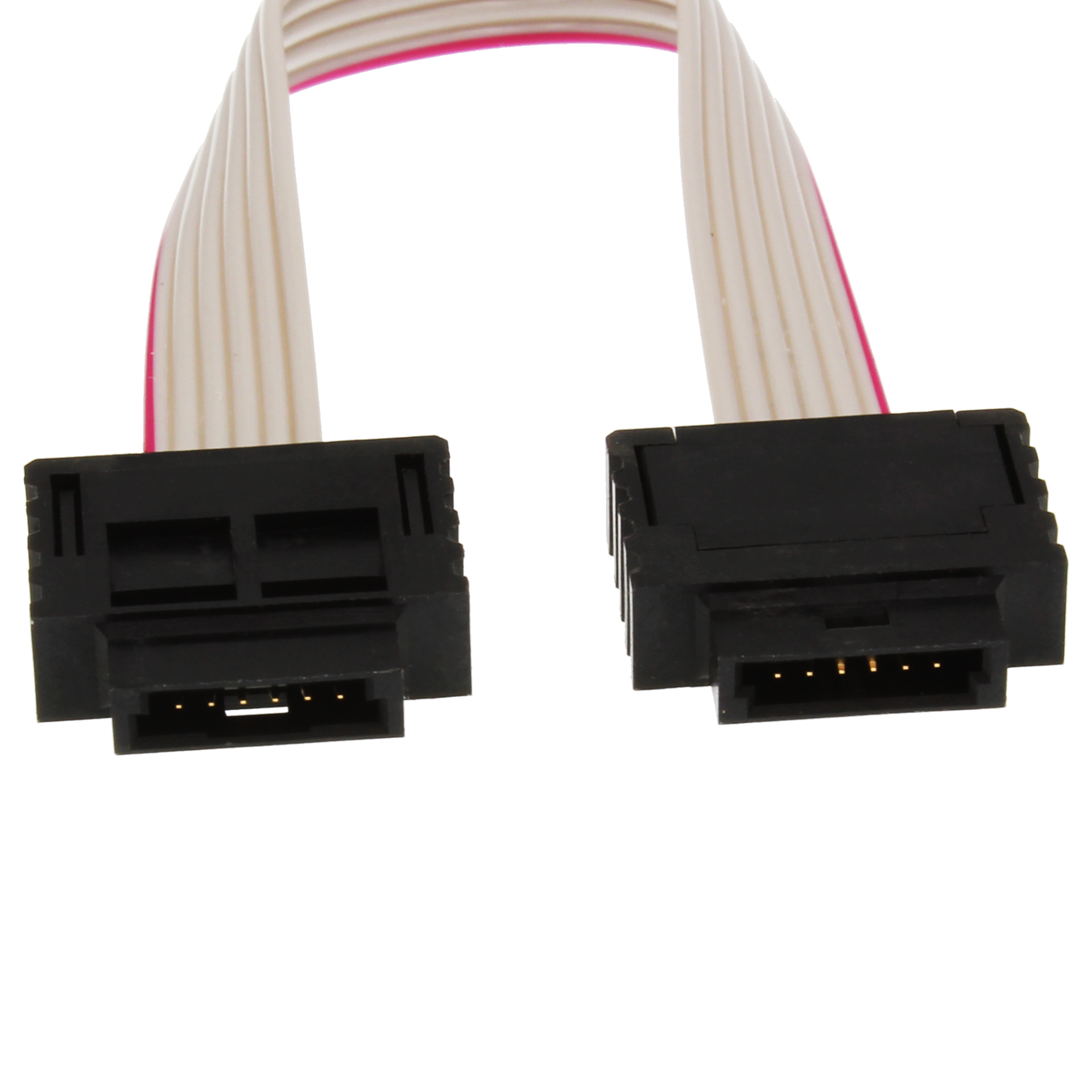

CABSWC04- Male Wire To Board Solder Type Cable Assembly

Pitch 1.27mm Single Row Male Wire To Board Solder Type PVC Cable Assembly

  • 2~12 Pin Counts Option

  • Gold Finish on Contact Area, Tin Finish on Termination

  • PVC Cable

  • Custom Cable Length

  • Mating / Relate Parts:

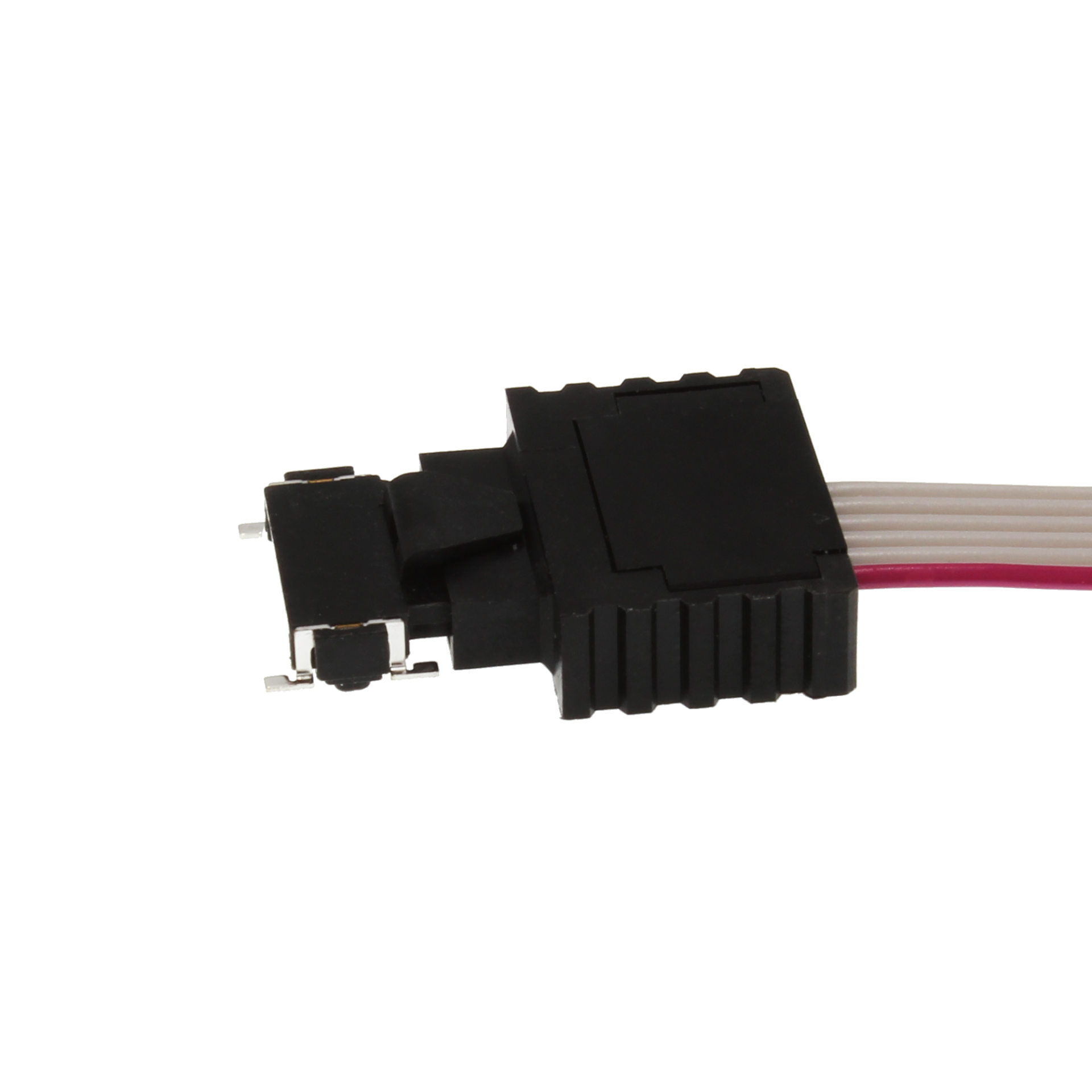

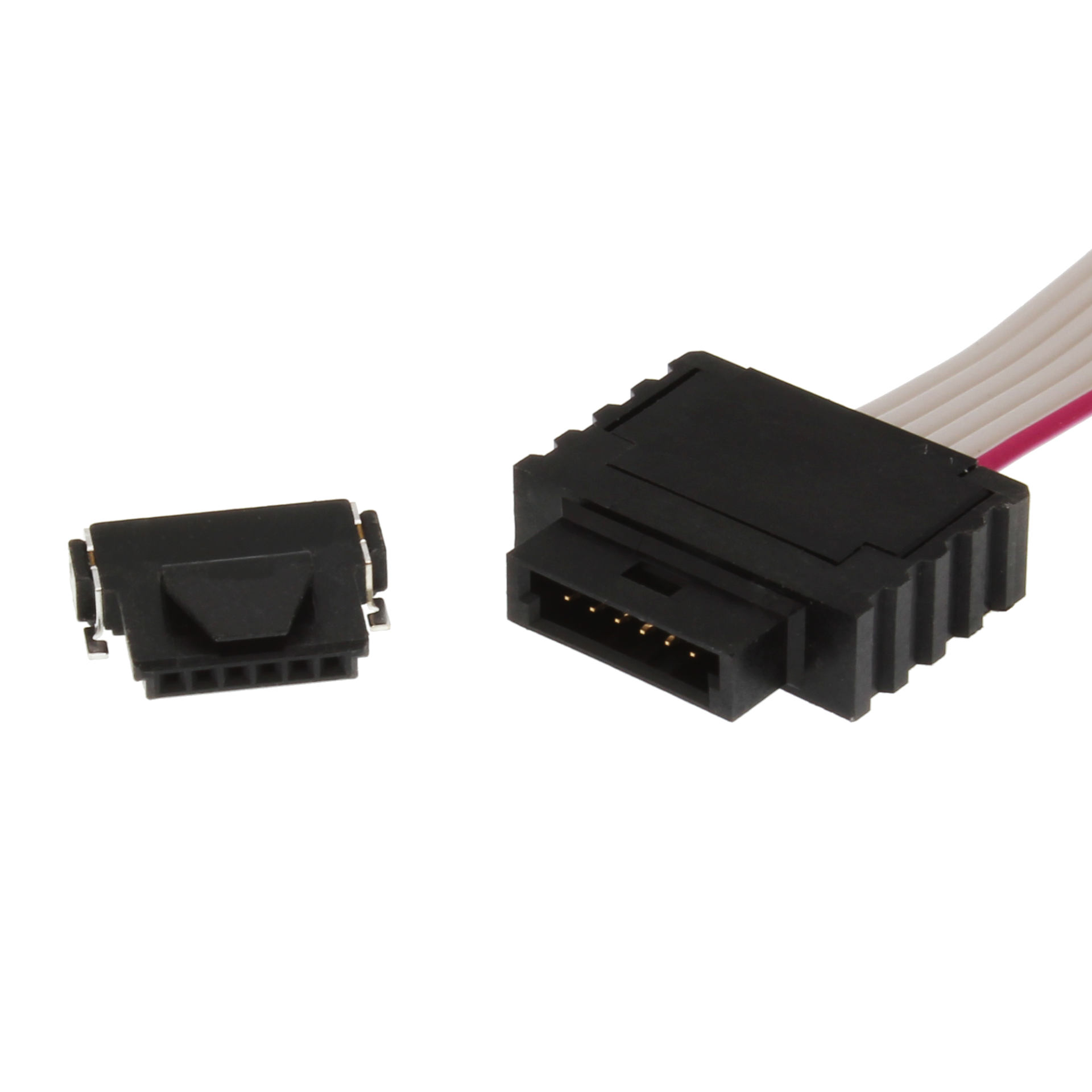

    •   - SMC05 - Horizontal Board to Board Female Connector
      - CABSWC03: Female Wire To Board Solder Type PVC Cable Assembly
    Share：
    SERIES NO.
    CABSWC04
    -
    CONTACT POSITIONS
    -
    CABLE LENGTH (mm)
    -
    CABLE MATERIAL (1: PVC)
    1
    -
    CONTACT PLATING (600: GF | 605: 5u AU | 630: 30u AU)
    -
    PACKAGE (0: Bag)
    0
    ADD INQUIRY
    DOWNLOAD

    Product
    Characteristics    		 Contact Pitch 1.27mm(0.05")
    Available Pin Counts 2 to 12
    Orientation Cable Assembly
      　
    Mechanical &
    Environmental    		 Operating Temp. -20˚C~+105˚C
    Durability 500 Mating Operations
    Vibration 10 to 2000Hz in 20min.
    4 Hours in each X-Y-Z axis.

    Electrical
    Specifications    		 Current Rating 3A Max per Contact
    Voltage Rating 100V AC
    Contact Resistance Initial: 25mΩ Max.
    After Stress:△10mΩ Max.
