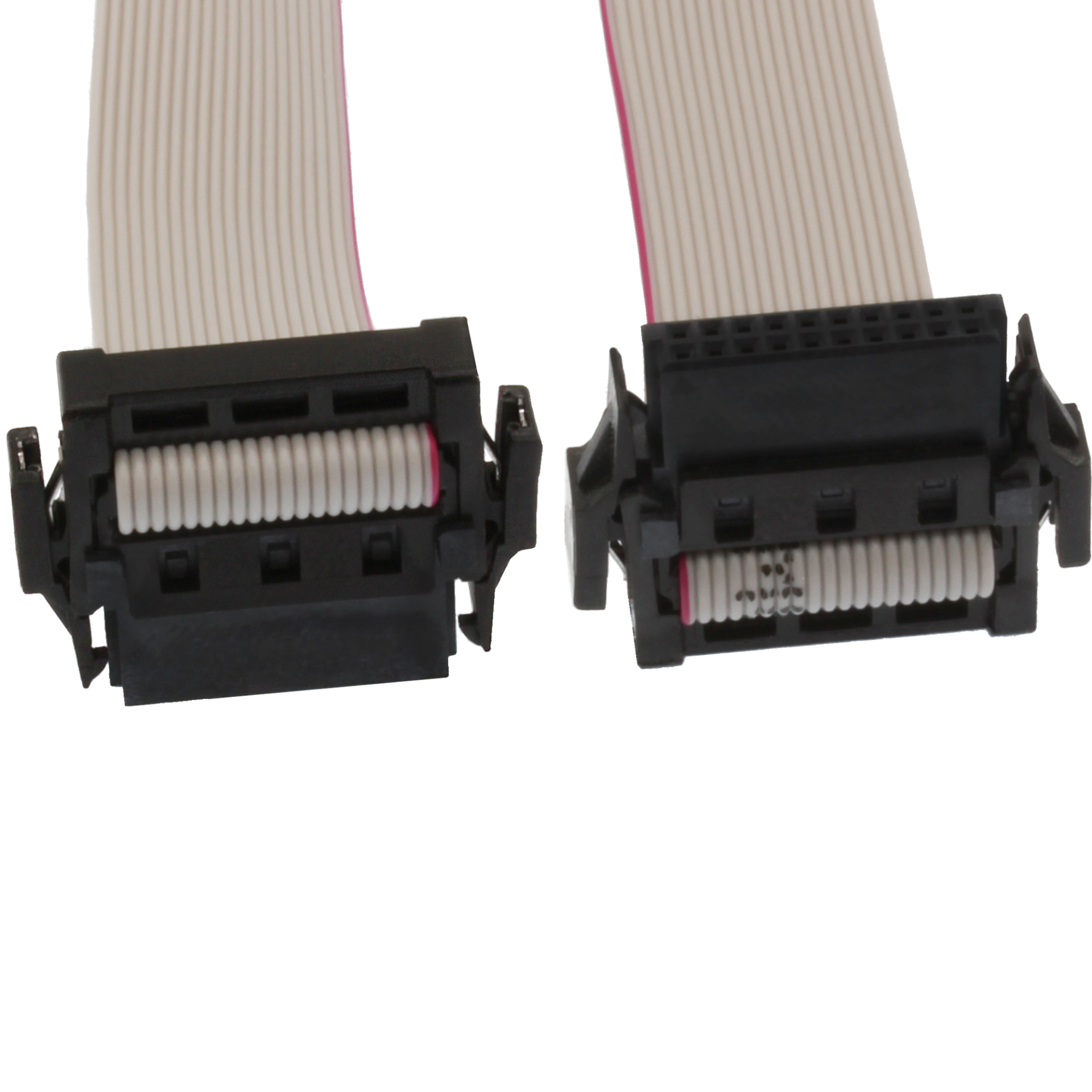

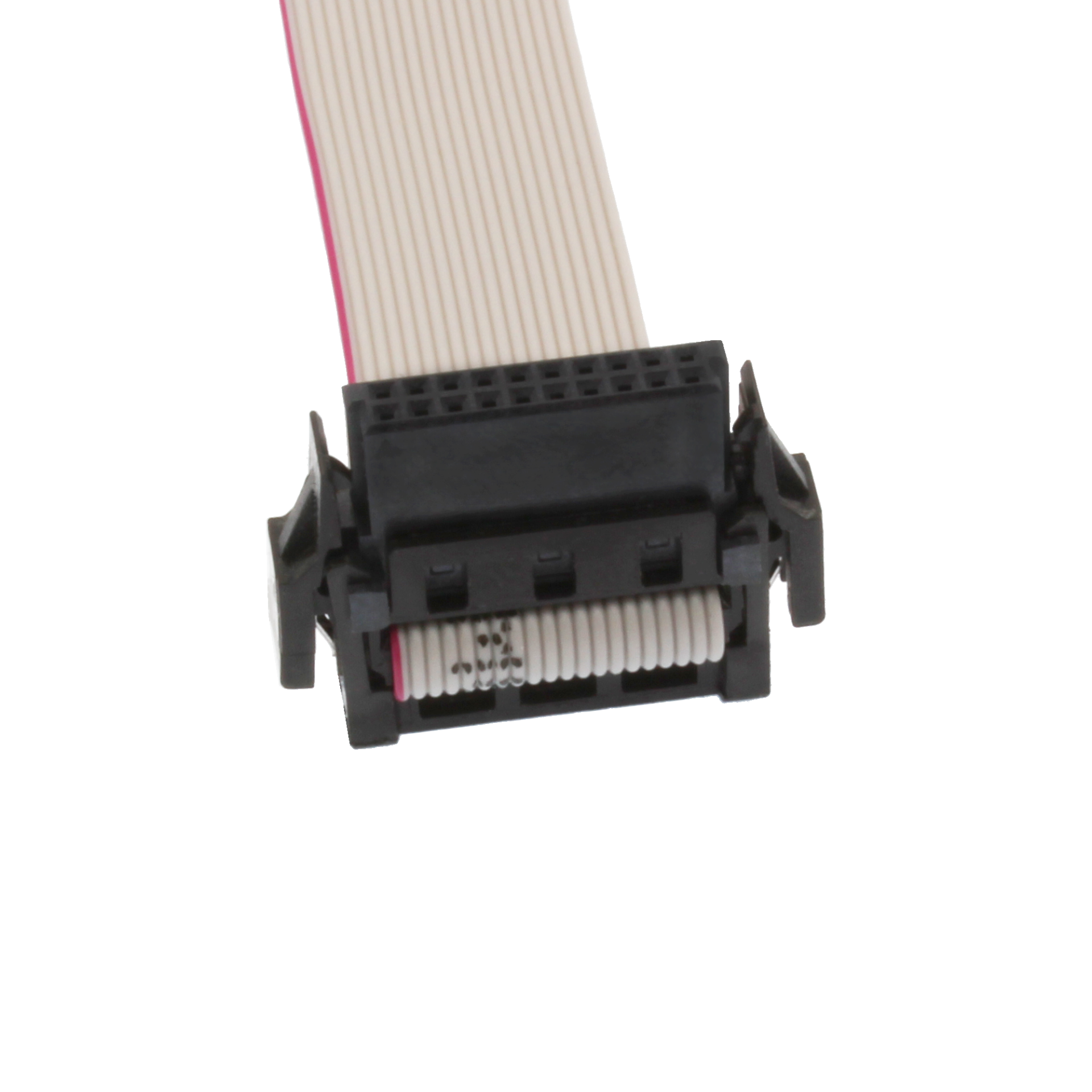

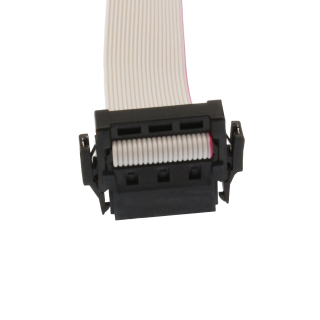

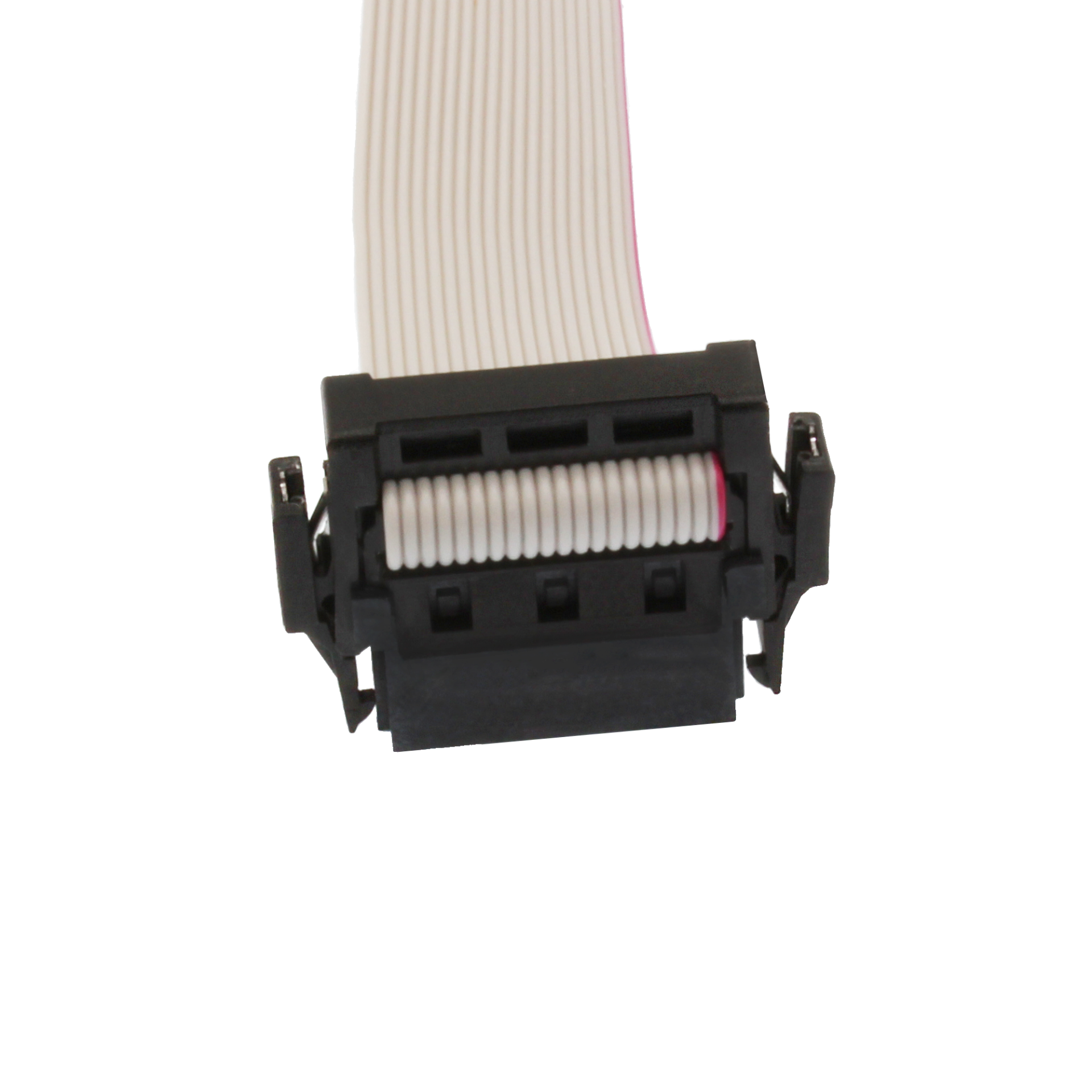

CABSWC02- Female Wire To Board IDC Cable Assembly With Flip

Pitch 1.27mm Dual Row Female Wire To Board IDC Cable Assembly With Flip

  • 12~80 Pin Counts Option

  • Gold Finish on Contact Area, Tin Finish on Termination

  • PVC/ TPE Cable Option

  • Custom Cable Length

  • Mating / Relate Parts:

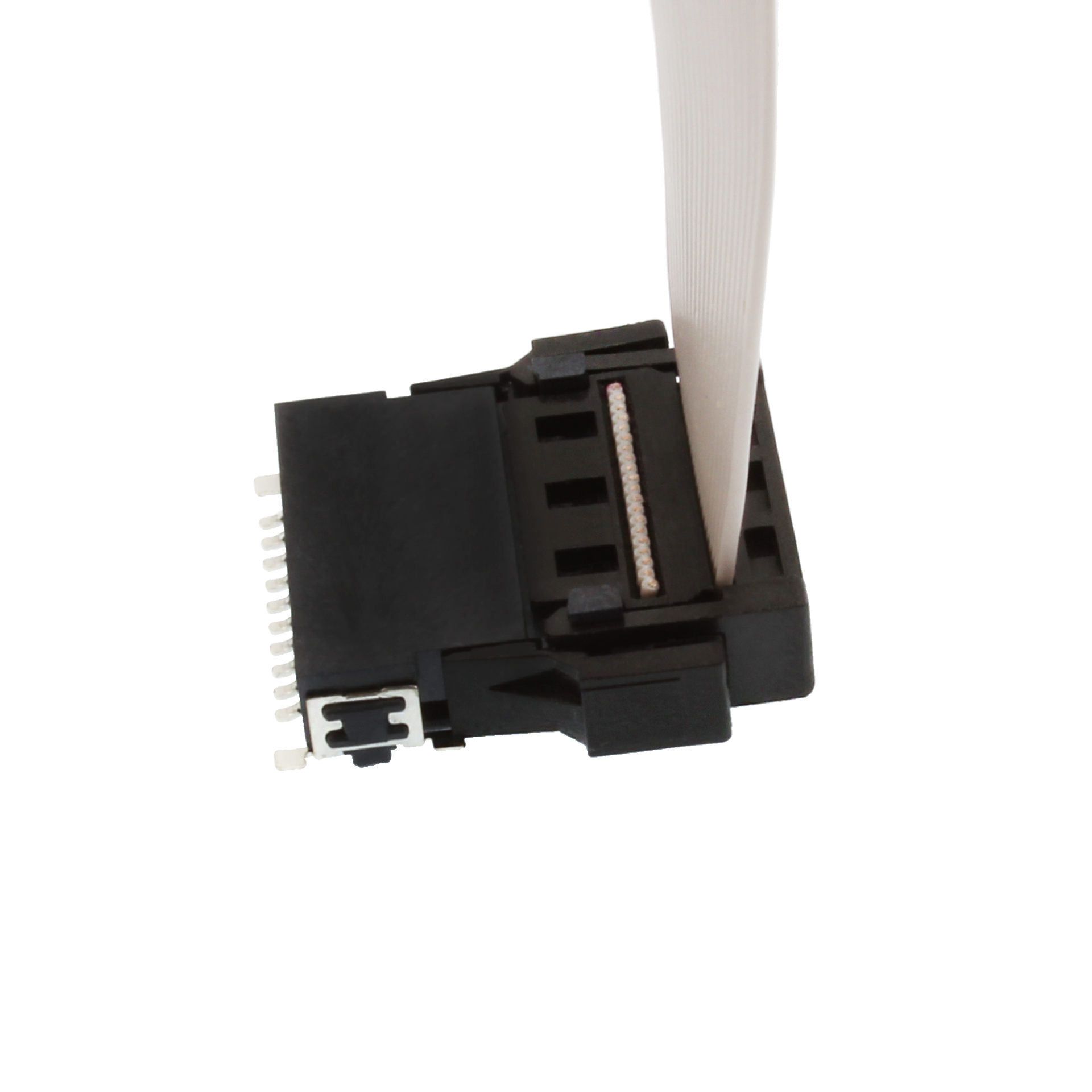

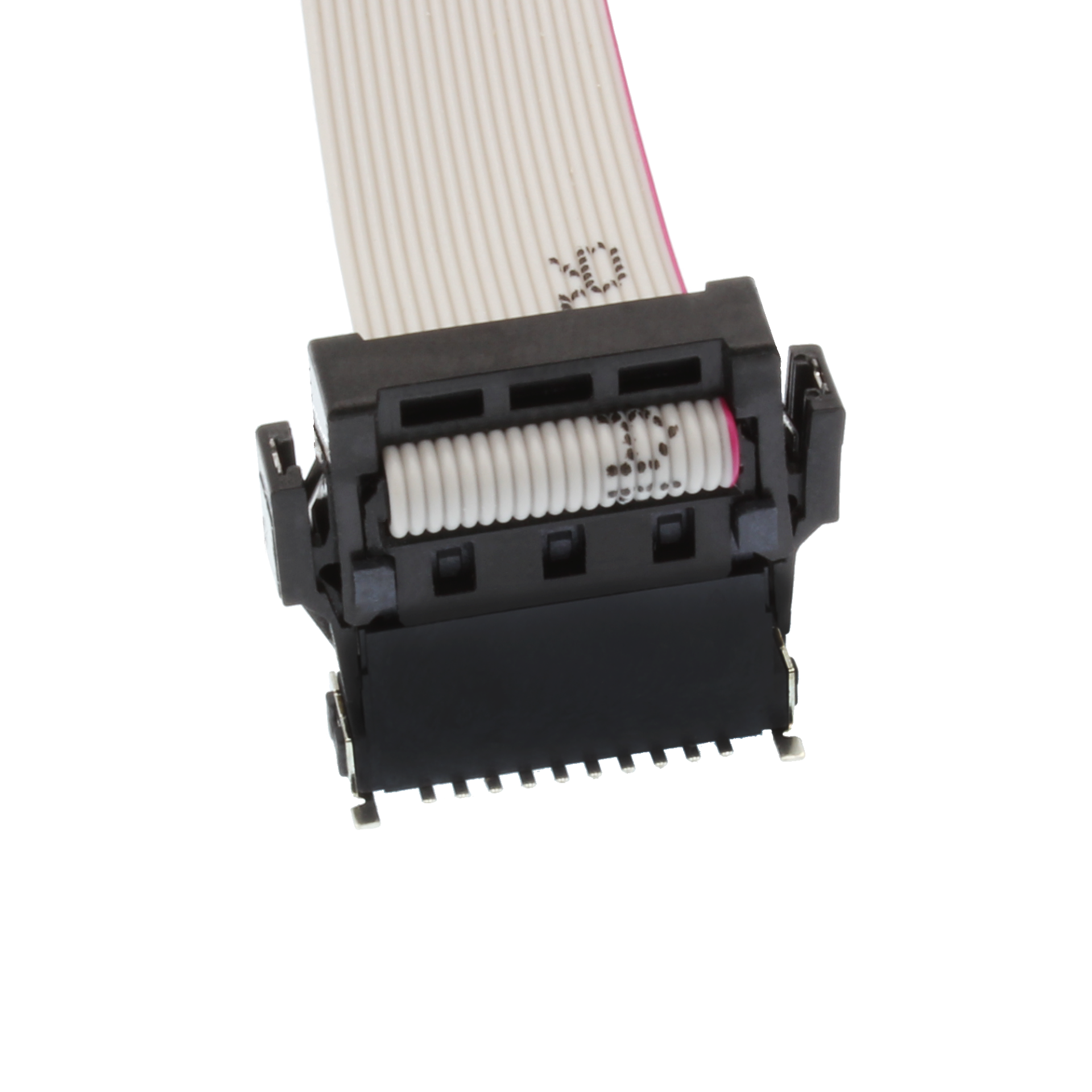

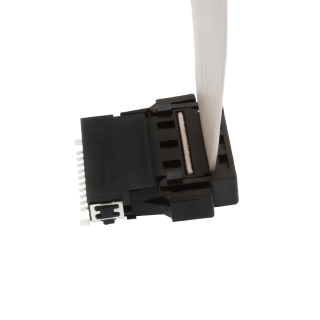

    •   - SMC03 - Horizontal Board to Board Male connector
      - SMC04 - Vertical Board to Board Male connector
    Share：
    SERIES NO.
    CABSWC02-SR
    -
    CONTACT POSITIONS
    -
    CABLE LENGTH (mm)
    -
    CABLE MATERIAL (1: PVC | 2: TPE)
    -
    CONNECTION TYPE
    -
    CONTACT PLATING (600: GF | 605: 5u AU | 630: 30u AU)
    -
    PACKAGE (0: Bag)
    0
    ADD INQUIRY
    DOWNLOAD


    Product
    Characteristics    		 Contact Pitch 1.27mm(0.05")
    Available Pin Counts 12 to 80
    Orientation Cable Assembly
      　
    Mechanical &
    Environmental    		 Operating Temp. -20˚C~+105˚C
    Durability 500 Mating Operations
    Vibration 10 to 2000Hz in 20min.
    4 Hours in each X-Y-Z axis.

    Electrical
    Specifications    		 Current Rating 0.5A Max per Contact
    Voltage Rating 150V AC
    Contact Resistance Initial: 25mΩ Max.
    After Stress:△10mΩ Max.
