HOME PRODUCT 0.8mm Pitch OCP Connector BR- Receptacle BR077- Female 7.7mm Height
PRODUCTS

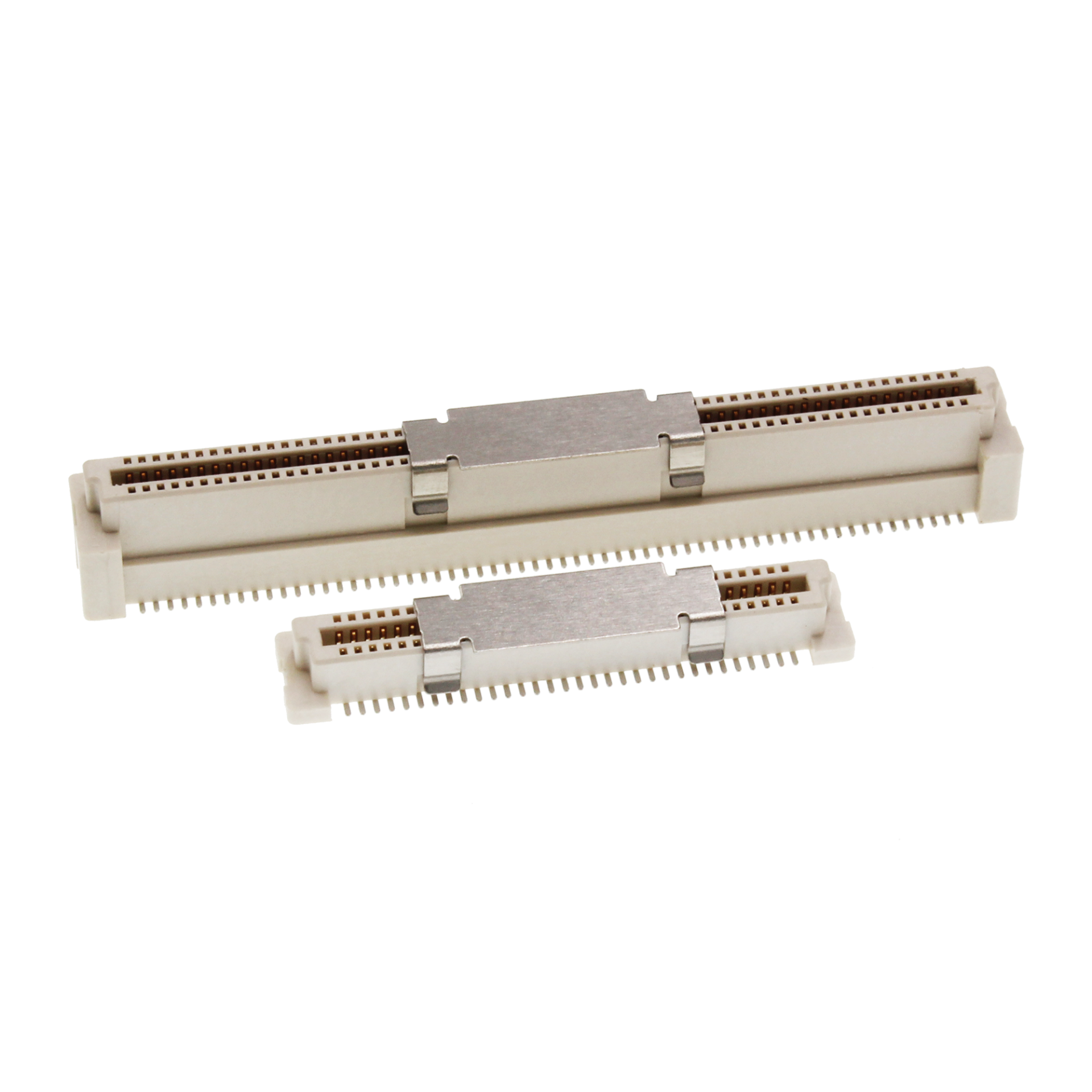

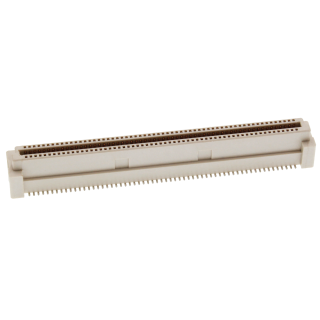

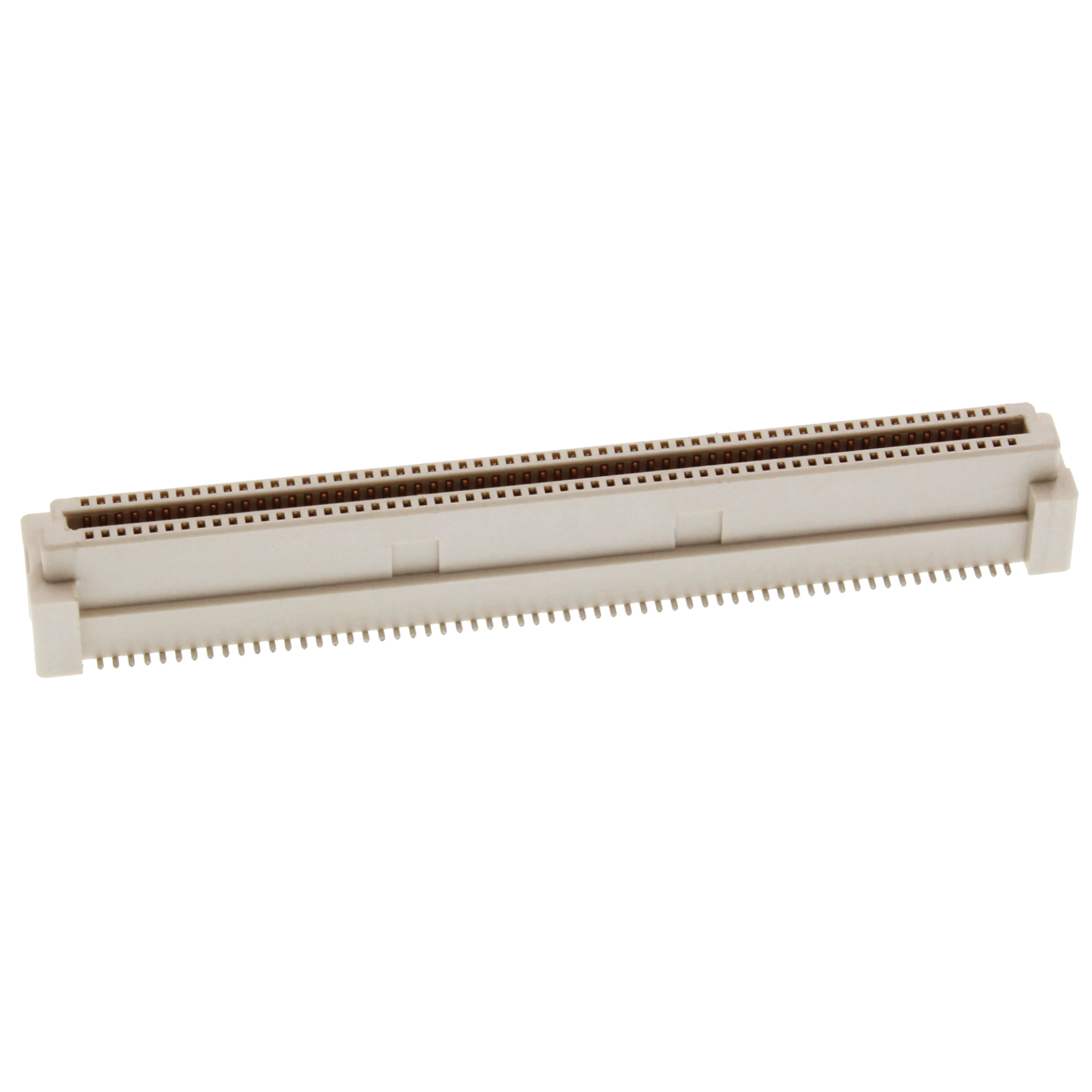

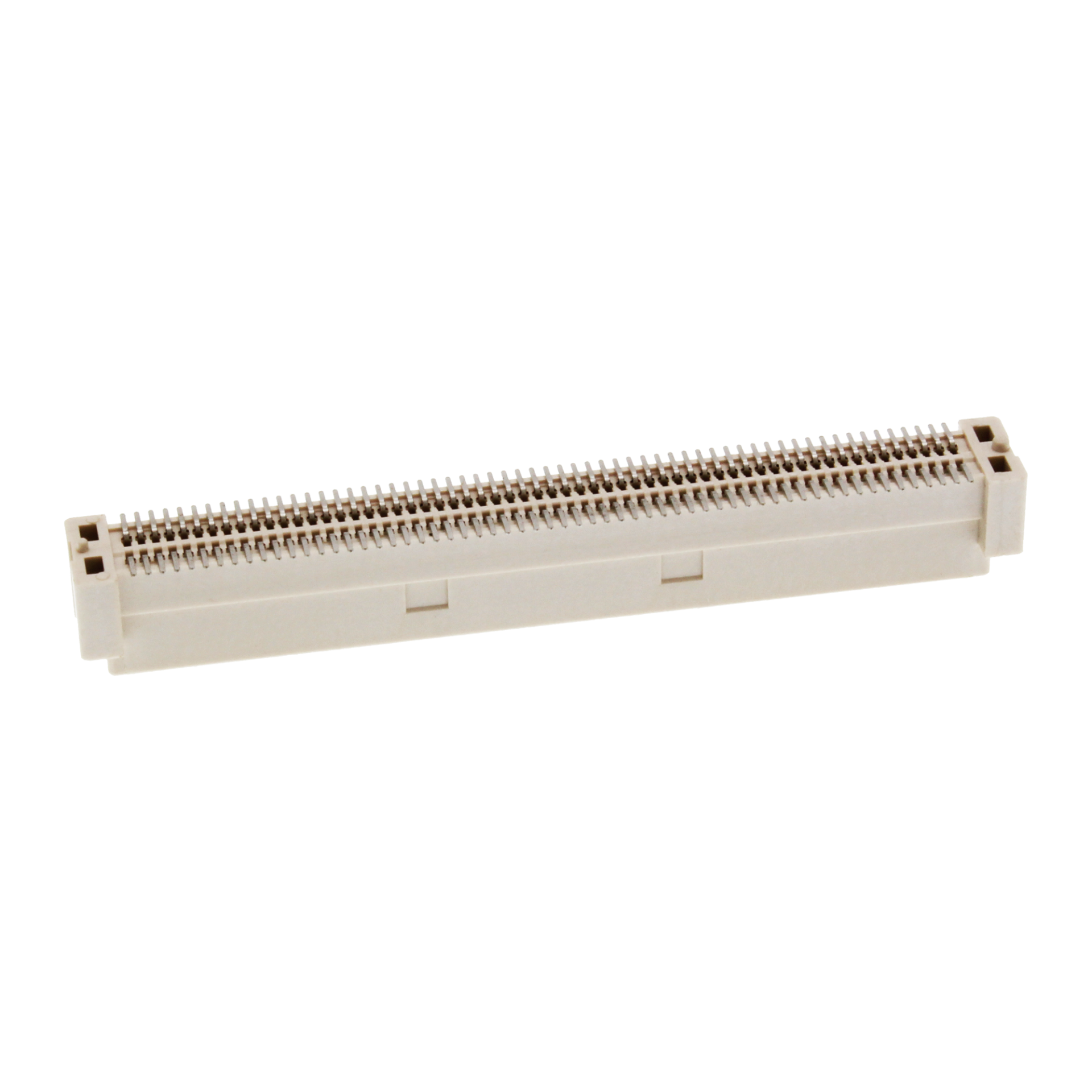

BR077- Female 7.7mm Height

Pitch 0.8mm Female Board To Board 7.7mm OCP Hight Speed Verticle Connector SMT Type

  • 64/ 80/ 120 Pin Counts Option

  • SMT Type

  • Gold Finish on Contact Area, Tin Finish on Termination

  • Tape and Reel package

  • Mating / Relate Parts:

    •   - BP077 – 0.8mm Pitch Vertical Board to Board Male Connector
    Share：
    SERIES NO.
    BR077
    -
    CONTACT POSITIONS (2032: 2x32)
    -
    CONTACT PLATING (G30F1: 8u AU | G20F1: 15u AU | G21F1: 30u AU)
    -
    PACKAGE (3: Tape & Reel)
    3
    -
    CAP (1: With Cap)
    1
    ADD INQUIRY
    DOWNLOAD

    Product
    Characteristics    		 Contact Pitch 0.8mm(0.03")
    Available Pin Counts 64/ 80/ 120
    Orientation Vertical
      　
    Mechanical &
    Environmental    		 Operating Temp. -40˚C~+125˚C
    Durability 100 Mating Operations
    Vibration 10 to 50Hz in 1min.
    2 Hours in each X-Y-Z axis.

    Electrical
    Specifications    		 Current Rating 0.8A Max per Contact
    Voltage Rating 100V AC
    Contact Resistance Initial: 30mΩ Max.
    After Stress:△20mΩ Max.
