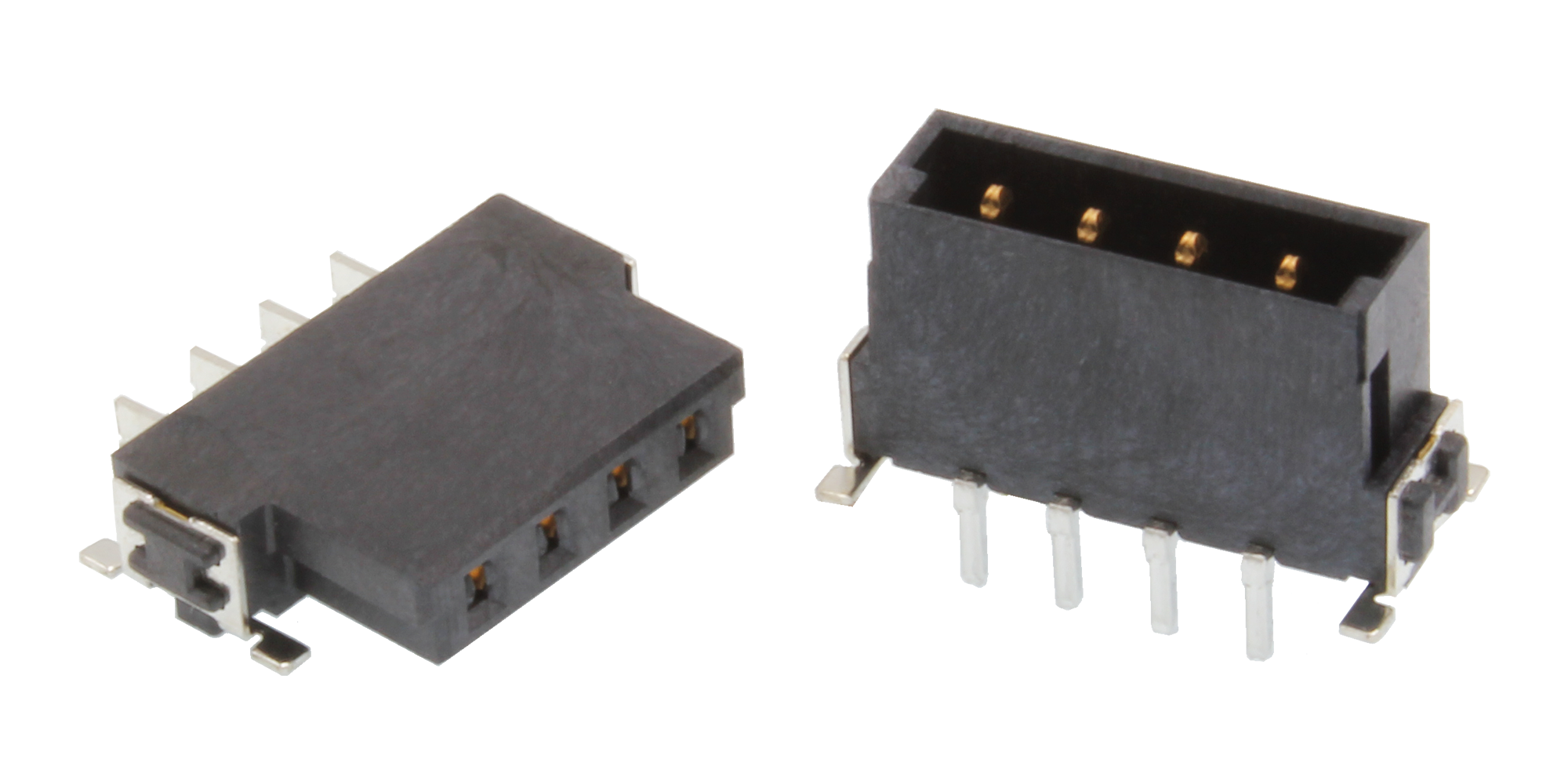

SMC14- Male Vertical SMT Type
Pitch 2.54mm Male Board To Board Vertical Connector SMT Type /THR Type
2~12 Pin Counts Option
Gold Finish on Contact Area, Tin Finish on Termination
Tape and Reel Package
Mating / Relate Parts:
- SMC11 - Horizontal Board to Board Female connector
- SMC12 - Vertical Board to Board Female connector
- SMC11 - Horizontal Board to Board Female connector
- SMC12 - Vertical Board to Board Female connector
SERIES NO.
SMC14D
-
CONTACT POSITIONS
-
CONTACT PLATING (600: GF | 605: 5u AU | 630: 30u AU)
-
PACKAGE (3: Tape & Reel)
3
| Product Characteristics |
Contact Pitch | 2.54mm(0.10") |
| Available Pin Counts | 2 to 12 | |
| Orientation | Vertical | |
| Mechanical & Environmental |
Operating Temp. | -55˚C~+125˚C |
| Durability | 500 Mating Operations | |
| Vibration | 10 to 2000Hz in 20min. 4 Hours in each X-Y-Z axis. |
|
| Electrical Specifications |
Current Rating | 24A Max per Contact |
| Voltage Rating | 180V | |
| Contact Resistance | Initial: 25mΩ Max. After Stress:△10mΩ Max. |
SMC Power
SMC Power 連接器是一款高功率連接解決方案，採用 2.54 mm 間距，專為 18A 至 24A 的高電流傳輸設計。特別適用於需要穩定 24A 輸出效能的應用場景。此系列支援模組化配置，接點數量可彈性選擇自 2 至 12 pin。提供 SMT（表面黏著）與 THR（通孔回流）兩種接點形式，並具備直式與彎式設計，滿足多樣化布局需求，適用於平行（夾層式）板對板、擴展卡、以及主板對子卡等應用。
