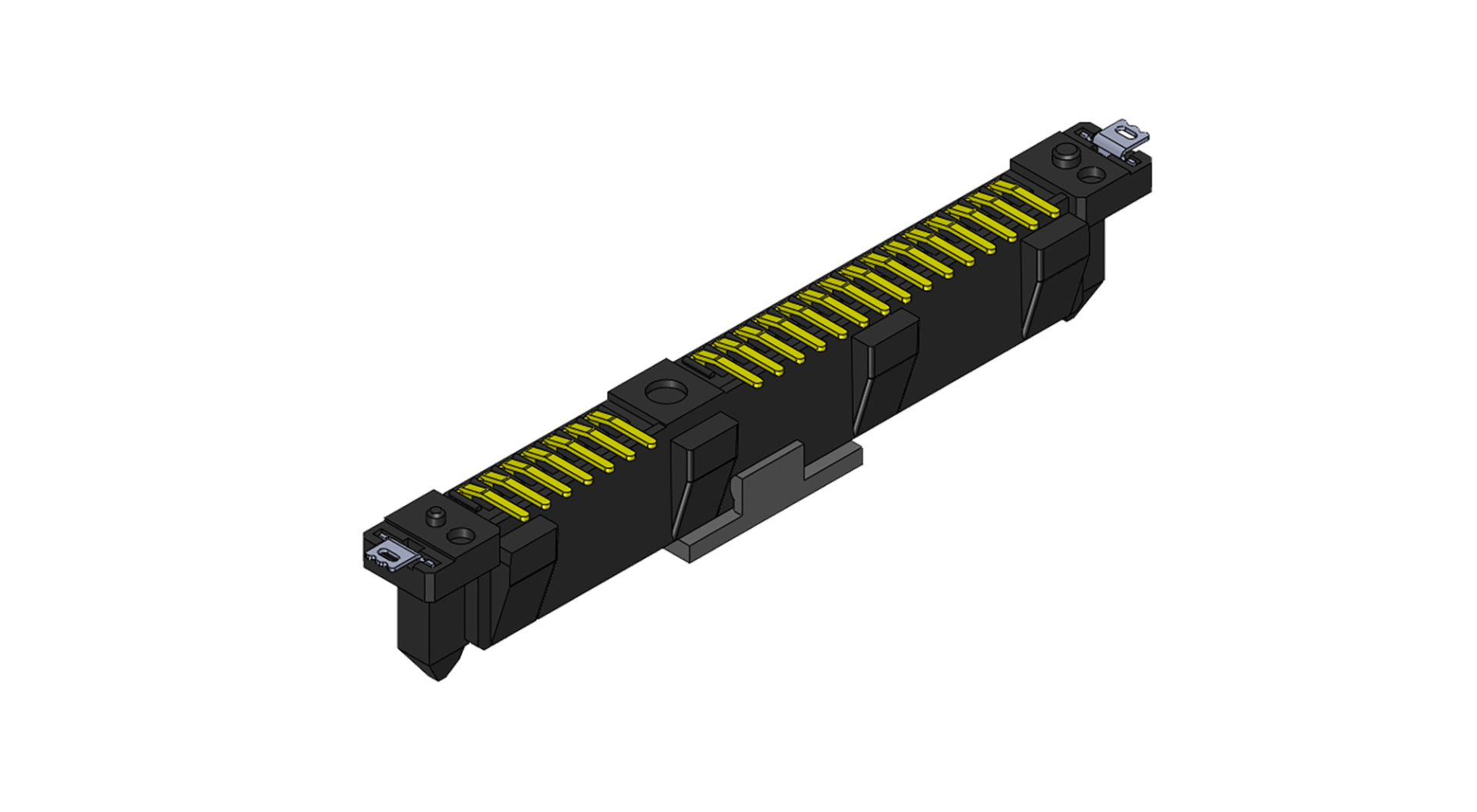

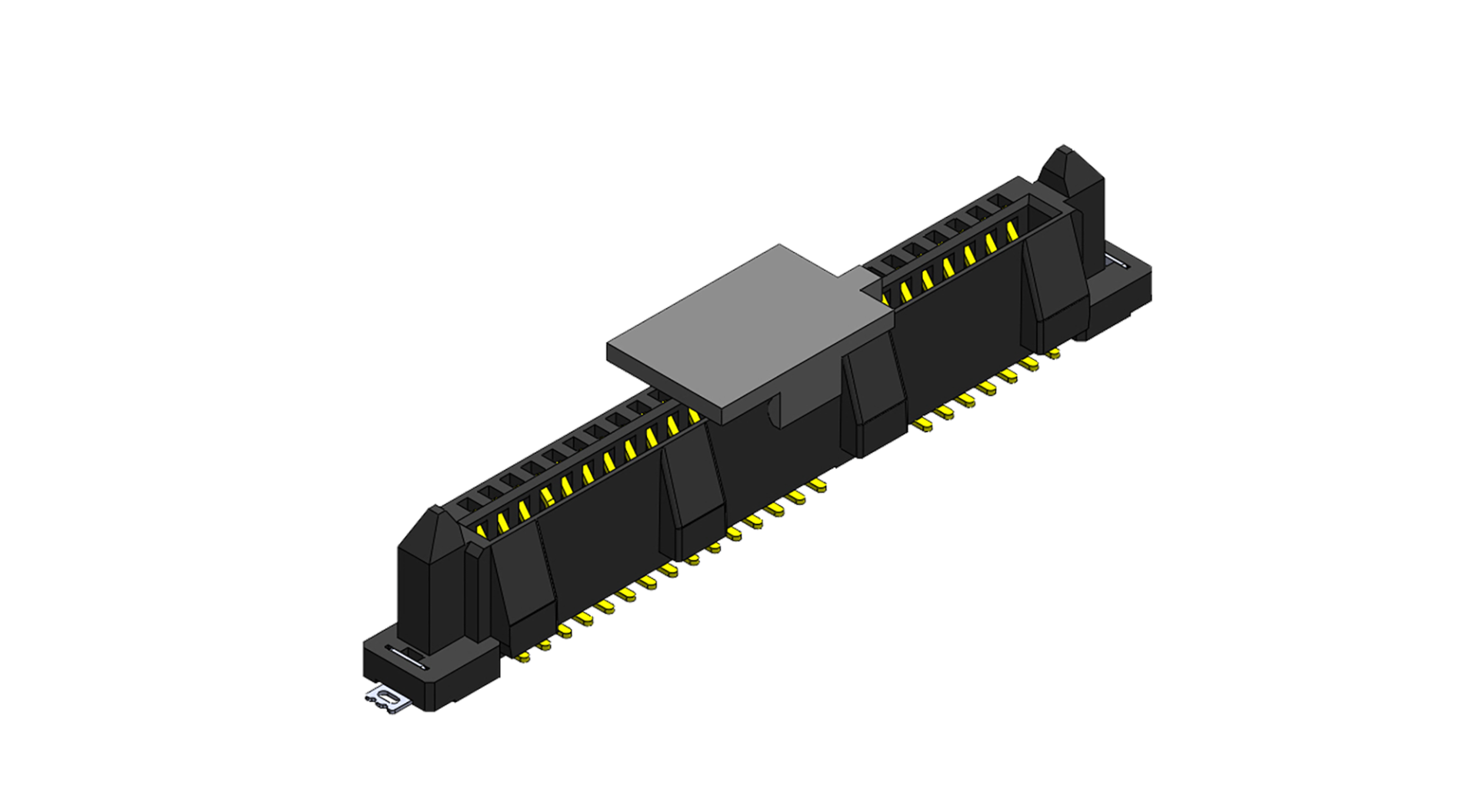

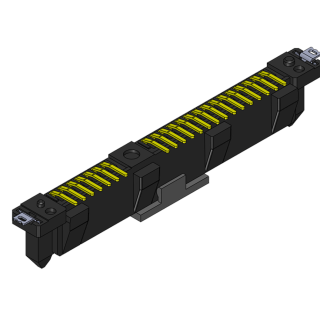

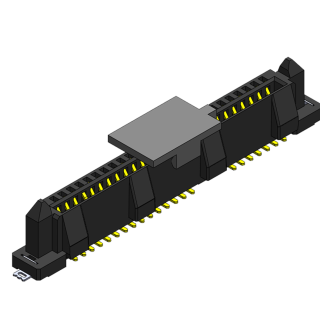

SAC30SN- SATA Combo Male Vertical Low-Profile RIB SMT Type
Pitch 1.27mm SATA 22P Combo Plug Vertical Low-Profile RIB SMT Type
SATA 3.0 (6 Gbit/s)
SMT Type
Vertical
Tape and Reel package
Mating / Relate Parts:
- SATA Receptacle Connectors
- SATA Receptacle Connectors
SERIES NO.
SAC30SN
-
CAP OPTION (C: With Cap | -: Without Cap)
-
CONTACT POSITIONS
022
-
CONTACT PLATING (G6F1: Selective AU 15u)
G6F1
-
PACKAGE (3: Tape & Reel)
3
| Product Characteristics |
Contact Pitch | 1.27mm(0.05") |
| Available Pin Counts | 7+15 | |
| Orientation | Verticle | |
| Mechanical & Environmental |
Operating Temp. | -40˚C~+85˚C |
| Durability | 500 Mating Operations | |
| Vibration | 30 Mins in each X-Y-Z axis. | |
| Electrical Specifications |
Current Rating | 1.5A Max |
| Voltage Rating | 30V DC | |
| Contact Resistance | Initial: 30mΩ Max. After Stress:△15mΩ Max. |
