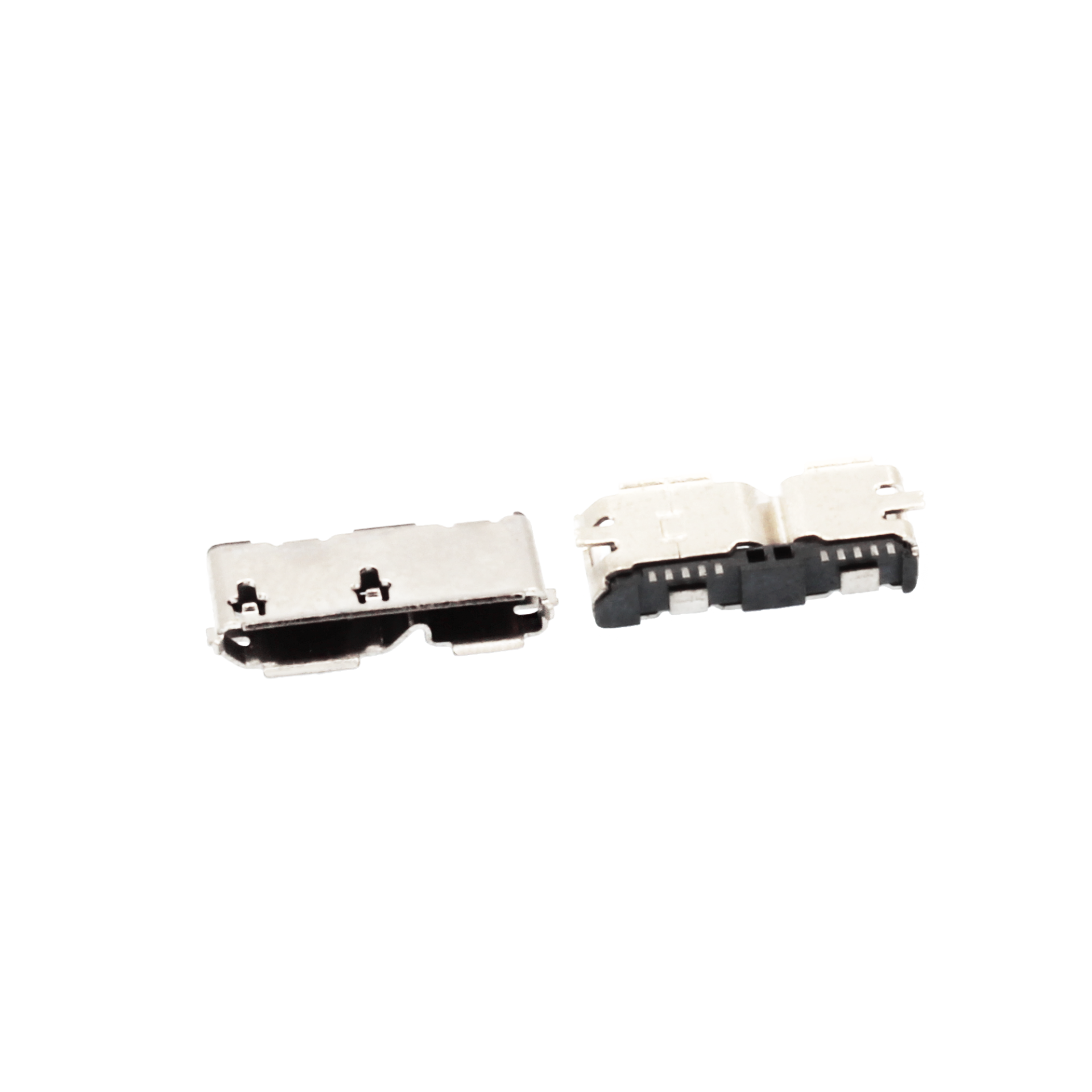

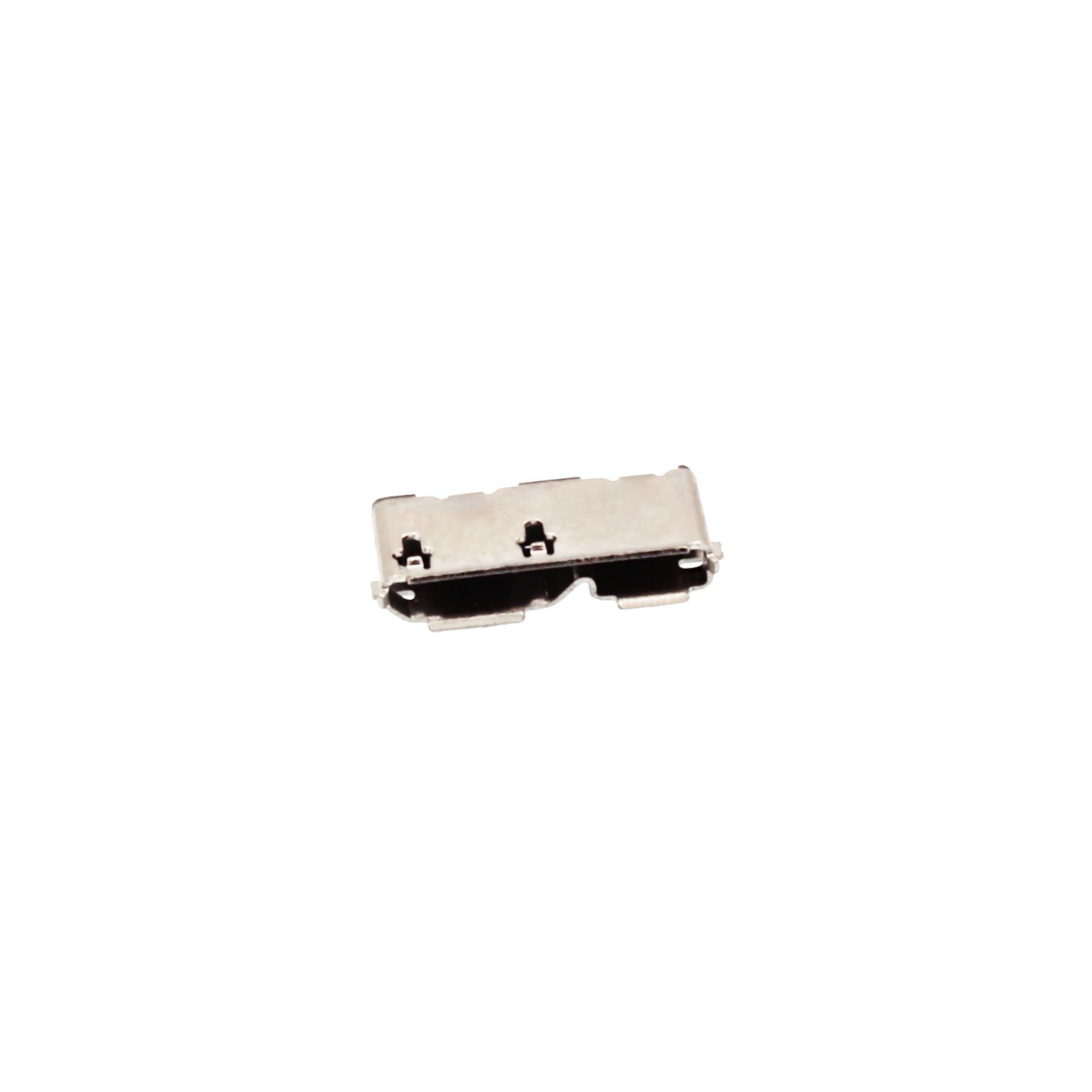

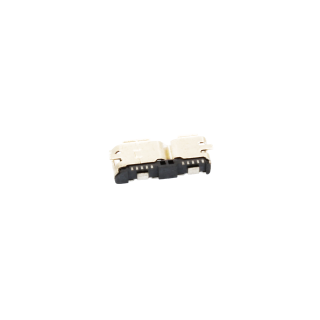

MCB45M- USB3.0 Female Horizontal SMT Type
USB 3.0 MICRO-B Receptacle Horizontal SMT Type
USB3.0 (5 Gbit/s)
SMT Type
Horizontal
10 pin counts
Tape and Reel package
SERIES NO.
MCB45M
-
CONTACT POSITIONS
010
-
CONTACT PLATING (G9: 15u AU)
G9
-
PACKAGE (3: Tape & Reel)
3
| Product Characteristics |
Contact Pitch | 0.65mm(0.03") |
| Available Pin Counts | 10 | |
| Orientation | Horizontal | |
| Mechanical & Environmental |
Operating Temp. | -40˚C~+85˚C |
| Durability | 10000 Mating Operations | |
| Vibration | 15 Mins in each X-Y-Z axis. | |
| Electrical Specifications |
Current Rating | 1.8A Max Pin1 & Pin5 0,25A Max Other Pins |
| Voltage Rating | 30V DC/AC | |
| Contact Resistance | 30mΩ Max. (Pin1 & Pin5) 50mΩ Max. (Others Pins) |
