AS03- 1.27mm Pitch SMT Type 3.81mm Low Profile

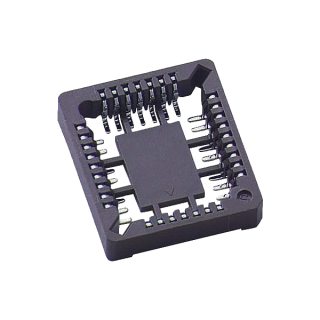

1.27mm Pitch PLCC Socket SMT Type 3.81mm Low Profile
20~84 Pin Counts Option
2 Color Plastic Option
Tube/ Tape&Reel Package
Mating / Relate Parts:
- PLCC/ SOJ Sockets
- PLCC/ SOJ Sockets
SERIES NO.
AS03
-
CONTACT POSITIONS
032
-
CONTACT PLATING (T0: Tin/Lead | TF: Lead Free)
-
PACKAGE (2: Tube | 3: Tape & Reel)
| Product Characteristics |
Contact Pitch | 1.27mm(0.05") |
| Available Pin Counts | 32 | |
| Orientation | ||
| Mechanical & Environmental |
Operating Temp. | -40˚C~+85˚C |
| Durability | ||
| Vibration | ||
| Electrical Specifications |
Current Rating | 1.0A Max |
| Voltage Rating | 250V AC | |
| Contact Resistance | 20mΩ Max. |
