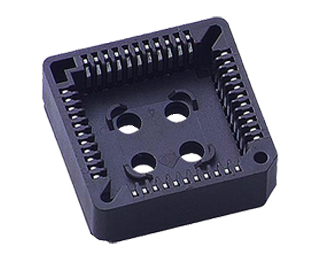

AD01- 2.54mm Pitch DIP Type
2.54mm Pitch PLCC Socket DIP Type
20~84 Pin Counts Option
PPS/PBT Plastic Option
Tube Package
Mating / Relate Parts:
- PLCC/ SOJ Sockets
- PLCC/ SOJ Sockets
SERIES NO.
AD01
-
CONTACT POSITIONS
-
HOUSING MATERIAL (A: PPS | B:PBT)
-
HOUSING COLOR (1: Brown | 2: Black)
-
CONTACT PLATING (T0: Tin/Lead | TF: Lead Free Bright | TF1: Lead Free Matte)
-
PACKAGE (2: Tube)
2
| Product Characteristics |
Contact Pitch | 2.54mm(0.10") |
| Available Pin Counts | 20~84 | |
| Orientation | ||
| Mechanical & Environmental |
Operating Temp. | -40˚C~+85˚C |
| Durability | ||
| Vibration | ||
| Electrical Specifications |
Current Rating | 1.0A Max |
| Voltage Rating | 250V AC | |
| Contact Resistance | 20mΩ Max. |
